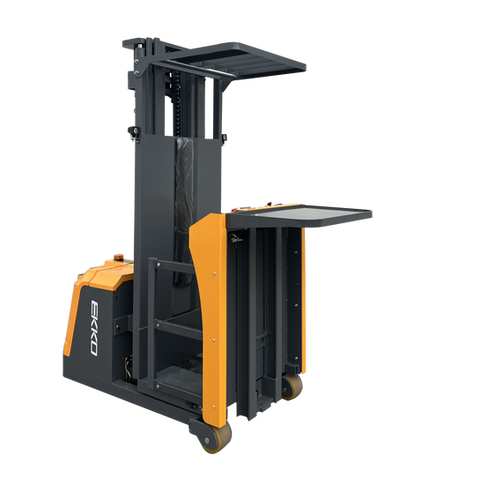

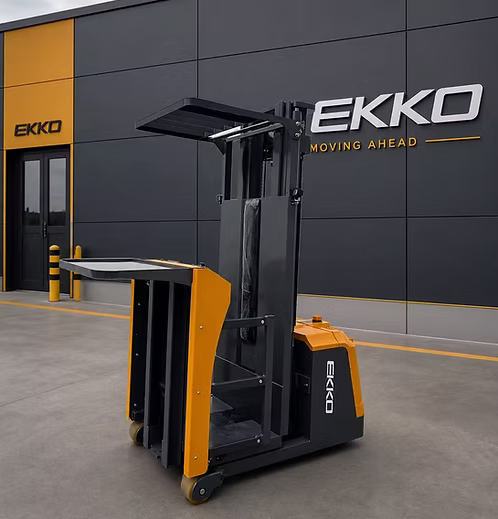

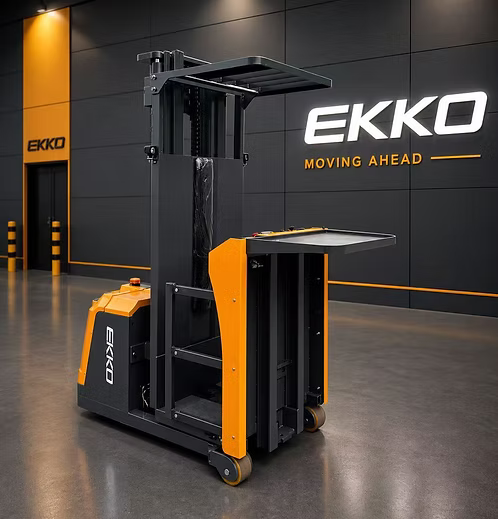

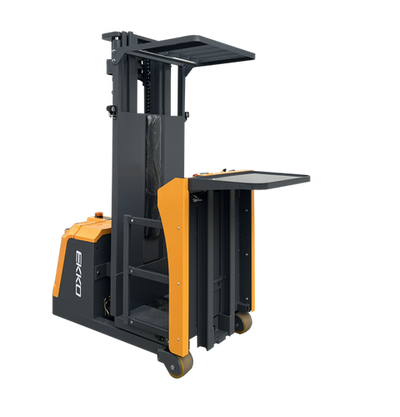

Electric Order Picker - 165" Lift Height

EOP22 Series Electric Order Picker — Precision Picking for Racking, Warehousing, and Manufacturing Environments

The EOP22 Series Electric Order Picker is purpose-built for efficient order picking from racking and storage facilities, manufacturing floors, and warehouses. Designed with high-quality steel and durable components, this order picker delivers reliable and consistent performance under heavy usage, directional changes, and varied terrain conditions. Available in two lift height configurations — 165" and 216" — the EOP22 Series addresses a wide range of vertical reach requirements for industrial operations.

Unlike manual or lead-acid alternatives, the EOP22 Series is powered by a 24V/200Ah Lithium battery paired with an AC Drive Motor and Curtis® Controller, providing responsive, energy-efficient performance. Electronic Power Steering (EPS) and ergonomic handle controls reduce operator fatigue during extended picking cycles, differentiating this machine for high-throughput warehouse environments.

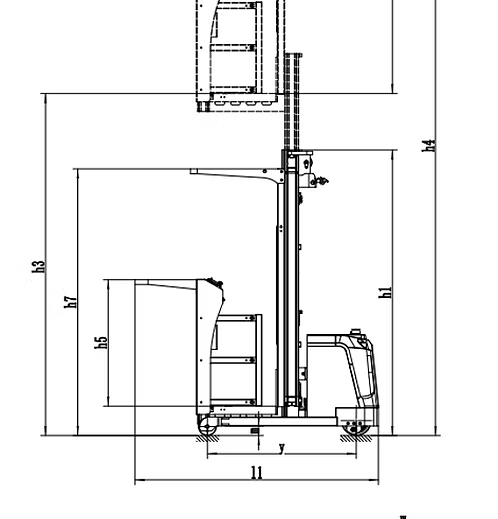

Technical Specifications

Key Features & Benefits

24V / 200Ah Lithium Battery

Lithium battery technology offers longer run times and faster charging compared to lead-acid alternatives, reducing downtime during demanding picking operations. For contractors and warehouse operators running multi-shift environments, this translates to fewer interruptions and more consistent throughput.

AC Drive Motor with Curtis® Controller

The AC Drive Motor paired with a Curtis® Controller delivers smooth, efficient power management across varied warehouse floor conditions. This combination provides precise speed and directional control, which is critical when navigating tight racking aisles and high-traffic areas.

Electronic Power Steering (EPS)

EPS reduces the physical effort required to maneuver the machine, particularly during repetitive directional changes on busy warehouse floors. This feature directly reduces operator fatigue during extended shifts, improving both productivity and safety.

Dual Lift Height Options — 165" and 216"

The availability of two distinct lift height configurations allows buyers to match the machine to their specific racking system without over-specifying. The 216" configuration extends reach to accommodate high-bay storage environments, while the 165" model suits standard racking setups.

Polyurethane Tires

Polyurethane tires are non-marking and well-suited for smooth indoor warehouse floors, providing durability and consistent traction without damaging floor surfaces. This makes the EOP22 suitable for environments where floor condition and cleanliness are a priority.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to minimize strain during repetitive picking tasks. Intuitive controls allow operators to maintain focus on picking accuracy rather than machine operation, supporting efficient workflow in high-volume facilities.

High-Quality Steel Construction

The EOP22 Series is built with high-quality steel to withstand impacts, heavy usage, and varied terrain conditions over the long term. This construction standard ensures the machine holds up in demanding industrial environments where durability directly impacts total cost of ownership.

Common Applications

Racking and Storage Facilities

The EOP22 is designed specifically for picking orders from racking systems, allowing operators to retrieve items stored at height efficiently and safely.

Warehouse Order Fulfillment

In warehouse environments, the EOP22 supports high-volume order picking operations where consistent vertical reach and reliable drive performance are essential to meeting throughput demands.

Manufacturing Floor Parts Retrieval

On manufacturing floors where components and materials are stored in elevated racking, the EOP22 enables operators to retrieve parts quickly without relying on manual ladders or separate lift equipment.

Compatible Materials

• Smooth indoor concrete warehouse floors
• Standard warehouse racking systems (up to 165" or 216" lift height)
• Industrial storage facility flooring
• Manufacturing floor surfaces

Product Documents

• Line Card
