Full Powered Electric Straddle Stacker - German AC Motor with 3,000 lb Capacity at 145.67" Lift Height

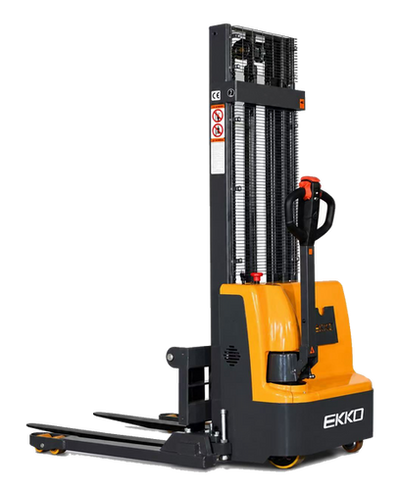

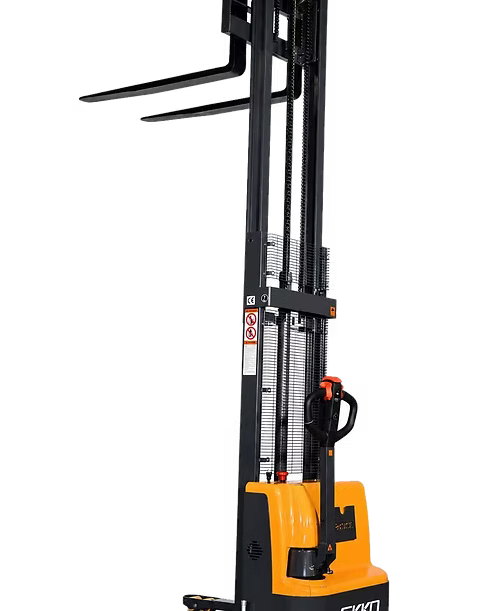

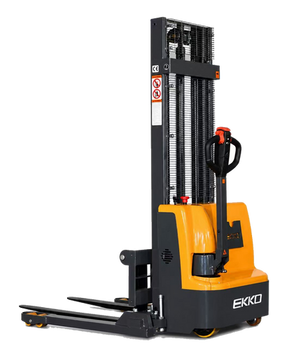

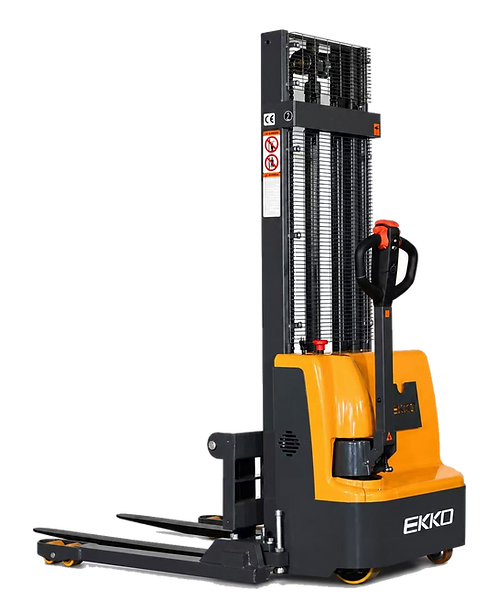

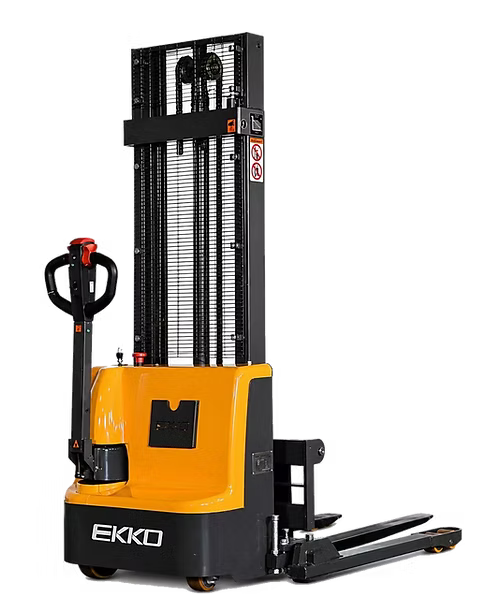

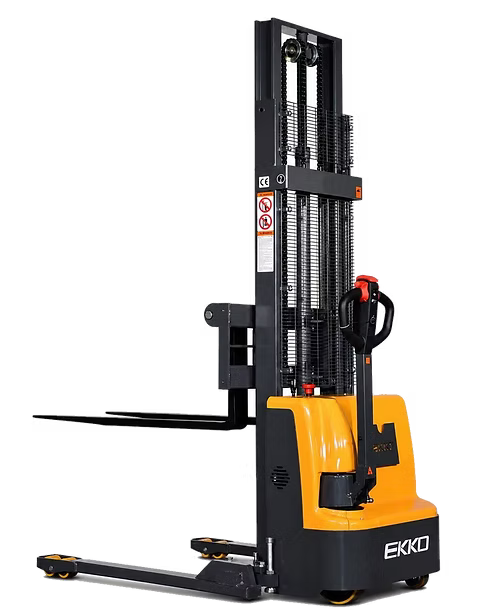

EKKO EB12EA Full Powered Electric Straddle Stacker – 3,000 lb Capacity, 145.67" Lift Height

The EKKO EB12EA is a fully powered electric straddle stacker engineered for demanding material handling environments including loading docks, stock rooms, manufacturing floors, and warehousing operations. With a 3,000 lb load capacity and a raised height of 145.67" (12.13 ft), it delivers the combined functionality of a forklift, reach truck, and walkie stacker in a single machine. Built from high-quality steel with robotic welding, the EB12EA is designed to withstand varied terrain, heavy usage, impact, and frequent directional changes.

Unlike conventional walkie stackers that offer either powered drive or powered lift, the EB12EA provides fully powered drive and lift via a 24V AC 1500W drive motor and a dedicated 24V lift motor, giving operators precise control across a wide range of applications. Adjustable forks and legs add further versatility, allowing the unit to accommodate different pallet sizes and aisle configurations without additional attachments.

Technical Specifications

Key Features & Benefits

Fully Powered Drive & Lift

The EB12EA features both a 24V AC 1500W drive motor and a dedicated 24V lift motor, eliminating the manual pushing required by semi-electric alternatives. For contractors and warehouse teams moving heavy loads frequently throughout a shift, this reduces operator fatigue and maintains consistent productivity across long operating periods.

Curtis Controller

The industry-trusted Curtis Controller governs both drive and lift functions, providing smooth, programmable motor control with reliable performance. Contractors benefit from consistent, predictable handling characteristics that reduce the learning curve for operators and support safe operation in tight spaces.

Adjustable Forks & Legs

Fork width adjusts from 8.3" to 33.5" and straddle legs adjust from 45.7" to 59.1", allowing the EB12EA to accommodate a wide range of pallet dimensions and aisle widths. This flexibility means a single unit can serve multiple applications across a jobsite or facility without reconfiguration downtime.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, structurally sound welds throughout the chassis. This construction approach is engineered to withstand impact, varied terrain, and the directional changes common in active loading dock and warehouse environments.

Internal Charger & Included Battery Pack

The EB12EA ships with two 12V / 120Ah batteries and an integrated internal charger, eliminating the need to source or store separate charging equipment. For contractors and facility operators, this reduces setup time and keeps the charging infrastructure compact and self-contained.

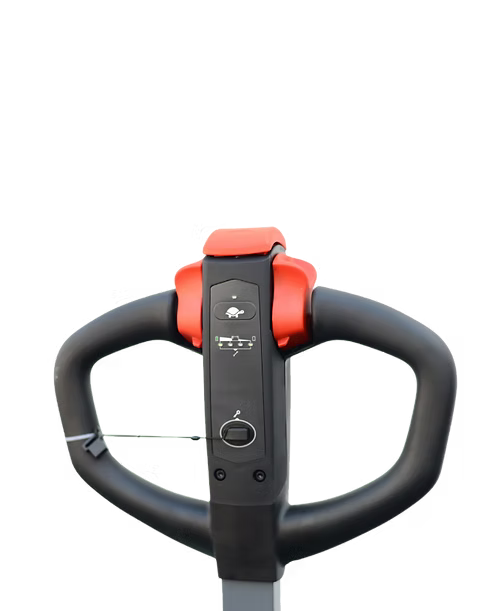

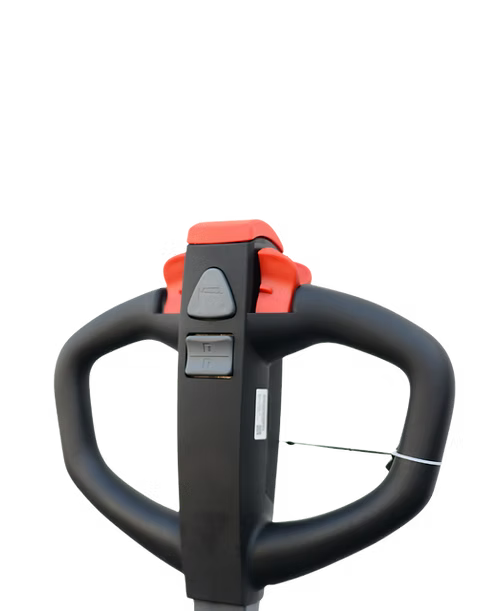

Polyurethane Wheels & Ergonomic Handle

Polyurethane wheels provide durable, floor-friendly traction suited to the smooth and semi-smooth surfaces typical of warehouse floors and loading areas. The ergonomic handle and controls support operator comfort during extended use.

Common Applications

Loading & Unloading Trucks

The 3,000 lb capacity and fully powered drive make the EB12EA well-suited for moving heavy palletized loads on and off delivery trucks at loading docks.

Loading Dock Operations

The adjustable legs and forks allow the unit to navigate standard dock configurations and handle varied pallet sizes efficiently.

Stock Room Management

With a raised height of 145.67" and adjustable fork width, the EB12EA can reach elevated shelving and rack storage in stock room environments.

Manufacturing Floor Material Handling

The machine's powered drive and durable steel construction allow it to operate reliably in active manufacturing floor environments where loads are moved frequently across varying surfaces.

Warehousing & Racking

The combination of 12.13 ft lift height and straddle leg adjustability makes the EB12EA practical for standard warehouse racking systems where vertical storage utilization is a priority.

Compatible Materials

• Standard wooden pallets
• Plastic pallets
• Palletized boxed or crated goods
• Racked warehouse inventory
• Bulk packaged materials on compatible pallet footprints

Frequently Asked Questions

Q: Is the battery included with the EB12EA?
A: Yes. The EB12EA ships with two 12V / 120Ah batteries included.

Q: Does the EB12EA include a charger?
A: Yes. An internal charger is built into the unit, so no external charging equipment is required.

Q: What is the maximum lift height of the EB12EA?
A: The EB12EA raises loads to a maximum height of 145.67" (12.13 ft).

Q: Can the forks and legs be adjusted to fit different pallet sizes?
A: Yes. Fork width is adjustable from 8.3" to 33.5" and straddle legs adjust from 45.7" to 59.1" to accommodate different pallet dimensions and aisle configurations.

Q: What warranty does the EB12EA carry?
A: The EB12EA is covered by a 3-year limited warranty.
