Full Powered Electric Straddle Stacker EB14C-138" Lift Height

EKKO EB14C-138 Full Powered Electric Straddle Stacker — 3,000 lb Capacity at 138" Lift Height

The EKKO EB14C-138 is a fully powered electric straddle stacker engineered to combine the versatility of a forklift, reach truck, and walkie stacker in a single machine. With a 3,000 lb load capacity and a raised height of 138" (11.5 ft.), it is built for contractors and warehouse operators who need reliable, multi-application material handling. It is ideally suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing environments.

Unlike semi-electric or manual-drive alternatives, the EB14C-138 features full electric drive and lift powered by a 24V/85Ah battery with a Curtis Instrument Controller, delivering consistent performance across demanding terrain and directional changes. Its dual damping drive system and ergonomic handle set it apart from standard walkie stackers by enhancing handling performance, operational efficiency, and operator comfort.

Technical Specifications

Key Features & Benefits

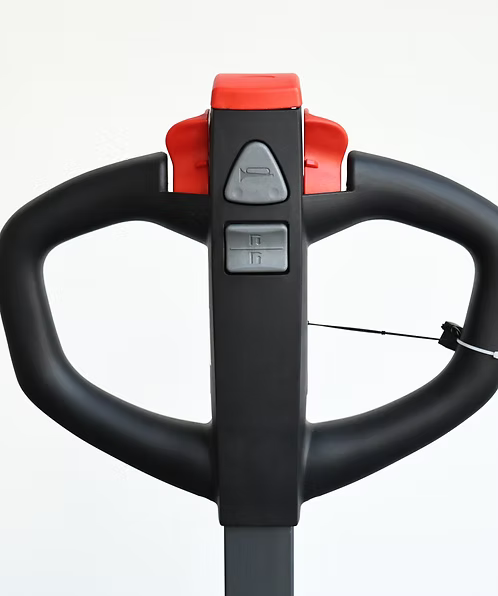

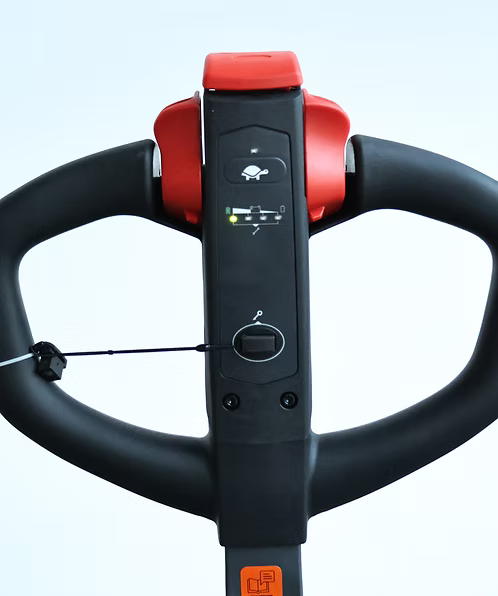

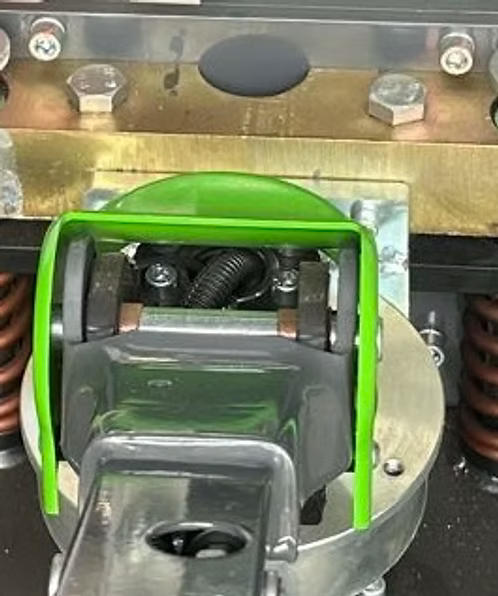

Dual Damping Drive System

The dual damping drive system enhances handling performance, operational efficiency, and operator comfort during extended use. For contractors navigating uneven floors or frequent directional changes, this system absorbs impact and reduces fatigue, allowing for more consistent and confident operation.

Curtis Instrument Controller with DC Drive Motor

The Curtis Instrument Controller is a proven, industry-standard component that provides precise speed and power management for the DC drive motor. This combination delivers reliable, controllable performance across a range of load weights and operating conditions.

Adjustable Forks and Legs

Forks adjust from 8.7" to 32.1" and legs adjust from 35.4" to 51.2", providing the flexibility to handle pallets and loads of varying widths without changing equipment. This adaptability makes the EB14C-138 a practical single-machine solution across multiple job site configurations.

138" (11.5 ft.) Lift Height

A raised height of 138" allows operators to reach high-bay racking and elevated storage positions that standard low-lift equipment cannot access. This is particularly valuable in warehousing and stock room environments where vertical storage space is critical.

High-Quality Steel Construction

Built from high-quality steel, the EB14C-138 is designed to withstand demanding usage, impact, and directional changes encountered in construction supply, manufacturing, and warehousing applications. Steel construction supports long-term durability without compromising structural integrity under full rated loads.

Polyurethane Wheels

Polyurethane wheels provide a durable, non-marking rolling surface suited for smooth warehouse floors and loading dock surfaces. They offer a balance of traction and floor protection that is important in environments where floor condition matters.

Common Applications

Loading and Unloading Trucks

The EB14C-138's full electric drive and 3,000 lb capacity make it well-suited for moving heavy palletized loads on and off delivery trucks at loading docks.

Loading Dock Operations

Its adjustable legs and forks allow the machine to accommodate different pallet sizes and dock configurations, streamlining throughput at loading dock areas.

Stock Room Management

The 138" lift height enables operators to stock and retrieve materials from elevated shelving in stock rooms without the need for a full-size forklift.

Manufacturing Floor Material Handling

On manufacturing floors where terrain and directional changes are frequent, the dual damping drive system and durable steel construction allow the EB14C-138 to operate with confidence and assurance.

Warehousing and High-Bay Racking

The combination of 11.5 ft. lift height, adjustable forks, and full electric drive makes the EB14C-138 a capable tool for placing and retrieving pallets in high-bay warehouse racking systems.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized construction materials
• Smooth concrete warehouse floors
• Loading dock surfaces

Frequently Asked Questions

Q: What is the maximum lift height of the EB14C-138?
A: The EB14C-138 raises loads to a maximum height of 138" (11.5 ft.).

Q: What battery does the EB14C-138 use?
A: It is powered by a 24V / 85Ah lead acid battery with an internal charger.

Q: Can the fork width be adjusted to fit different pallet sizes?
A: Yes. The forks adjust from 8.7" to 32.1" and the straddle legs adjust from 35.4" to 51.2" to accommodate a range of pallet widths.

Q: How does the EB14C-138 differ from a semi-electric straddle stacker?
A: The EB14C-138 is fully powered — both the lift and drive functions are electric — whereas semi-electric models such as the EA15A series use powered lift with manual drive.

Q: What type of controller does the EB14C-138 use?
A: It uses a Curtis Instrument Controller, a proven industry-standard controller for electric material handling equipment.
