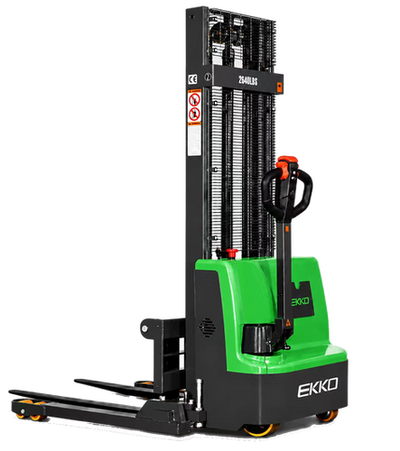

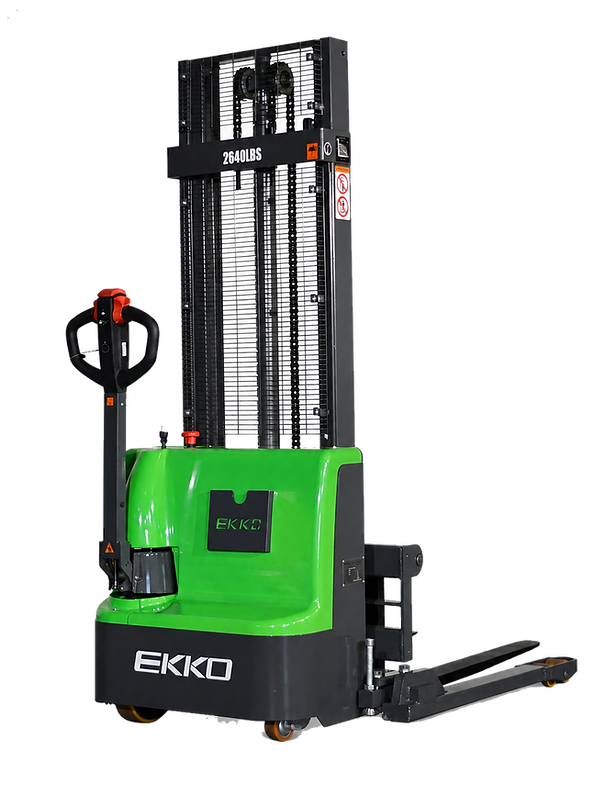

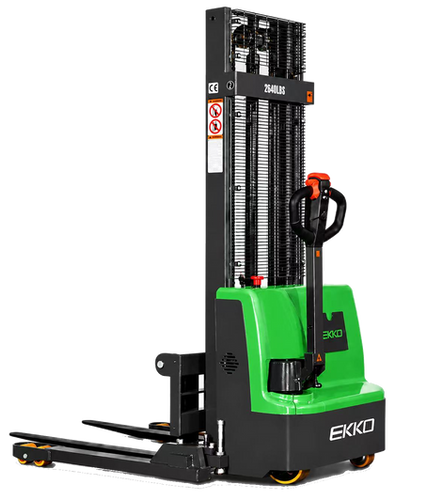

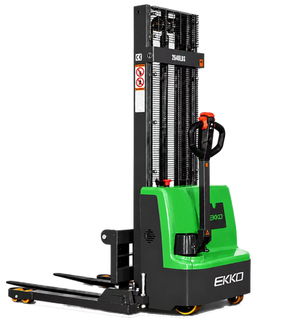

Lithium Iron Phosphate Electric Straddle Stacker - 2640 lb Capacity with 72" Low-Profile Mast

EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker — 2640 lb Capacity with 72" Low-Profile Mast

The EKKO EB12E-98Li is a 24V Lithium Iron Phosphate electric straddle stacker designed for contractors and trades professionals who need the combined versatility of a forklift, reach truck, and walkie stacker in a single machine. With a lowered mast height of just 72", it passes through standard doorways without modification, making it equally suited to indoor stockrooms, manufacturing floors, and warehouse environments. It handles a 2,640 lb load capacity with a raised height of 98", covering the majority of loading, unloading, and material staging tasks on a jobsite or distribution floor.

Unlike conventional lead-acid powered stackers, the EB12E-98Li uses a 24V / 60Ah Lithium Iron Phosphate battery, eliminating the maintenance burden of watering and equalizing that comes with flooded lead-acid cells. Adjustable forks (8.3"–33.5") and adjustable legs (45.7"–59.1") give operators the flexibility to work with a wide range of pallet sizes and load configurations without swapping out attachments.

Technical Specifications

Key Features & Benefits

Lithium Iron Phosphate Battery

The 24V / 60Ah LiFePO4 battery delivers consistent power output throughout the discharge cycle and requires no watering, equalizing, or ventilated charging area the way flooded lead-acid batteries do. For contractors running tight schedules, this translates directly to less downtime and lower ongoing maintenance cost.

72" Low-Profile Lowered Mast

The 72" lowered mast height allows the machine to travel through standard interior doorways without the need for structural modifications to the building. This is a critical advantage when moving materials between bays, stockrooms, or loading docks in existing facilities.

Curtis Instrument Controller

The Curtis Instrument controller is an industry-recognized drive controller used across the EKKO commercial lift line, providing precise speed and lift control. Contractors benefit from consistent, predictable machine response during load placement in tight or congested areas.

Adjustable Forks and Legs

Forks adjust from 8.3" to 33.5" and straddle legs adjust from 45.7" to 59.1", accommodating a broad range of pallet widths and load configurations without requiring a different machine. This flexibility reduces the number of pieces of equipment needed on a job.

Robotic-Welded Steel Construction

The frame is manufactured from high-quality steel using robotic welding techniques, which produces consistent, high-strength weld joints throughout the structure. This level of construction quality is designed to withstand terrain variation, repeated directional changes, and the impact loads typical of active job sites.

Ergonomic Handle and Controls

The machine is equipped with ergonomic handle and controls, reducing operator fatigue during extended use on manufacturing floors or warehousing environments. Comfortable, intuitive controls also reduce the learning curve for new operators.

Polyurethane Wheels

Polyurethane wheels provide a balance of load-bearing capacity and floor protection, making them appropriate for finished concrete and other interior surfaces common in warehouses and stockrooms. They also offer durability against the wear demands of continuous commercial use.

Common Applications

Loading and Unloading Trucks

With a 2,640 lb capacity and 98" raised height, the EB12E-98Li handles standard truck bed loading and unloading tasks without requiring a full sit-down counterbalanced forklift.

Loading Dock Operations

The machine's compact footprint and low-profile mast make it well-suited for navigating loading dock areas where ceiling height and aisle width are limited.

Stockroom Material Handling

Adjustable forks and legs allow operators to work with a variety of pallet and rack configurations found in stockroom environments, improving storage density and retrieval efficiency.

Manufacturing Floor Material Movement

The electric drive and polyurethane wheels make the EB12E-98Li appropriate for use on manufacturing floors where noise, emissions, and floor damage are concerns.

Warehousing and Rack Loading

A raised height of 98" covers lower-tier rack positions common in warehousing operations, and the walkie straddle stacker configuration allows precise placement without the turning radius requirements of a full forklift.

Compatible Materials

• Standard wood and plastic pallets
• Wide-span pallets (accommodated via adjustable forks and legs)
• Finished concrete flooring (polyurethane wheels)
• Interior hard surface floors in warehouses, stockrooms, and manufacturing facilities

Frequently Asked Questions

Q: Can this stacker pass through a standard interior doorway?
A: Yes. The lowered mast height is 72", which is designed to fit under standard doorways, making it practical for moving between rooms or bays in existing buildings.

Q: What type of battery does the EB12E-98Li use?
A: It uses a 24V / 60Ah Lithium Iron Phosphate (LiFePO4) battery, which does not require watering or equalization charging like flooded lead-acid batteries.

Q: What is the maximum load this machine can handle?
A: The rated load capacity is 2,640 lb.

Q: What warranty is included?
A: The EB12E-98Li comes with a 3 Year Limited Warranty.
