Order Picker - Auxiliary Lift · 165" Lift Height

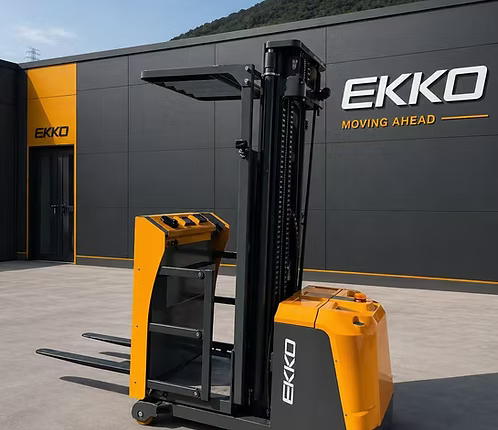

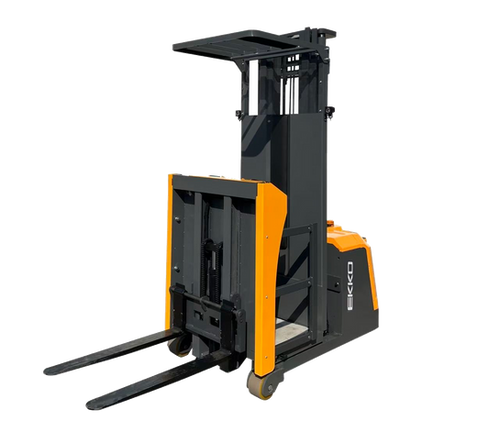

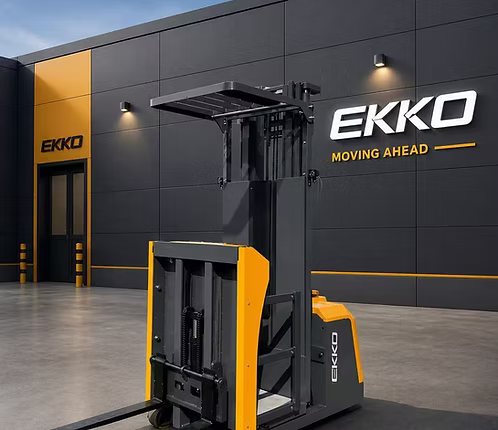

EOPL150 Series Order Picker — High-Reach Electric Order Picking for Demanding Warehouse Environments

The EOPL150 Series Order Picker is a purpose-built electric material handling machine designed to efficiently pick orders from racking and storage facilities, manufacturing floors, and warehouses. Built with high-quality steel and durable components, it is engineered to withstand various terrains, heavy usage, impacts, and directional changes. With a 1,500 lb load capacity and available raised heights of 165" or 216", it delivers the vertical reach required for high-density storage operations.

Unlike lead-acid alternatives, the EOPL150 Series is equipped with a 24V/200Ah Lithium battery, providing consistent power output and reduced maintenance demands. The combination of an AC Drive Motor, Curtis® Controller, and Electronic Power Steering (EPS) sets this unit apart for operators requiring precision control and reliable performance across long shifts in industrial environments.

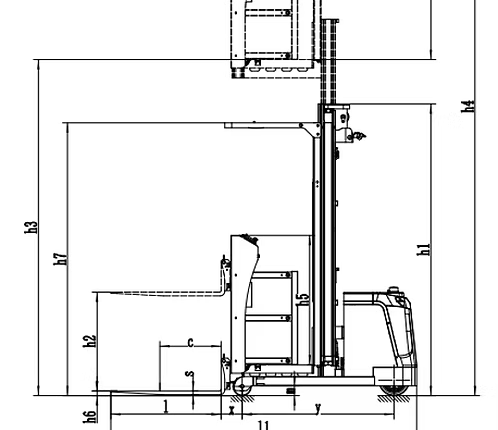

Technical Specifications

Key Features & Benefits

24V / 200Ah Lithium Battery

The lithium battery delivers consistent power throughout the charge cycle, unlike lead-acid batteries that lose voltage as they discharge. This translates to predictable performance across full shifts without the maintenance overhead of watering or equalizing charges.

AC Drive Motor with Curtis® Controller

The AC Drive Motor paired with a Curtis® Controller provides smooth, responsive acceleration and regenerative braking capabilities. This combination is well-proven in industrial material handling applications and supports reliable long-term operation.

Electronic Power Steering (EPS)

EPS reduces operator fatigue during extended picking cycles by minimizing the physical effort required to steer, especially during tight aisle maneuvers. Precise steering control also contributes to safer operation around racking and personnel.

Adjustable Forks with Auxiliary Fork

The adjustable forks accommodate varying load sizes, while the auxiliary fork provides additional support for picking operations. This flexibility allows operators to handle a wider range of SKUs and load configurations without equipment changes.

Polyurethane Tires

Polyurethane tires are well-suited for smooth indoor warehouse floors, offering low rolling resistance and durability without marking surfaces. They are maintenance-free compared to pneumatic alternatives, reducing downtime in production environments.

Ergonomic Handle and Controls

The ergonomic handle and controls are designed to reduce operator strain during repetitive picking tasks. Comfortable, well-positioned controls support operator efficiency and safety during high-volume order fulfillment operations.

Common Applications

Warehouse Order Picking

Designed specifically for picking orders from racking systems, the EOPL150 Series enables operators to access elevated storage positions up to 165" or 216" with a 1,500 lb capacity.

Storage Facility Operations

Well-suited for storage facilities requiring consistent vertical access across multiple rack levels, reducing the need for manual climbing or secondary equipment.

Manufacturing Floor Material Handling

The durable steel construction and polyurethane tires make this unit capable of performing reliably on manufacturing floors where heavy usage, impacts, and directional changes are routine.

High-Density Racking Environments

The 216" raised height variant (EOPL150-216LI) is specifically suited for high-density racking configurations where maximizing vertical storage utilization is a priority.

Compatible Materials

• Smooth concrete warehouse floors
• Indoor manufacturing floor surfaces
• Standard pallet racking systems
• Storage facility shelving and racking
