Semi-Electric Straddle Stacker with 118" Lift Height

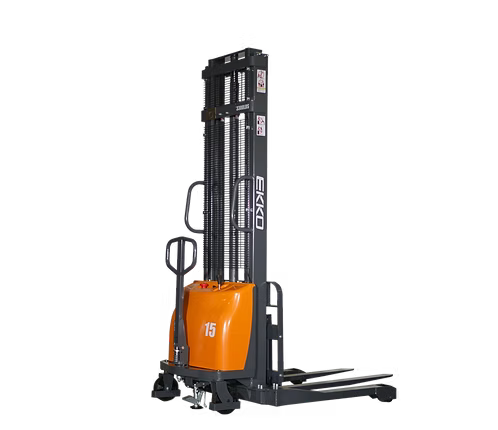

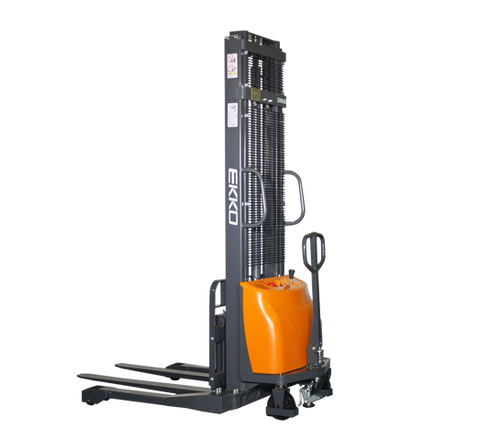

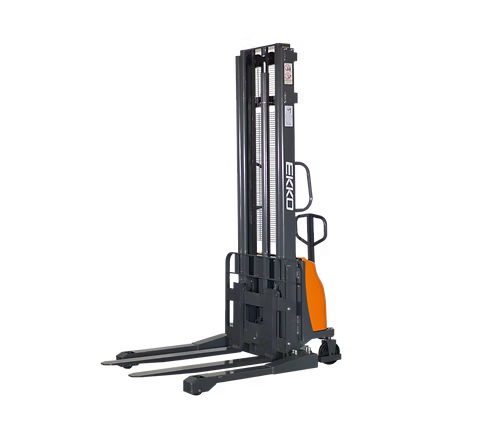

EKKO EA15A Semi-Electric Straddle Stacker — 3,300 lb Capacity with 118" Lift Height

The EKKO EA15A Semi-Electric Straddle Stacker combines the versatility of a forklift with the maneuverability of a pallet stacker, delivering 3,300 lbs of lift capacity and a maximum lift height of 118 inches (9.83 ft). It is designed for contractors and trades professionals operating in loading docks, stock rooms, manufacturing floors, and warehousing environments. Power lifting is handled electrically while drive is manual, making it a cost-effective solution for facilities that need reliable vertical material handling without full-electric drive overhead.

Unlike fully manual stackers, the EA15A's electric lift motor eliminates the physical strain of raising heavy loads, while its adjustable forks (8.66–32 in) and adjustable legs (35–51 in) allow it to accommodate a wide range of pallet sizes and load configurations. The included 12V/120AH lead acid battery and on-board 12V/15A charger mean no separate charging infrastructure is required out of the box.

Technical Specifications

Key Features & Benefits

Electric Power Lift with Manual Drive

The 2.2 KW electric lift motor handles the demanding task of raising loads up to 118 inches, reducing operator fatigue on repetitive stacking cycles. Manual drive keeps the unit mechanically simpler and reduces maintenance requirements compared to fully electric drive systems.

Adjustable Forks and Legs

Fork width adjusts from 8.66 to 32 inches and straddle legs adjust from 35 to 51 inches, allowing the EA15A to work with a wide variety of pallet sizes and load footprints. This flexibility makes it practical across multiple job sites or varying inventory configurations without swapping equipment.

Included Battery and On-Board Charger

The 12V/120AH lead acid battery and 12V/15A on-board charger ship with the unit, so contractors can put the stacker into service without sourcing additional charging equipment. Having the charger integrated into the machine also simplifies cord management on the job site.

Low Lowered Fork Height

At 2.6 inches lowered fork height, the EA15A can slide under standard pallets with minimal clearance requirements. This is particularly useful when loading directly from floor level or working with low-profile pallet configurations.

Steel Construction with Robotic Welding

The frame is built from high-quality steel using robotic welding processes, which produces consistent, high-strength weld joints throughout the structure. This construction approach is designed to withstand the terrain variations, impact, and directional changes typical of active warehouse and loading dock environments.

Ergonomic Comfort Handle

The ergonomic comfort handle is designed to reduce operator strain during extended use, which is important when the unit is in continuous operation during loading and unloading shifts.

Common Applications

Loading and Unloading Trucks

The EA15A's 3,300 lb capacity and 45-inch fork length make it well-suited for moving standard palletized loads on and off truck beds at loading docks.

Loading Dock Operations

Its turning radius and overall dimensions are sized for the constrained spaces typical of commercial loading docks, allowing operators to position loads accurately without excessive maneuvering room.

Stock Room Material Handling

The adjustable legs and forks allow the unit to navigate stock room aisles and handle varying pallet sizes, making it effective for routine restocking and inventory movement tasks.

Manufacturing Floor Use

The steel construction and durable drive components are designed to hold up to the continuous usage, directional changes, and varied floor surfaces found on active manufacturing floors.

Warehousing

With a maximum lift height of 118 inches, the EA15A can reach standard warehouse racking tiers, supporting both put-away and retrieval operations in storage facilities.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods
• General warehouse inventory and stock

Frequently Asked Questions

Q: Is a battery and charger included with the EA15A?
A: Yes. The unit ships with a 12V/120AH lead acid battery and a 12V/15A on-board charger included.

Q: What is the maximum lift height of the EA15A?
A: The EA15A has a maximum lifting height of 118 inches (9.83 ft).

Q: Is the drive electric or manual?
A: The drive is manual. Only the lift function is powered electrically via the 2.2 KW lift motor.

Q: Can the fork width be adjusted to fit different pallet sizes?
A: Yes. The overall fork width is adjustable from 8.66 to 32 inches, and the straddle legs adjust from 35 to 51 inches to accommodate various pallet configurations.

Q: What is the lowered fork height?
A: The forks lower to 2.6 inches, allowing the unit to slide under standard pallets from floor level.
