5 HP - Light Industrial Air Compressor
From
$1,78429
$2,77500
Unit price
/
Make a Selection
Stationary Electric Air Compressors

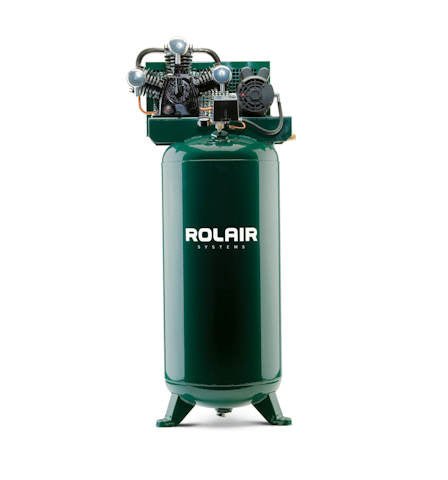

5 HP single and two-stage light industrial stationary electric air compressors. Model V5160PT03X shown.
Optional Equipment: (No optional equipment available for V5160PT03X) Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.
About The Pump
- Single or Two Stage
- Cast-Iron Cylinders
- Aluminum Head and Crankcase for Faster Heat Dissipation
- Ball Bearings
- Splash Lubricated
- Bearing Inserts on Connecting Rods
- Swedish Lamellar Reed Valves
- Oil Sight Gauge
- Low RPMs to Ensure Long Life and Trouble-Free Performance
About The Motor
- 3450 RPM
- 60 Hz
- Single Phase 230 Volt
- Open Drip-Proof Motor
Standard Equipment
- Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
Specifications
| HORSE POWER | 5 HP |
| CFM DISPLACED | 14.6 - 21.1 CFM @ 100 PSI |
| CFM DELIVERED | 10.7 - 16.0 CFM @ 100 PSI |
| PUMP/MOTOR RPM | 3450 |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 - 3 |
Additional Models
| MODEL # | HP | PHASE | TANK SIZE | MOTOR RPM | CFM DISPLACED | CFM DELIVERED | LENGTH | WIDTH | HEIGHT | APPROX. SHIPPING WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| H5130K24X | 5 | Single | 30 Gallons, Horizontal | 3450 | 14.6 @ 175 PSI | 10.7 @ 175 PSI | 42" | 20" | 39" | 315 lb. |
| H5160K24X | 5 | Single | 60 Gallons, Horizontal | 3450 | 14.6 @ 175 PSI | 10.7 @ 175 PSI | 42" | 20" | 39" | 385 lb. |
| V5160K24X | 5 | Single | 60 Gallons, Vertical | 3450 | 14.6 @ 175 PSI | 10.7 @ 175 PSI | 30" | 20" | 73" | 375 lb. |
| V5180K24X | 5 | Single | 80 Gallons, Vertical | 3450 | 14.6 @ 175 PSI | 10.7 @ 175 PSI | 30 | 24 | 73 | 440 lb. |
| V5160PT03X | 5 | Single | 60 Gallons, Vertical | 3450 | 21.1 @ 100 PSI | 16.0 @ 100 PSI | 24" | 20" | 70" | 298 lb. |
