5 HP - Light Industrial Air Compressor

Stationary Electric Air Compressors

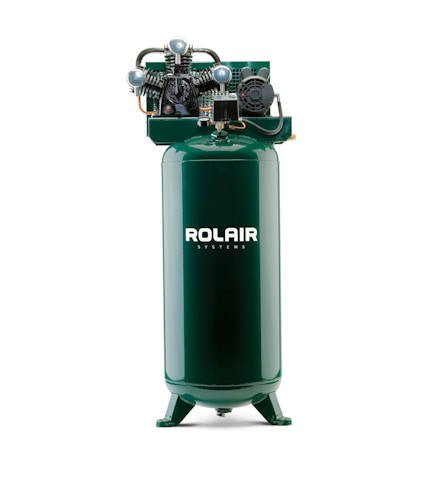

5 HP single and two-stage light industrial stationary electric air compressors. Model V5160PT03X shown.

Optional Equipment: (No optional equipment available for V5160PT03X) Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.

About The Pump

• Single or Two Stage
• Cast-Iron Cylinders
• Aluminum Head and Crankcase for Faster Heat Dissipation
• Ball Bearings
• Splash Lubricated
• Bearing Inserts on Connecting Rods
• Swedish Lamellar Reed Valves
• Oil Sight Gauge
• Low RPMs to Ensure Long Life and Trouble-Free Performance

About The Motor

• 3450 RPM
• 60 Hz
• Single Phase 230 Volt
• Open Drip-Proof Motor

Standard Equipment

• Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
• Automatic Unloading Device for Loadless Starts
• Heavy-Duty Brass Shut-Off Valve
• Pressure Gauge, 0-300 PSI in 5 lb. Graduations
• Safety Relief Valve - ASME Approved
• Multiple V-Belt Drive
• Intake Filter/Silencer with Replaceable Element
• Totally Enclosed Steel Belt Guard

Specifications

HORSE POWER	5 HP
CFM DISPLACED	14.6 - 21.1 CFM @ 100 PSI
CFM DELIVERED	10.7 - 16.0 CFM @ 100 PSI
PUMP/MOTOR RPM	3450
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	2 - 3



Additional Models

MODEL #	HP	PHASE	TANK SIZE	MOTOR RPM	CFM DISPLACED	CFM DELIVERED	LENGTH	WIDTH	HEIGHT	APPROX. SHIPPING WEIGHT
H5130K24X	5	Single	30 Gallons, Horizontal	3450	14.6 @ 175 PSI	10.7 @ 175 PSI	42"	20"	39"	315 lb.
H5160K24X	5	Single	60 Gallons, Horizontal	3450	14.6 @ 175 PSI	10.7 @ 175 PSI	42"	20"	39"	385 lb.
V5160K24X	5	Single	60 Gallons, Vertical	3450	14.6 @ 175 PSI	10.7 @ 175 PSI	30"	20"	73"	375 lb.
V5180K24X	5	Single	80 Gallons, Vertical	3450	14.6 @ 175 PSI	10.7 @ 175 PSI	30	24	73	440 lb.
V5160PT03X	5	Single	60 Gallons, Vertical	3450	21.1 @ 100 PSI	16.0 @ 100 PSI	24"	20"	70"	298 lb.
