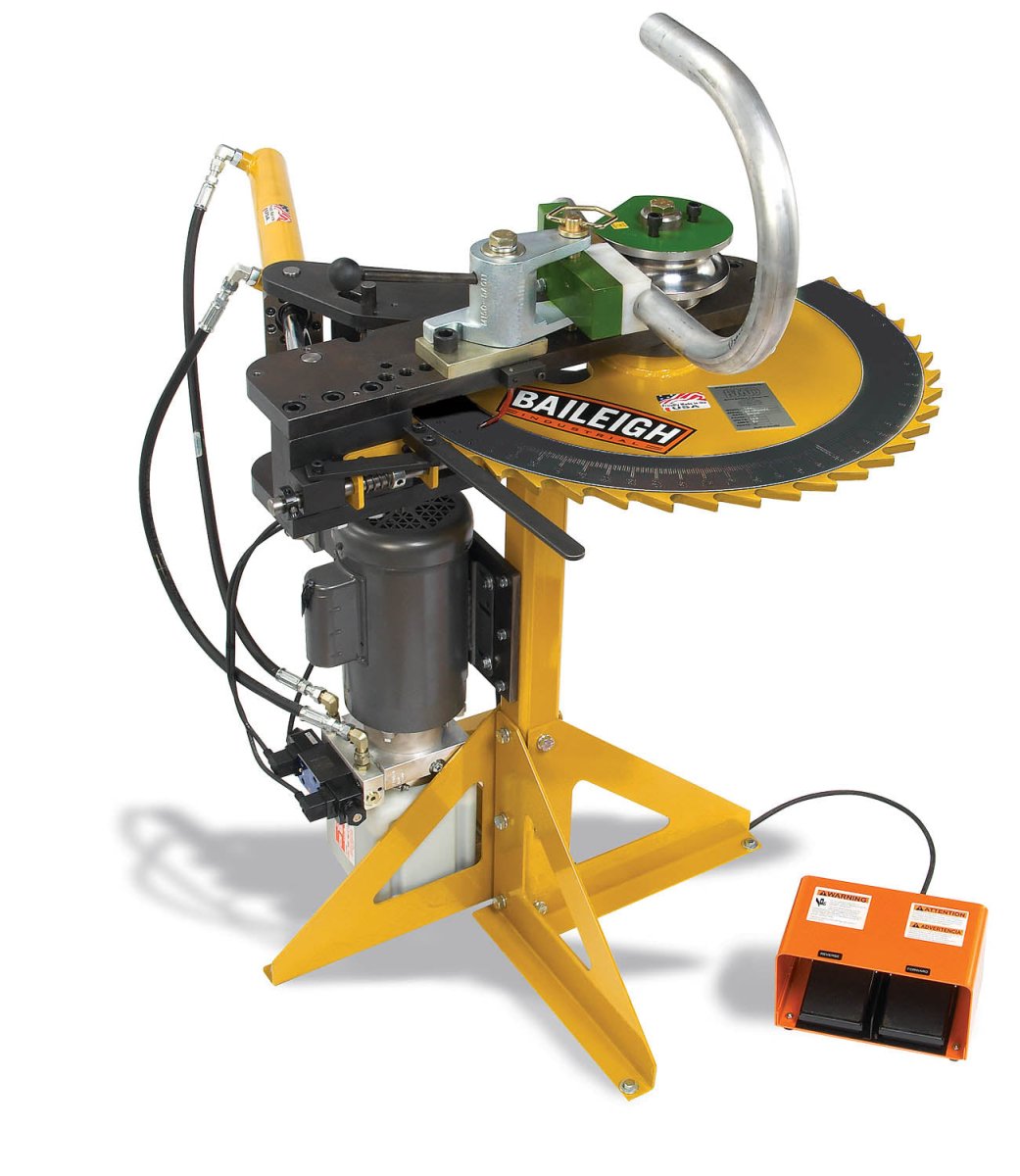

Tired of your exhausting manual bender? This hydraulic rotary draw bender will increase your productivity

  • Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
  • Handles a maximum capacity of 2.5” OD tubing, 2” OD Chromalloy, 2” square tubing, and 2” schedule 40 pipe.
  • Maximum centerline of 8”, depending on material’s OD.
  • Bends up to 200°, allowing for true 180° bendswithout having to re-pin the die set.
  • Takes only 4 complete pushes to reach 180°.

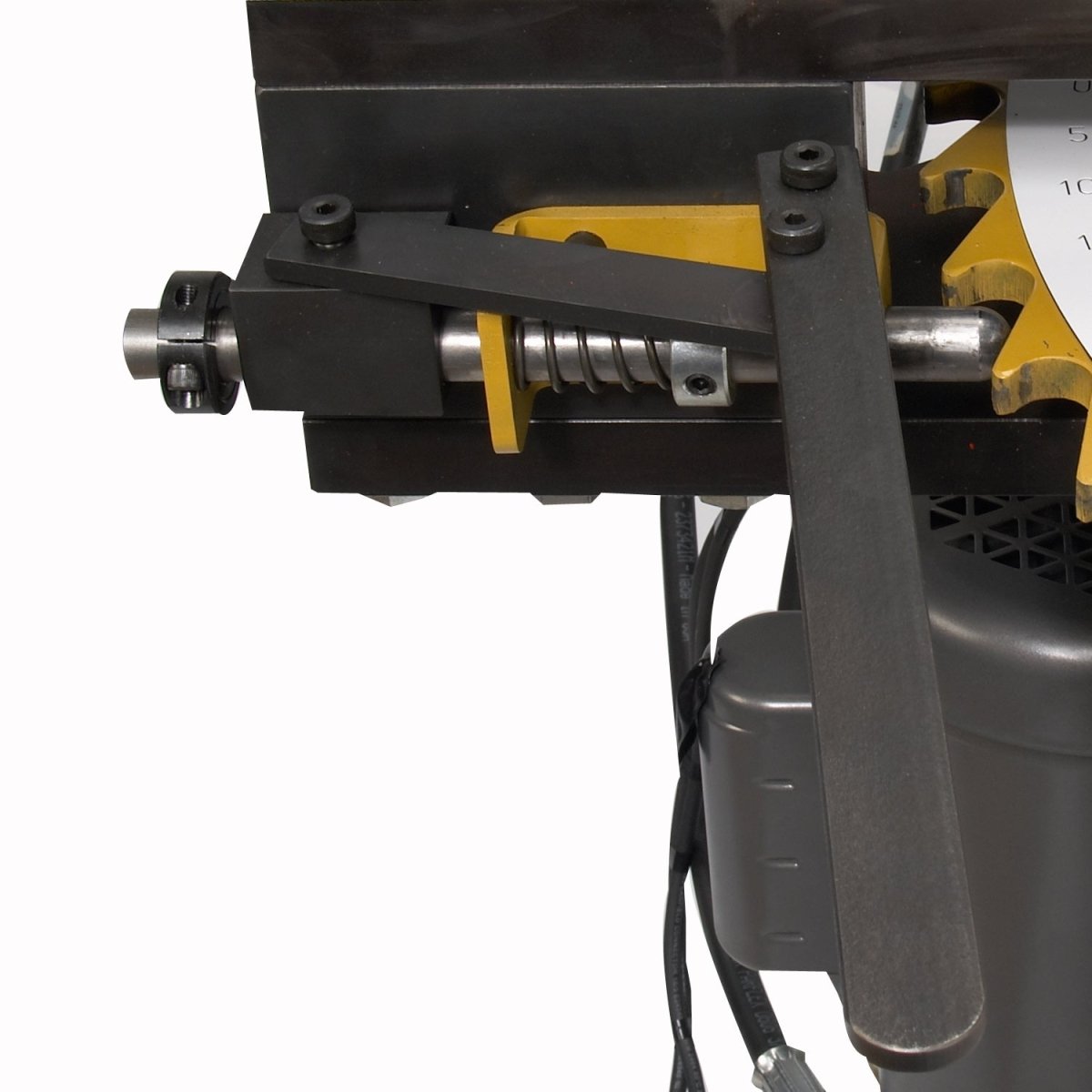

  • Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support from our knowledgeable team.

Use this draw bender machine for:Economical one-off bending of hand railing and automobile chassis.

Why choose the RDB-125 over comparable machines?

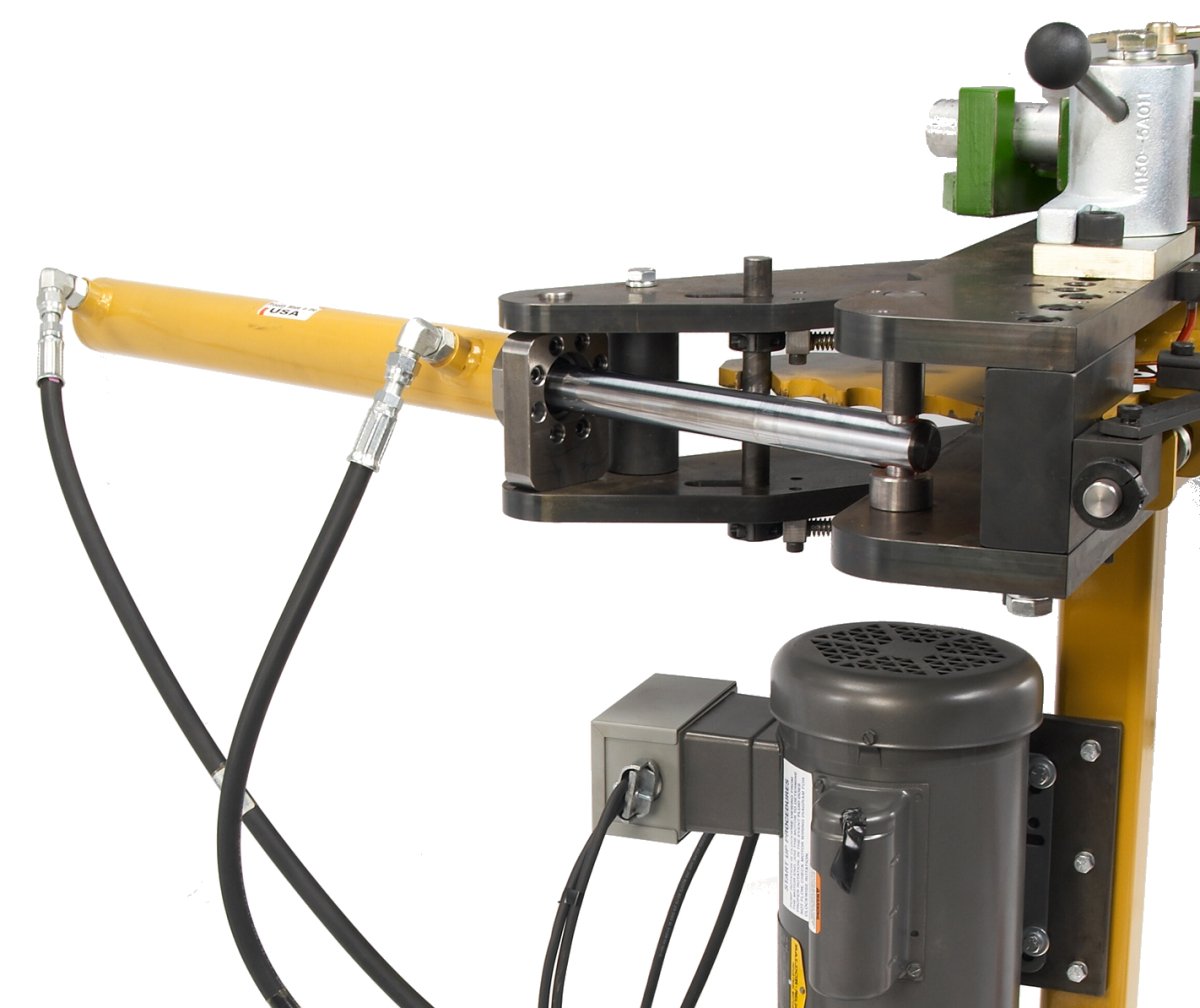

  • Low-pressure industrial-grade hydraulics make bending quick, quiet, and safe, even at full capacity.
  • Quick-release counter die positioner makes loading and unloading material more time-efficient.
  • Accepts user-friendly drop-on tool sets from Baileigh to increase the options for your applications.
  • You can call in for support and advice on projects from our seasoned representatives throughout the machine’s many years of productivity.

Specifications for Draw Bender

Item Number RDB-125
Country of Manufacture United States
Minimum CLR .5"
Minimum OD .25"
Mild Steel Solid Rod 1"
Mild Steel Pipe Schedule 40 2"
Mild Steel Round Tube Wall 2.5" (.125)
Mild Steel Square Tube (Wall) 2" (.125)
Stainless Steel Pipe Schedule 40 1.5"
Stainless Steel Round Tube Wall 2.375" (.125)
Chromolly Round Tube Wall 2" (.125)
Aluminum Round Tube Wall 2.5" (.156)
Maximum Center Line Radius Clr 10.5"
Power 110V
Shipping Weight 550lbs
Special Notes Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Shipping Dimensions (Inches) 60x44x77

* specifications subject to change without notice.
