If your job involves building race cars, restoring autos and airplanes, or working with an automated machinery builder, you know the value of properly bent lines.

Our simple and precise manual tubing bender will save you time and money from the first time you use it.

  • Bends tubing up to 180°.
  • Makes serpentine bends without difficulty at very tight radii (depending on the OD, material, and wall thickness).
  • Comes standard with 10 different size combinations, from 1/4" to 5/8" OD in either 3 or 5 times the diameter radii.
  • Works with mild steel, stainless steel, and certain coppers and aluminums.
  • Includes a heavy pedestal and tooling rack (in addition to the bending machine itself).

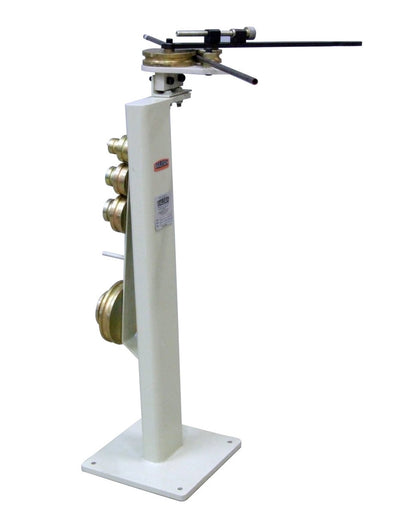

The RDB-10 Hand Bender is Recommended for:Bending air lines, brake lines, fuel lines, and general hydraulic lines.

Included Die Sets
1/4 x 3D 6.350 mm x 3D
1/4 x 5D 6.350 mm x 5D
5/16 x 3D 7.938 mm x 3D
5/16 x 5D 7.938 mm x 5D
3/8 x 3D 9.525 mm x 3D
3/8 x 5D 9.525 mm x 5D
1/2 x 3D 12.7 mm x 3D
1/2 x 5D 12.7 mm x 5D
5/8 x 3D 15.875 mm x 3D
5/8 x 5D 15.875 mm x 5D

You may also like the Manual Tube Bender RDB-050.



Item Number RDB-10
Power Manual
Shipping Weight 155lbs
Things to Know Before Purchase All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Shipping Dimensions (Inches) 43x16x19

* specifications subject to change without notice.
