The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility

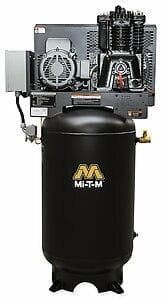

ACS Series - 7.5 HP Simplex Vertical is Powerful and efficient, they are designed to maximize production.

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:
ACS-20375-80V200V, 23.0A, 3 Phase
ACS-23375-80V230V, 20.0A, 3 Phase
ACS-46375-80V460V, 10.0A, 3 Phase


  • CFM @ 175


  • Horsepower/Motor

    7.5 HP, 230V, 1Ø, 31.0A

  • Pump RPM


  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    80 gallon

  • Bolt Down (LxW)

    15.63 x 15.63 in.

Weights & Dimensions

  • Net Weight

    594.00 lbs.

  • Shipping Weight

    665.00 lbs.

  • Length

    33.00 in.

  • Width

    25.00 in.

  • Height

    73.00 in.


  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0002 After Cooler

    Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0008 Low Oil Monitor

    Low-oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0051 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0058 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; you must also have IX-0002 after cooler option
