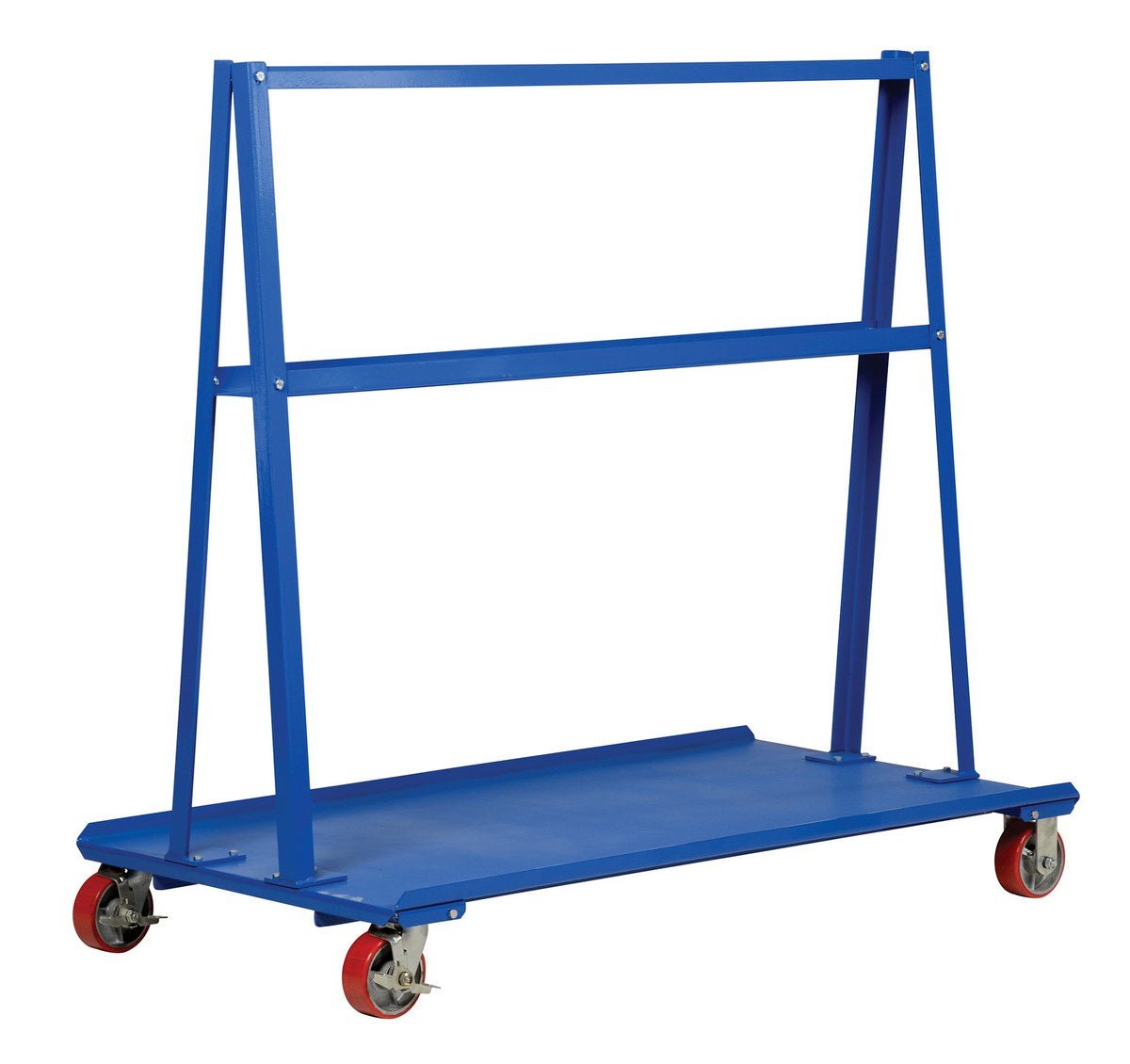

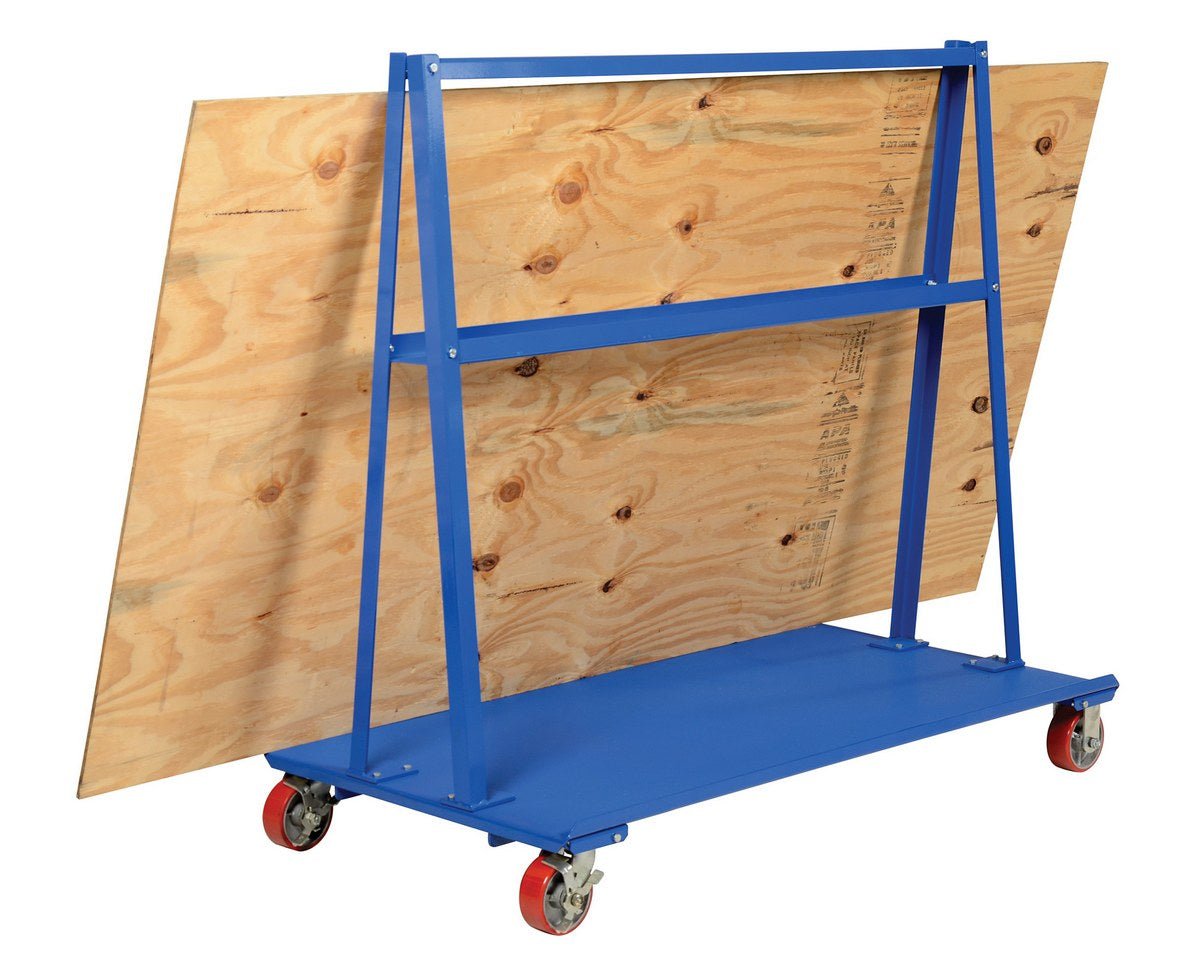

If you need to move bulky sheets of material such as drywall, plywood, paneling, or sheets of metal, you need the heavy-duty A-Frame Cart.

A 1" high lip along the length of the cart prevents materials from sliding off. A convenient parts tray is included between the A-frame uprights. Unit is easily secured for loading and unloading by using the foot operated caster brake. Includes two (2) rigid and two (2) swivel with brake casters. All steel construction with a baked-in powder-coated toughness. Ships knockdown, assembly required.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

A-Frame Cart
Model Deck Size
Uniform Static
Capacity (lbs)

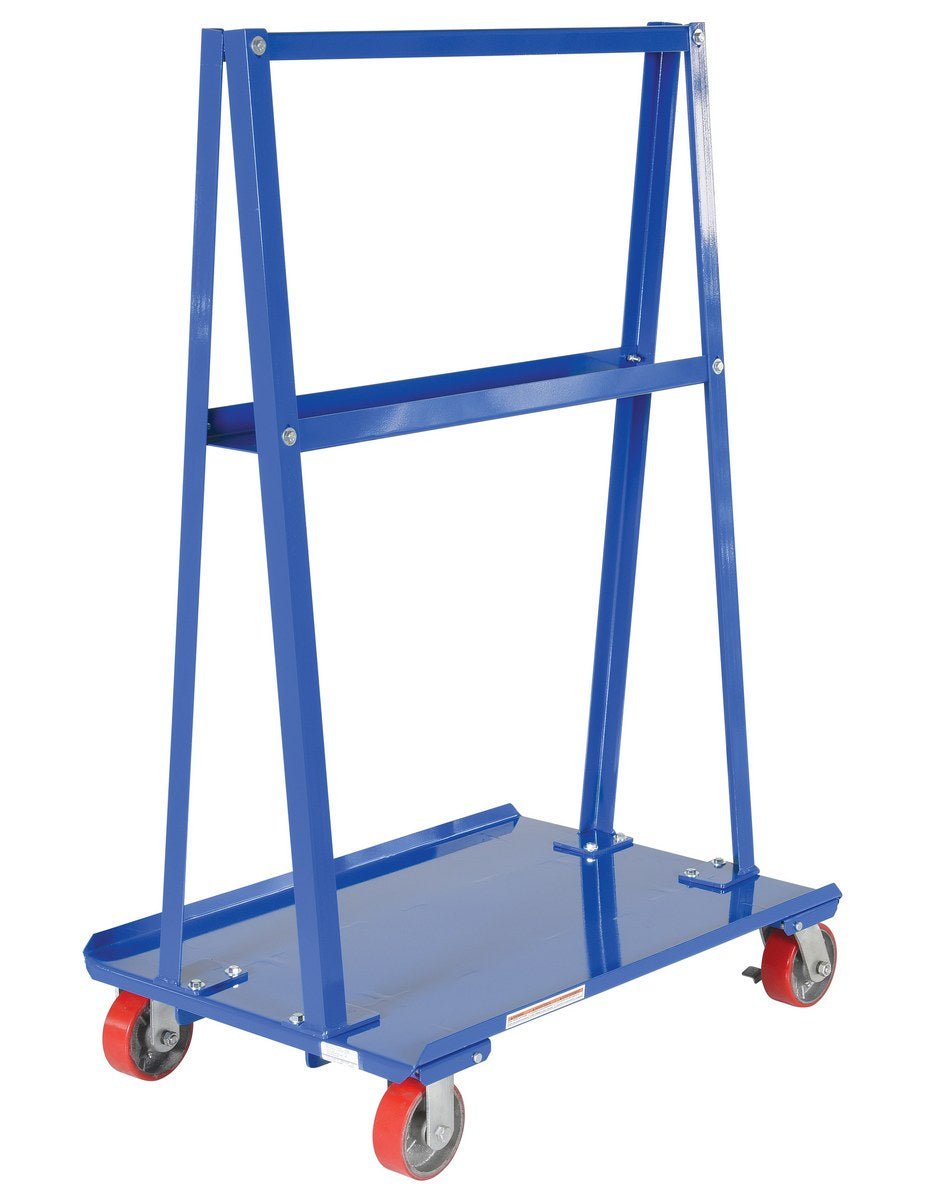

AF-2436 24"x36" 2,000 5"x2" Poly-on-Steel 152

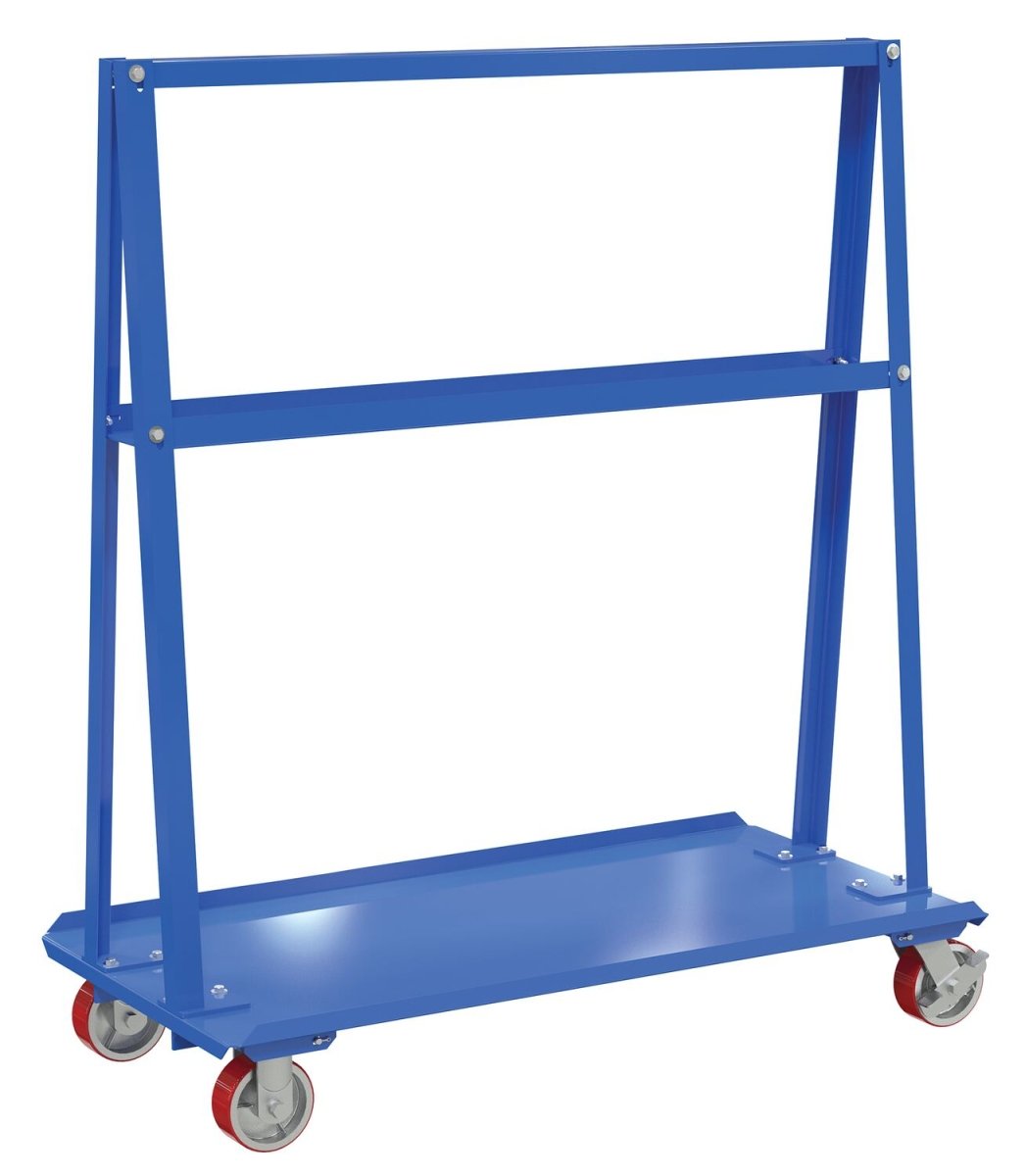

AF-2448 24"x48" 2,000 5"x2" Poly-on-Steel 171

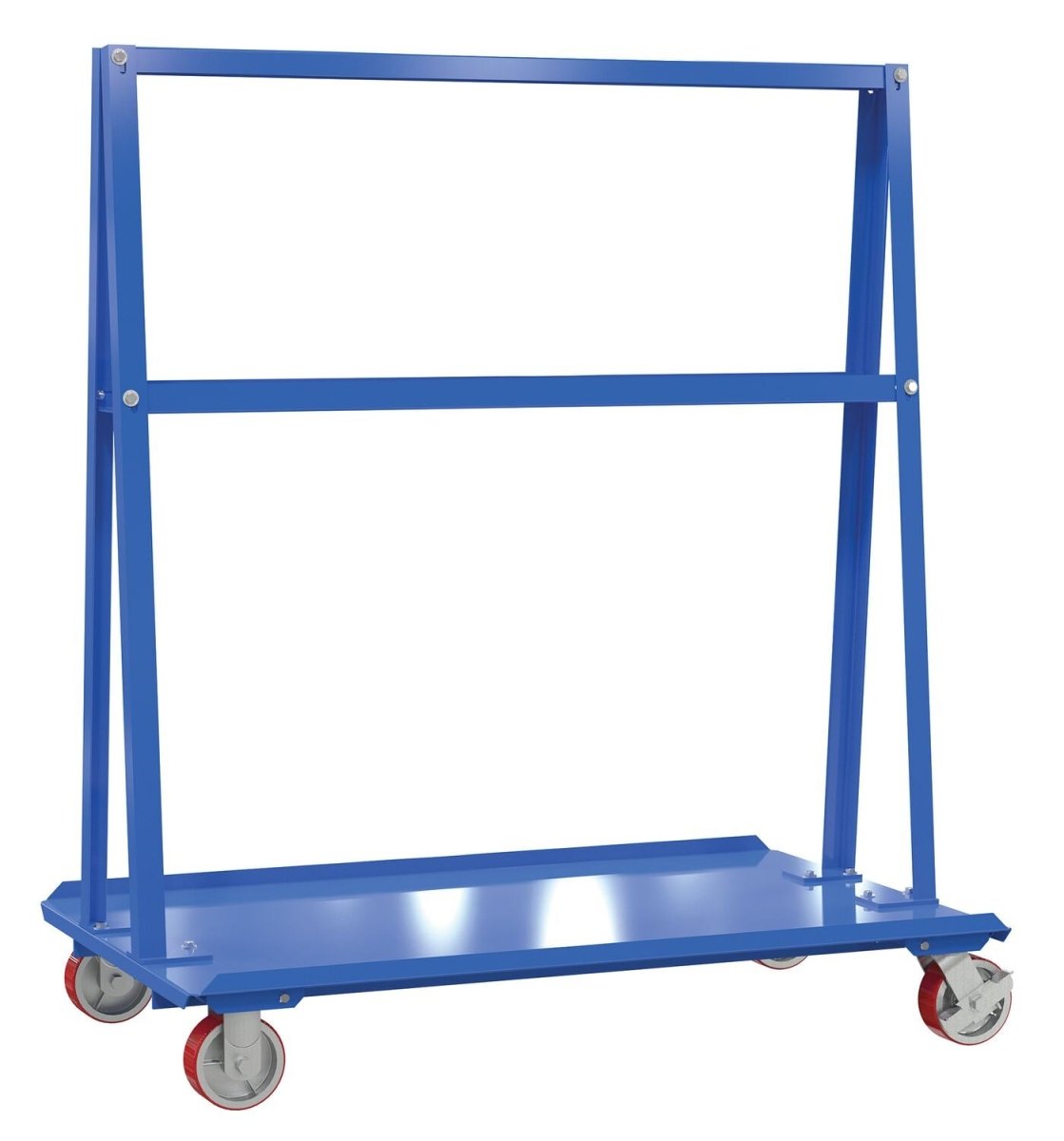

AF-3048 30"x48" 2,000 5"x2" Poly-on-Steel 192
AF-3060 30"x60" 2,000 5"x2" Poly-on-Steel 201
AF-3672 36-11/16"x72" 2,000 5"x2" Poly-on-Steel 248
