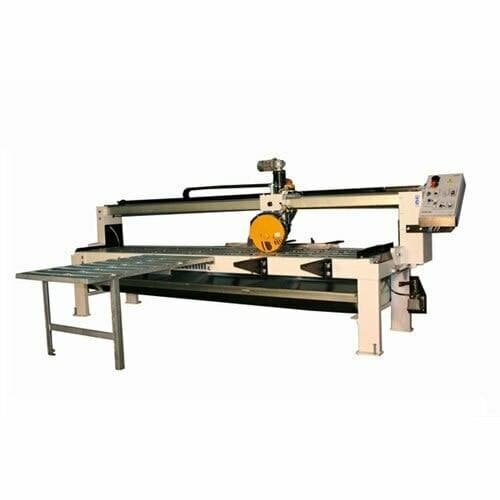

Achilli TFR A Bridge Saw 10' 8" Cut Fixed Bridge Saw

Granite Cutting Saw for straight and 45 degree cutting

Do you love Achilli Products, but want a slightly smaller saw check out Achilli AFR 300 C Manual Bridge Saw

The Achilli TFR A Granite and Stone Bridge Saw is the perfect solution for a shop producing 1-2 Kitchens per day.
Or for high production shops that need extra cutting and fabrication speed.
The TFR A Bridge Saw is excellent for production work.

This Granite and Stone Bridge Tilts at a 45 Degree for full length angle cuts. The head of the saw doesn't tilt. But the entire beam system will tilt. This is a true advantage because there are no bearings, or moving parts on the bridge of the saw or the motor that can loosen to lose the exact miter cut. The Achilli TFR A Bridge Saw has two knobs that you will loosen. Then the entire bridge will easily rotate to a 45 degree.

The Achilli TFR A Bridge Saw comes standard with Pop-up Rollers. The hydraulic pop up rollers allow the stone to be easily moved, turned, and positioned on the TFR. You will be amazed at how much easier these pop up rollers make loading and adjusting the stone counter tops and slabs.

Also included is the the Water tank and recycling pump for the TFR Bridge Saw. The Water Tanks sets underneath the saw and resent back to the blade to conserve water. This reduces water use, keeps the flow of water controlled, and ensures the correct flow of water to the blade. The water tank and water pump bolts to the Achilli TFR frame. It does not sit on the floor. This allows the floor to be cleaned underneath the saw. Plus this pushes the tank closer to the saw bed to recover the majority of water. Also by being bolted to the machine, it keeps the tank and pump from being damaged. The pump will automatically turn on when the main motor is started and will turn off when the motor shuts off.

The Achilli TFR A Bridge Saw accepts 10", 12" and 14"

The Achilli TFR Bridge Saw also includes side extensions that can be mounted on either side of the TFR. This allows a total width of 56", easily accommodating full slabs.

A standard feature of the Achilli TFR A Bridge Saw is the Laser that comes with it. This premium grade laser is the same laser used on all of the Achilli Bridges Saws

The Achilli TFR A comes with a separate motor for Z Axis blade height adjustment with power adjustment from the control panel. This allows step cutting, plunge cutting, and depth control for straight and miter cuts.

The Control Panel that mounts onto the TFR offers full operational control of the saw.

1. Emergency Safety on/off button
2. X Axis travel. Automatic travel with variable speed control. X axis travel can be stopped at the end of the cut,
3. Z Axis blade height raise and lower adjustment. Power Y axis adjustment for blade height and plunge cut.
4. Laser on/off button
5. Main motor on/off
6. Reset

The Achilli TFR A Bridge Saw comes with very stout 5.5 HP motor. This motor will power through 3cm material without slowing down or losing power.

Technical Data

• Length of cut: 10' 8" (130") (3300mm)
• Diamond Blade size: 10",12, 14"
• Blade Arbor size: 1" (25.4mm)
• Motor: 5.5 HP (4 kw) 220 v 3 phase Motor
• RPM: 3400 rpm
• Total length: 14'8" (178")
• Width of cutting table: 36"
• Total width(without side tables) 47"
• Total width with side extensions on 1 side: 56"
• Total width with side extensions on both sides: 76"
• Total height: 69"
• Net Weight(without accessories) 1575 lbs

Machine Structure

• Sturdy and compact structure (no foundations required).
• Set up is as simple as leveling and wiring the 220V three phase motor into the buildings power.
• Painted with epoxy powder coat finish for years of use E-chains to protect and guide moving cables
• WORKTABLE STRUCTURE: Work table fabricated in galvanized steel rails for indefinite use.
• HEAD: • Motorized head travel with variable speed from 0-21 ft/min for both forward and reverse
• X-axis variable speed by inverter.
• Z-axis cutting depth is power driven for height adjustment
• Manual bridge tilt from 90° to 45° to carry out Miter/bevel cutting.
• Water tank with built-in recycling pump.

Main Electrical Panel

• Main isolator switch
• Emergency stop push-button
• "RESET" power-on button
• Main motor start/stop button
• Head forward and reverse variable speed controls
• Head forward and reverse control buttons
• Emergency stop push-button on head INCLUDED EXTRA FEATURES ALREADY INSTALLED:

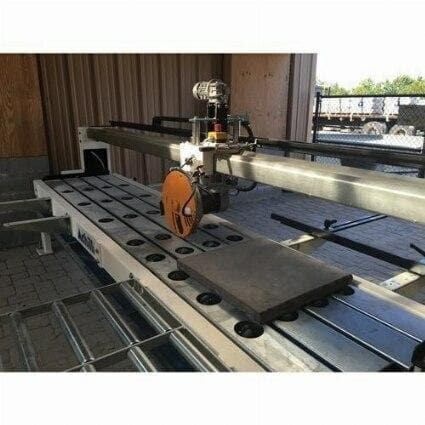

• Hydraulic pop-up Rollers: To easy slab loading and positioning Roller table with 32 omni-directional rollers pop up rollers raise and lower by hydraulic pump(included)
• Water Collection and Recycling system: For a flexible and easy machine operation Steel tank: capacity of 145 gallons of water Water pump with a max capacity of 66 gallons per minute Saves money on water Guarantees the proper amount of water to the blade
• Laser: A laser Diode Mounted on the head Shows Blade cutting line Red Laser color drastically increases set up time
• 6 Work table extensions 20" wide that bolt to the side of the saw to add width to stabilize full slabs Can be mounted on both sides of the saw
• Width of cutting table: 36"
• Total width with side extensions on 1 side: 56"
• Total width with side extensions on both sides: 76"
• 1 Side Stop (Squaring Bar)
• 2 adjustable limit switch stops
• 1 set of service wrenches
• User and maintenance manual

Installation

The TFR A Bridge Saw does not require professional installation.
Simply level the Bridge Saw Wire into the building.
Fill water tank with water Install blade
Warranty: 12 months Achilli has the right to repair or replace fee of charge any mechanical part proven to have a manufacturing defect after being inspected by its technicians, while electrical and electronic components are covered by warranty only if the defects are acknowledge as such by the respective manufacturers.

Freight or packing expenses for returning parts to the factory for repair or replacement and for their further return re payable by the customer
