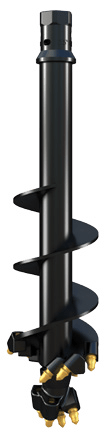

DR6 Dedicated Rock Auger Bits

Digga’s DR6 auger bits feature rotating rock picks and are specially designed for drilling from soft fracturable rock to very hard rock.

DR6 auger bits also feature short flighting to encourage regular spoil removal, allowing cool air to enter the hole and facilitate regular inspection of its carbide bullet teeth.

For smaller holes, or smaller drilling drives, Digga has made available DR4 auger bits. For larger diameter holes or larger drilling drives, DR11 auger bits are also available.

Specifications
Drilling Conditions	Dedicated Rock
Hub	2.5" Hex
Overall Length	60"
Pipe	3" - 5.5"
Flights (Lead)	13/16"
Flights (Carry)	5/8"
Teeth	3/4" Rock Pick
Pilot	RPT
Max Size	60"
Ideal Drives	4DD-7DD
Optimum Drilling Speeds
Earth	N/A
Clay	N/A
Shale (Fracturable Rock)	25-45
Heavy Rock	10-25
Auger Features	Double start, single carry flight configuration. Shallow flight pitch for max spoil removal. Short flighted augers, encourages regular removal of spoil, allowing cool air to enter the hole & regular inspection of teeth.
