EZ Haul™ | Half A-Frame Cart

EZ Haul™ Half A-Frame Cart — 750 lb Capacity Aluminum Transport Cart for Glass, Stone & Tile

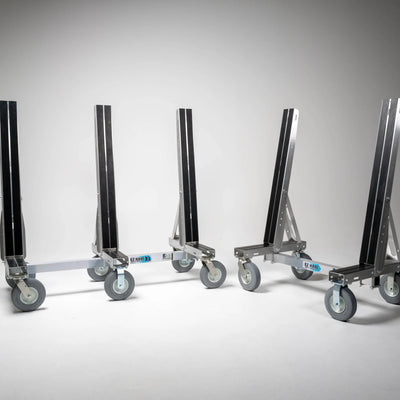

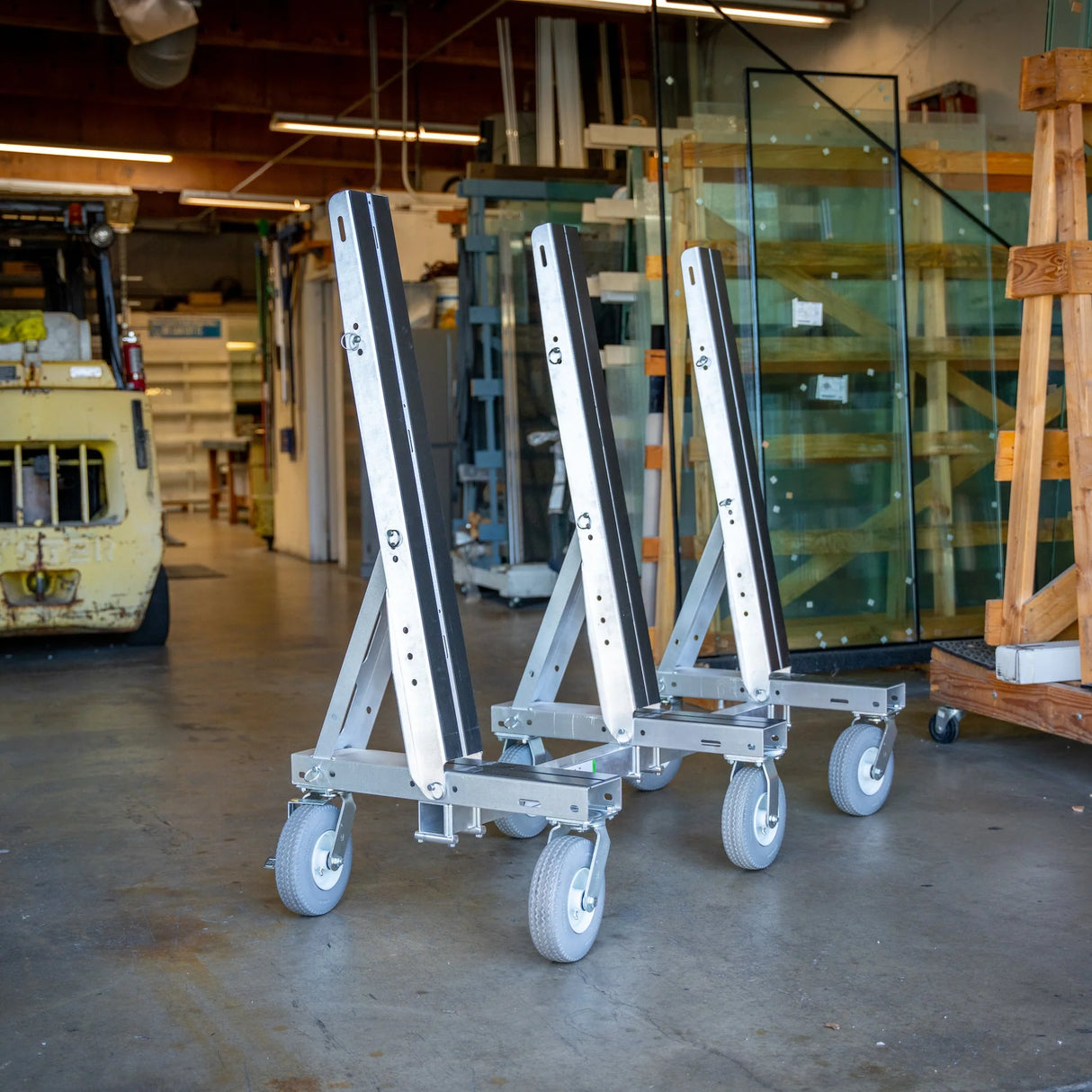

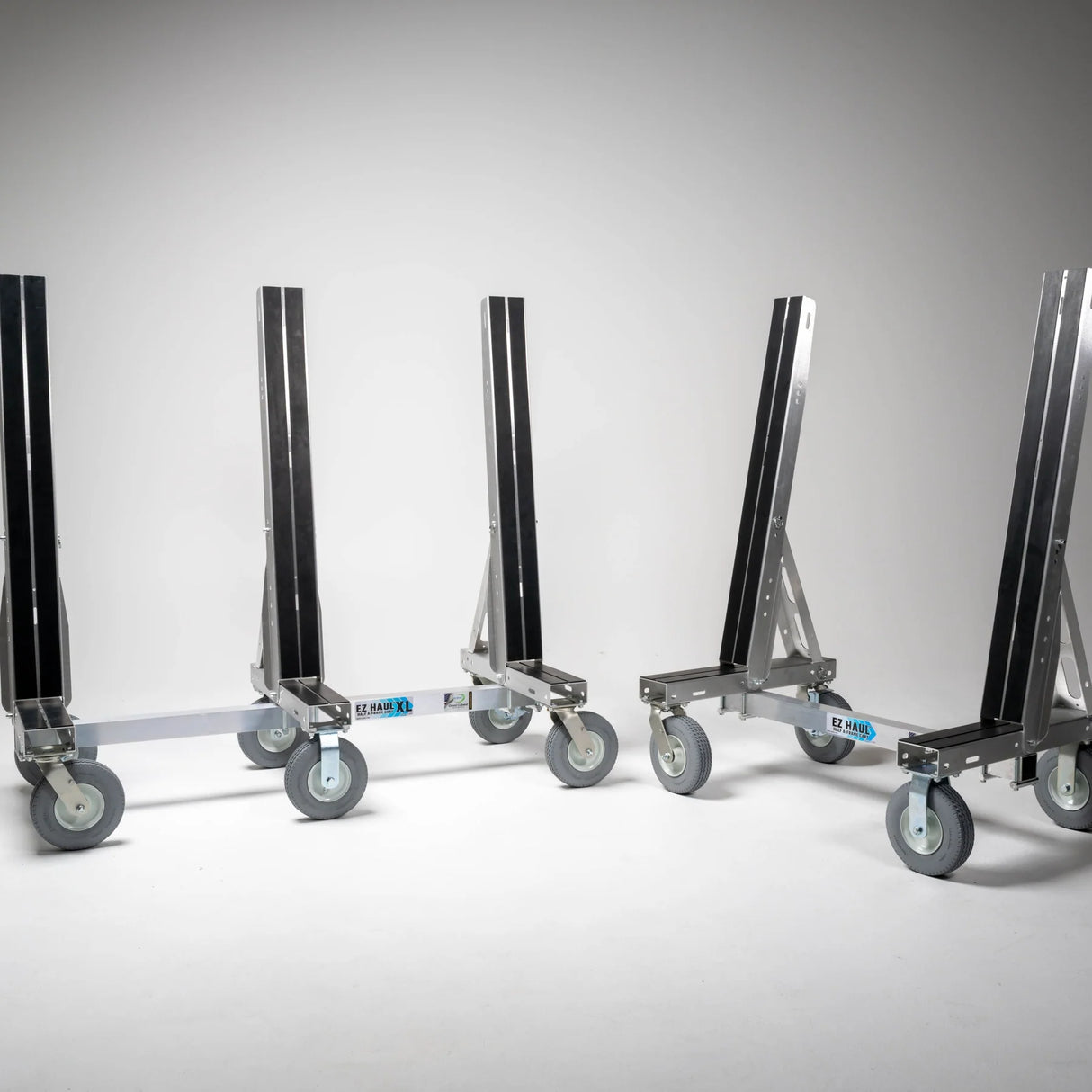

The EZ Haul™ Half A-Frame Cart (SKU: EZHFC-26) is a compact, professional-grade material transport cart engineered for moving fragile large-format panels — including glass, mirrors, stone, and tile — safely across jobsites. Built from aircraft-grade formed sheet and square tube aluminum, it delivers a 750 lb load capacity while weighing only 66 lbs, making it manageable for a single operator. Designed as the compact counterpart to the EZ Haul™ Half A-Frame Cart XL, it features two adjustable and collapsible uprights, a foldable frame, and 8" flat-free non-marking all-terrain tires. It is suited for contractors and trades professionals who require reliable, versatile material handling in both indoor and outdoor jobsite environments.

Technical Specifications

Unlike standard shop carts or basic dollies, the EZ Haul™ Half A-Frame Cart combines an aircraft-grade aluminum frame with adjustable, collapsible uprights and integrated tie-down anchor points — features specifically engineered for the controlled transport of fragile, oversized panels. Its compact footprint and low 12.75" support rail height allow tall materials to pass through standard doorways, a practical advantage over larger A-frame alternatives on constrained jobsites.

Key Features & Benefits

Strong Yet Lightweight Aircraft-Grade Aluminum Frame

The frame is constructed from aircraft-grade formed sheet and square tube aluminum, providing the structural integrity needed to handle 750 lb loads while keeping the cart's own weight at just 66 lbs. This allows a single crew member to maneuver and reposition the cart without additional labor, reducing fatigue and improving jobsite efficiency.

Two Adjustable and Collapsible Uprights

The two uprights can be adjusted to customize the leaning angle, accommodating varying panel sizes and weights while maintaining the proper center of mass during transport. When not in use, the uprights collapse to allow the frame to fold flat for compact storage on A-frames, under benches, or in truck racks.

750 lb Load Capacity

With a 750 lb rated capacity, the cart handles heavy and oversized loads — including multiple large-format panels simultaneously — without compromising stability or structural integrity. This allows crews to consolidate trips and move more material per pass across the jobsite.

8" All-Terrain Flat-Free Non-Marking Tires

The 8" closed-cell polyurethane tires are flat-free, eliminating downtime from punctures, and roll smoothly over gravel, lawns, and uneven surfaces. The non-marking compound protects finished indoor flooring from scuffs and marks, making the cart suitable for use both outdoors and inside completed spaces.

Low-Profile Support Rail — 12.75" from Ground

The support rail sits only 12.75" from the ground, keeping tall panels low enough to pass through standard doorways without tipping or repositioning. This low profile also contributes to a lower center of gravity, improving stability when transporting tall or heavy slabs.

Hard Neoprene Rubber Padding on Rails and Uprights

Support rails and uprights are lined with hard neoprene rubber strips that cushion panels during transport, reducing the risk of chipping, cracking, or surface damage to fragile materials such as glass and polished stone. This padding is a direct protection measure for high-value materials that cannot be replaced easily on a jobsite.

Integrated Tie-Down Anchor Points

Built-in tie-down anchor points allow panels to be secured to the cart for safe transport, preventing shifting or tipping during movement across uneven terrain or when loading and unloading from vehicles.

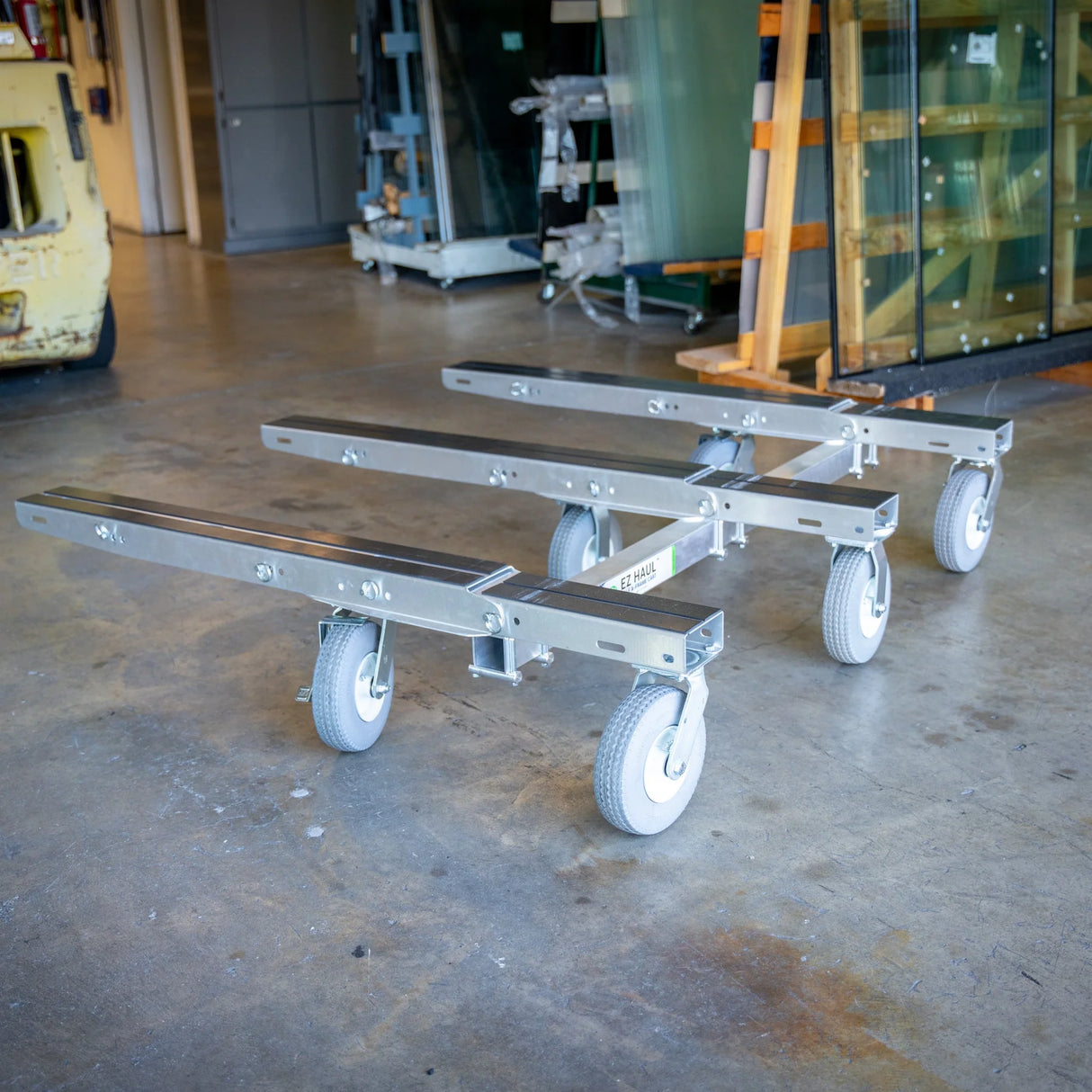

Collapsible Frame for Compact Storage

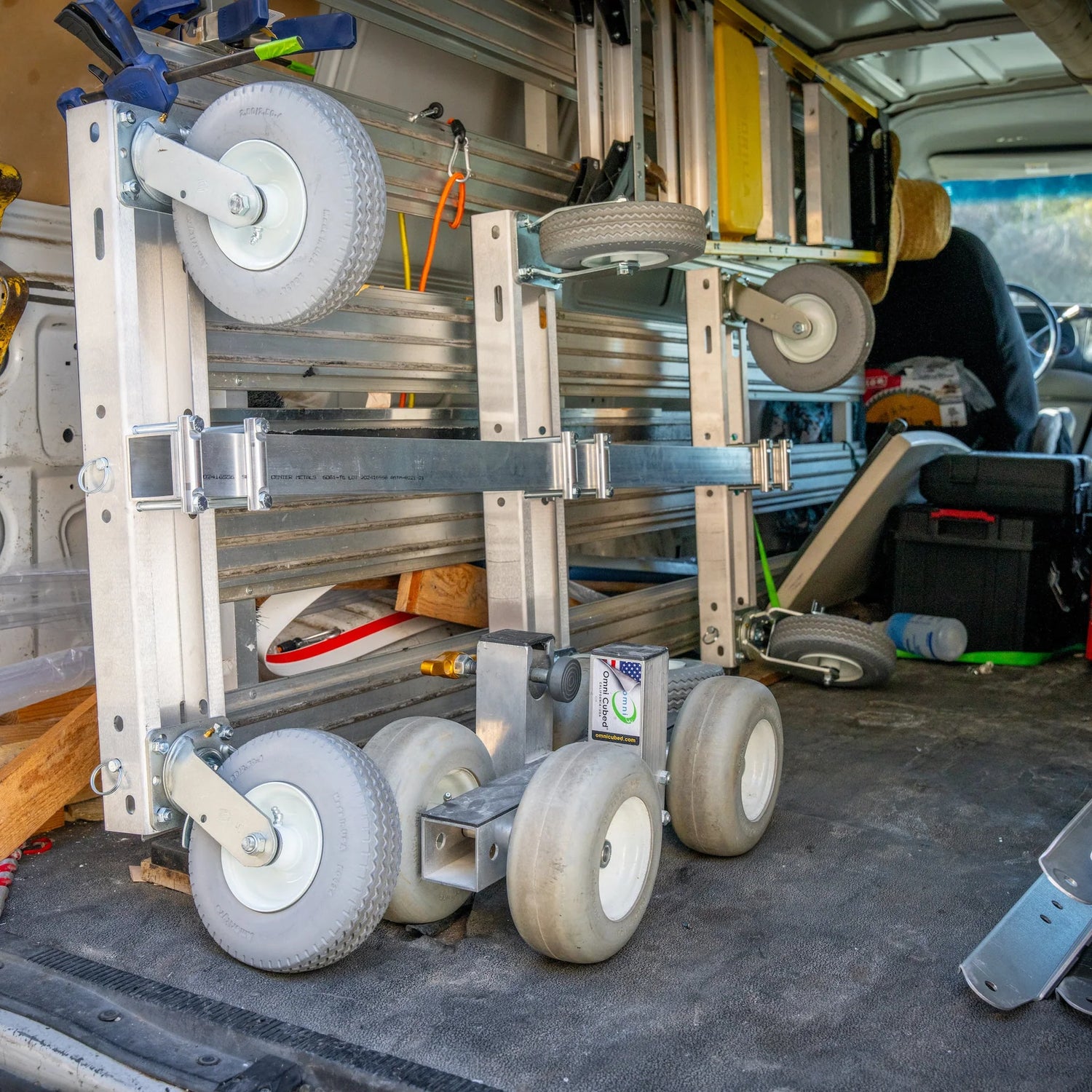

The foldable aluminum frame collapses flat, making it easy to store on A-frames, under workbenches, or in truck racks when not in use. This reduces the footprint the cart occupies in a shop or on a work vehicle, keeping the workspace organized.

Common Applications

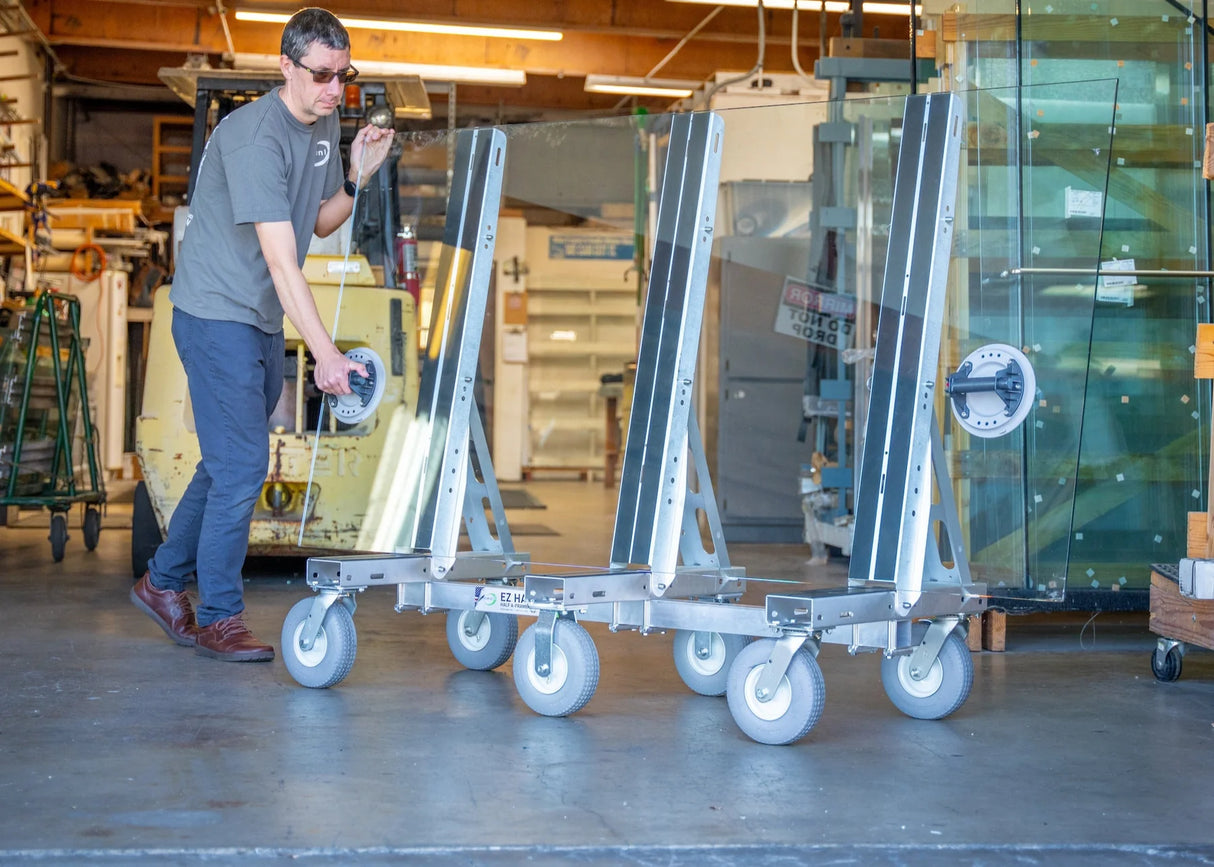

Glass and Mirror Transport

The neoprene-padded uprights and support rails protect glass and mirror panels from surface damage during jobsite transport, while the adjustable uprights accommodate varying panel dimensions.

Large-Format Tile Handling

Move multiple large-format tile panels simultaneously across the jobsite, reducing the number of trips required and minimizing the risk of breakage associated with manual carrying.

Stone Slab Transport

The 750 lb capacity and stable A-frame geometry make the cart well-suited for moving heavy stone slabs — including granite, marble, and quartz — between staging areas and installation zones.

Indoor Finished-Space Delivery

The non-marking tires allow the cart to be rolled across completed flooring without leaving scuffs or marks, making it appropriate for use inside finished residential or commercial spaces during installation.

Outdoor and Rough-Terrain Jobsite Movement

The 8" all-terrain tires absorb bumps and roll over gravel, grass, and uneven ground, enabling material transport in outdoor environments where smooth surfaces are not available.

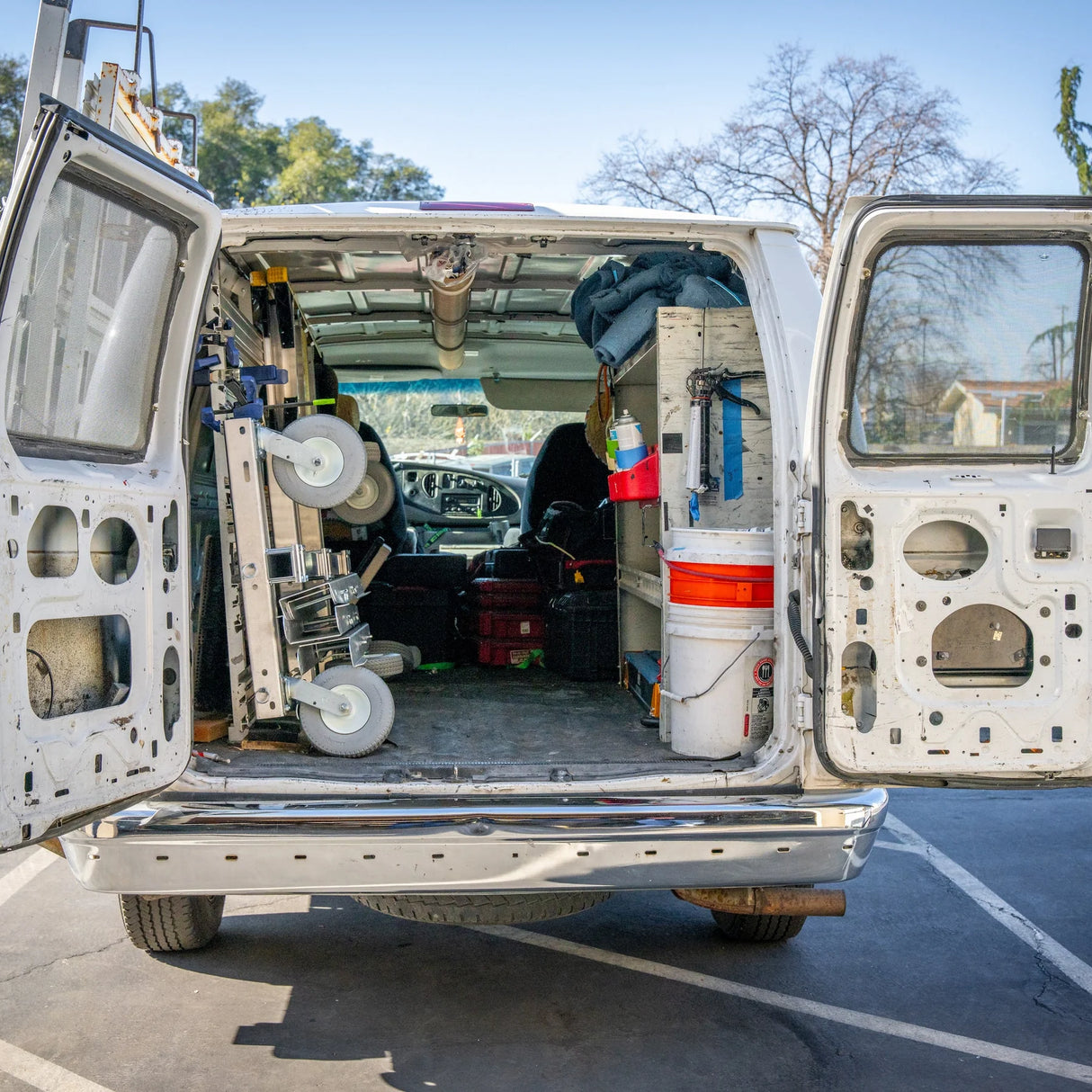

Vehicle Loading and Unloading

Integrated tie-down anchor points allow panels to be secured to the cart during loading and unloading from trucks or vans, reducing the risk of material shifting or falling during transfer.

Compatible Materials

• Glass panels
• Mirrors
• Large-format tile
• Stone slabs (granite, marble, quartz, and similar)
• Other large, fragile panel materials

Frequently Asked Questions

Q: What is the maximum load capacity of the EZ Haul™ Half A-Frame Cart?
A: The cart is rated for a maximum load capacity of 750 lbs.

Q: How does this cart differ from the EZ Haul™ Half A-Frame Cart XL?
A: The EZ Haul™ Half A-Frame Cart is designed as the compact version of the XL model, offering a smaller overall footprint while retaining the same core features including adjustable uprights, collapsible frame, and all-terrain tires.

Q: Are the uprights adjustable to fit different panel sizes?
A: Yes. The two uprights are both adjustable and collapsible, allowing the leaning angle to be customized to suit varying panel sizes and weights, and the width between uprights is adjustable up to 32.5".

Q: Will the tires damage finished indoor flooring?
A: No. The 8" closed-cell polyurethane tires are non-marking, making them safe for use on finished indoor flooring surfaces.

Q: Can the cart be stored compactly when not in use?
A: Yes. The frame folds flat for storage on A-frames, under benches, or in truck racks, minimizing the space it occupies in a shop or work vehicle.

Q: What warranty does the EZ Haul™ Half A-Frame Cart carry?
A: The cart is backed by a 5-year warranty.
