FS 170

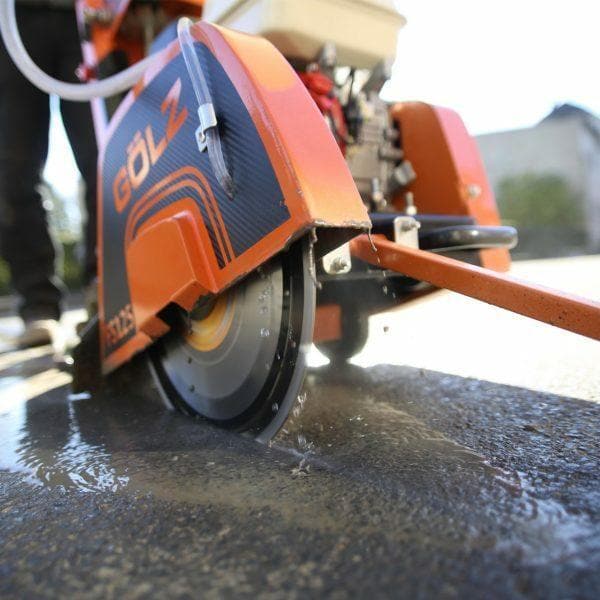

Robust and solid Push Saw with hot galvanized chassis for durable operation in the construction and rental business with ergonomic comfort to the operator by Anti-Vibration-System and height adjustable handles.


FS 170 with Gasoline, Diesel or Electric motor - Blade-ø 20 in. (500mm) - Cutting depth 7 1/2 in. (190 mm)

  • Anti-Vibration system, height adjustable handles
  • Cutting depth adjustment by foot pedal for operators safety

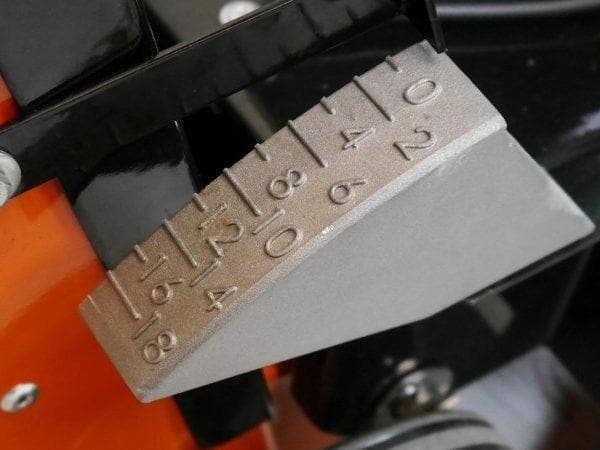

  • Cutting depth indicator
  • Front cutting guide
  • Parking break
  • Safety frame with integrated lifting frame
  • Big wheels for good chassis clearance
  • Durable V-belt drive
  • Maintenance free design (hot dipped galvanized chassis)

Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5 KW 3-phase electric motor

  • Durable Poly-V belt for an optimum of power transmission
US Standard Metric
Max Cutting depth 7 1/2 in. 190 mm
Blade diameter 20 in. 500 mm
Shaft size 1 in. 25,4 mm

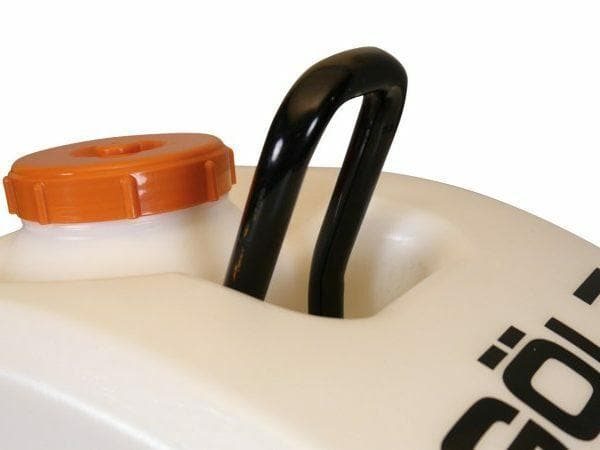

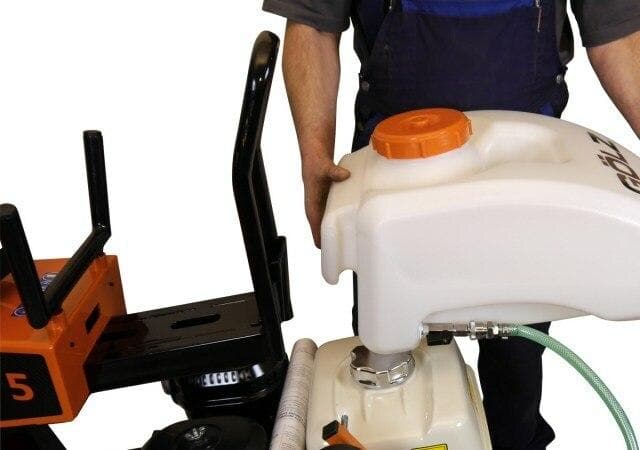

Water tank 26 1/2 qt 25 Liter
Engine Honda GX390
Engine power (net power) 13HP/9,5kW (11,8HP/8,7kW)
Shaft speed 2.300 rpm
Feed motion Push
Cutting depth adjustment Foot pedal & Pneumatic Spring
Power transmission V-Belt Kit
Hand Arm Vibrations 4,5 m/s2
Dimensions: (LxWxH) 48 in. x 24 in. x 46 in. 1.210 x 630 x 1.165 mm
Weight 265 lbs. 120 kg
Order-No. 0282 170 1000

Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5kW 3-phase electric motor.

Diamond Blades:
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
