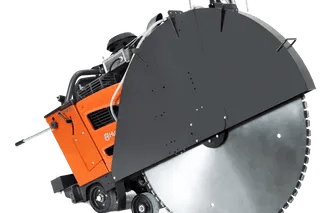

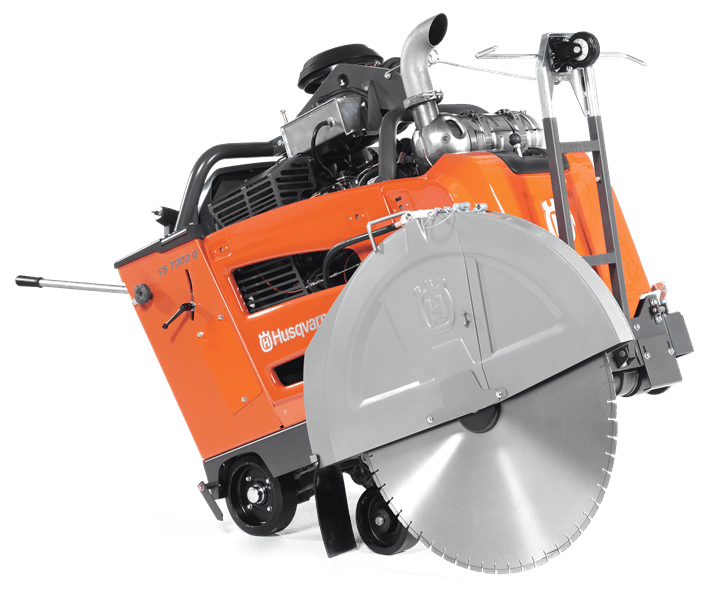

Husqvarna Floor Saw 7000 D Walk Behind Saw

Husqvarna Floor Saw 7000 D Walk Behind Saw

The modern FS 7000 D is our most powerful diesel walk-behind flat saw with low emissions, developed to be compliant with Tier 4 regulations. Ideal for concrete and asphalt cutting up to 17 1/4" deep. Suitable for mid-sized road work, service work and smaller jobs that require high production rates. It is highly versatile thanks to its high output, compact size and good maneuverability. It is equipped with an intuitive and ergonomic digital control panel with all important functions and is easy to monitor.

Cutting depth, max - 17.25 in
Output power (As rated by the engine/motor manufacture) - 74.3 hp
Blade diameter, max - 42 in

Single Speed Saw

Tech Specs	D20	D26	D30	D36	D40
Maximum Blade Diameter - in (mm)	20 (508)	26 (660)	30 (762)	36 (914)	42 (1,067)
Maximum Depth of Cut - in (mm)	7-3/4 (197)	10-1/2 (267)	12-1/2 (305)	15 (381)	17-1/2 (445)
Average Blade shaft, RPM	2,362	1,762	1,624	1,354	1,150
Blade Flanges - in (mm)	4-1/2(114)	5 (127)	5 (127)	6 (152)	7 (178)
Max Weight Crated	2,213 (1,004)	2,224 (1,109)	2,233 (1,013)	2,246 (1,019)	2,385 (1,082)
Max Weight Uncrated	2,103 (954)	2,114 (959)	2,123 (963)	1,700 (771)	2,275 (1,032)



 3 Speed Saw Specs

Tech Specs	D26	D30	D36	D40
Maximum Blade Diameter - in (mm)	26 (660)	30 (762)	36 (914)	42 (1,067)
Maximum Depth of Cut - in (mm)	10-1/2 (267)	12-1/2 (305)	15 (381)	17-1/2 (445)
Average Blade shaft, RPM	1,860 / 2,170 / 3,100	1,600 / 1,880 / 2,680	1,360 / 1,620 / 2,300	1,180 /1,380 / 1,960
Blade Range	14/18/26 (350/450/660)	18/26/30 (450/660/762)	20/30/36 (508/762/914)	30/36/42 (762/914/1,067)
Blade Flanges - in (mm)	5 (127)	5 (127)	6 (152)	7 (178)
Max Weight Crated	2,256 (1,023)	2,265 (1,027)	2,278 (1,033)	2,417 (1,096)
Max Weight Uncrated	2,146 (973)	2,155 (977)	2,168 (983)	2,307 (1,046)



FEATURES:

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Powerful and fuel-efficient
Common-rail diesel engine with low emissions.

Low emissions
Equipped with diesel particle filter (DPF). Complies with Stage IIIB / Tier 4 regulations.

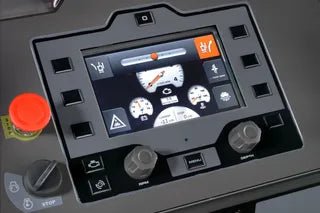

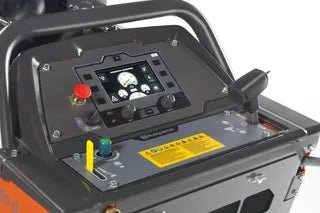

Intuitive and ergonomic control panel
All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.

Easy adjustment of tracking for straight cuts
Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorize last used setting.

Engine
Output power (As rated by the engine/motor manufacture)
74.3 hp
Engine cooling
Liquid /Air
Fuel tank volume
1352 fl oz

Cutting equipment
Arbor diameter
1 in
Blade depth control
Electro hydro
Blade diameter, max
42 in
Cutting depth, max
17.25 in



Transmission:
Transmission speed reverse
0 fpm
Transmission speed forward
250 fpm
Dimensions
Product size width
38.38 in
Product size height
59 in
Weight
2275 lbs
