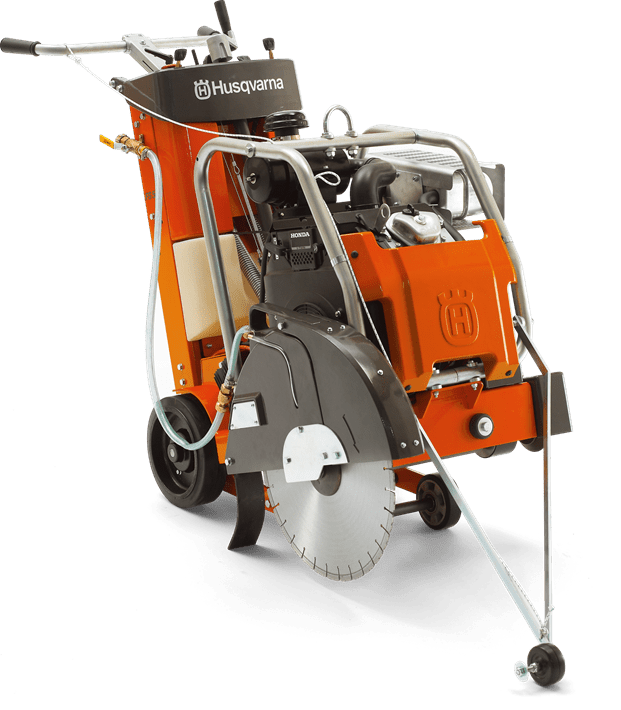

Husqvarna FS 513 Walk Behind Flat Saw

Husqvarna FS 513 Walk Behind Flat Saw

Our convenient and compact FS 513 is a self-propelled floor saw ideal for asphalt and concrete cutting. Suitable for small to medium-sized service and repair jobs, up to 6.1" cutting depth. The optimal power transmission makes it ideal for more demanding jobs, despite its compact size. User-friendly and developed with a clear focus on your comfort.

• Cutting depth, max"® 7in
• Output power (As rated by the engine/motor manufacture)"®11.7 hp"® "®
• Blade diameter, max"® 20in

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Self-propelled

For easy operation and comfort.

Low vibrations

Engine and blade shaft mounting system increases comfort and gives excellent cutting performance.

Self-contained drive system

Self-contained differential drive system eliminating drive gear from rear wheels and related wear. It is simple to handle and maintain.

Optimal power transmission to the blade

Enhanced belt tensioning system gives constant tension without need of re-tensioning, ensuring optimal performance and increased belt life.

Low maintenance
The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.

Adjustable handles
Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.

Clear depth indicator
Adjustable for all blade diameters.

Engine

Output power (As rated by the engine/motor manufacture)

11.7 hp

Engine cooling

Air

Fuel tank volume

206.3 fl oz

Cutting equipment

Arbor diameter

1 in

Blade depth control

Handwheel

Blade diameter, max

20 in

Cutting depth, max

7 in

Transmission

Transmission speed forward

7.92 fpm

Dimensions

Product size height

47.24 in

Weight

470 lbs

Easy to adjust the blade
Spring-assisted screw feed facilitates blade adjustment in and out of the cut.
