Perfect for road work, large sawing jobs, deep floor sawing and mid-size jobs that require high production rates

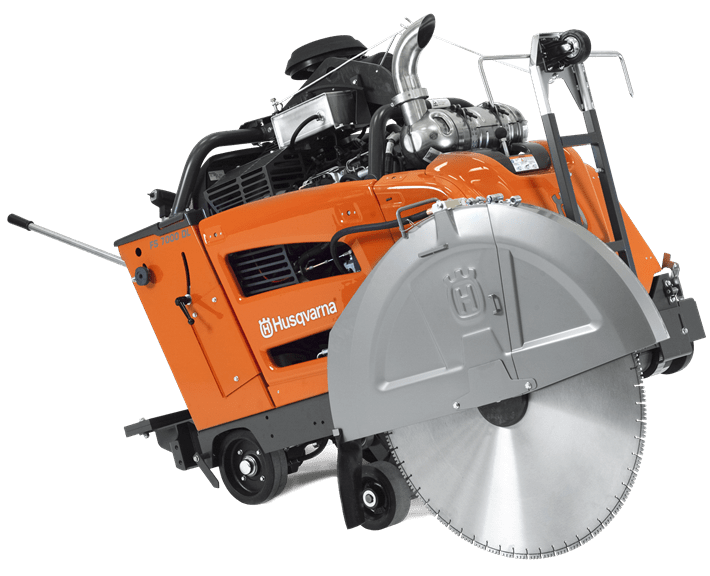

FS 7000 DL is a large, deep-cutting walk-behind flat saw with cutting depth up to 625 mm with a Ø1500 mm diamond blade. Perfect for road work, large sawing jobs, deep floor sawing and mid-size jobs that require high production rates. The modern, service-friendly design, ergonomic controls and electronic support systems are highly intuitive, with focus on operator efficiency and convenience. The turbo diesel engine from Deutz delivers an impressive level of sustainable torque maximizing production rates in the toughest conditions. Compliant with Stage IIIB / Tier 4 emission regulations the floor saw contributes to a healthier working environment. Available as single speed or with a 3-speed gearbox. Both models can include blade clutch, electronic tracking system on the rear axle, 5th wheel, light kit, water pump kit and weight kits.

Cutting depth, max - 25 in
Output power (As rated by the engine/motor manufacture) - 74.3 hp
Blade diameter, max - 60 in

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Deep cutting
Possible cutting depth of 625 mm with an extension kit to run a Ø1500 mm diamond blade.

Easy adjustment of tracking for straight cuts
Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorise last used setting.

Intuitive and ergonomic control panel
All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.

Optional 5th wheel to ease maneuverability
5th wheel option that helps raise and lower the rear of the saw, making it easier for the operator to pivot right or left. Particularly helpful when lining up a cut.

Low emissions
Modern diesel engine that complies with Stage IIIB / Tier 4 regulations.

Powerful and productive
The power transmission system with right-angle gearbox transmits high power to the blade shaft with optimum torque and minimised vibrations.

Adjustable handles
Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.

Easy to operate
Well-balanced design with a low profile gives you high visibility and makes it easy to handle and transport.

Low maintenance
The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.

Optimized weight distribution
Helps maintain traction and gives comfortable operation.

Adjustable handlebars, intuitive control layout, easy maneuverability and low vibrations facilitate operation and reduce user-fatigue.

Convenient transport between truck and work site
The blade clutch makes it possible to stop the blade when the engine is still running, for safe transportation.

Optimized display visibility
Automatic adjustment of the display back light makes the display readable in all light conditions.

Highly versatile 3-speed version
Optimal power and speed for a wide range of blade diameters; ideal when jobs require use of multiple blade sizes.

Adjustable and telescopic pointer
Provides good visibility when cutting and can be folded for transport.

Quick dis-engagement at blade slam
When thermal expansion of the concrete causes the blade to pinch in the kerf of the cut you can dis-engage the blade with the blade clutch.

Easy assembly of blade guard
Blade guard with lockable hinge. Easy to assemble and dis-assemble using your blade wrench.

Automatic depth stop
The depth indicator's stop function stops the saw at your desired cutting depth. Adjustable for all blade diameters.

For easy operation and comfort.

Output power (As rated by the engine/motor manufacture)
74.3 hp
Engine cooling
Liquid /Air
Cutting equipment
Arbor diameter
1 in
Blade depth control
Electro hydro
Blade diameter, max
60 in
Cutting depth, max
25 in

Transmission speed reverse
0 fpm
Transmission speed forward
250 fpm
Product size width
39.5 in
Product size height
59 in
2879 lbs
