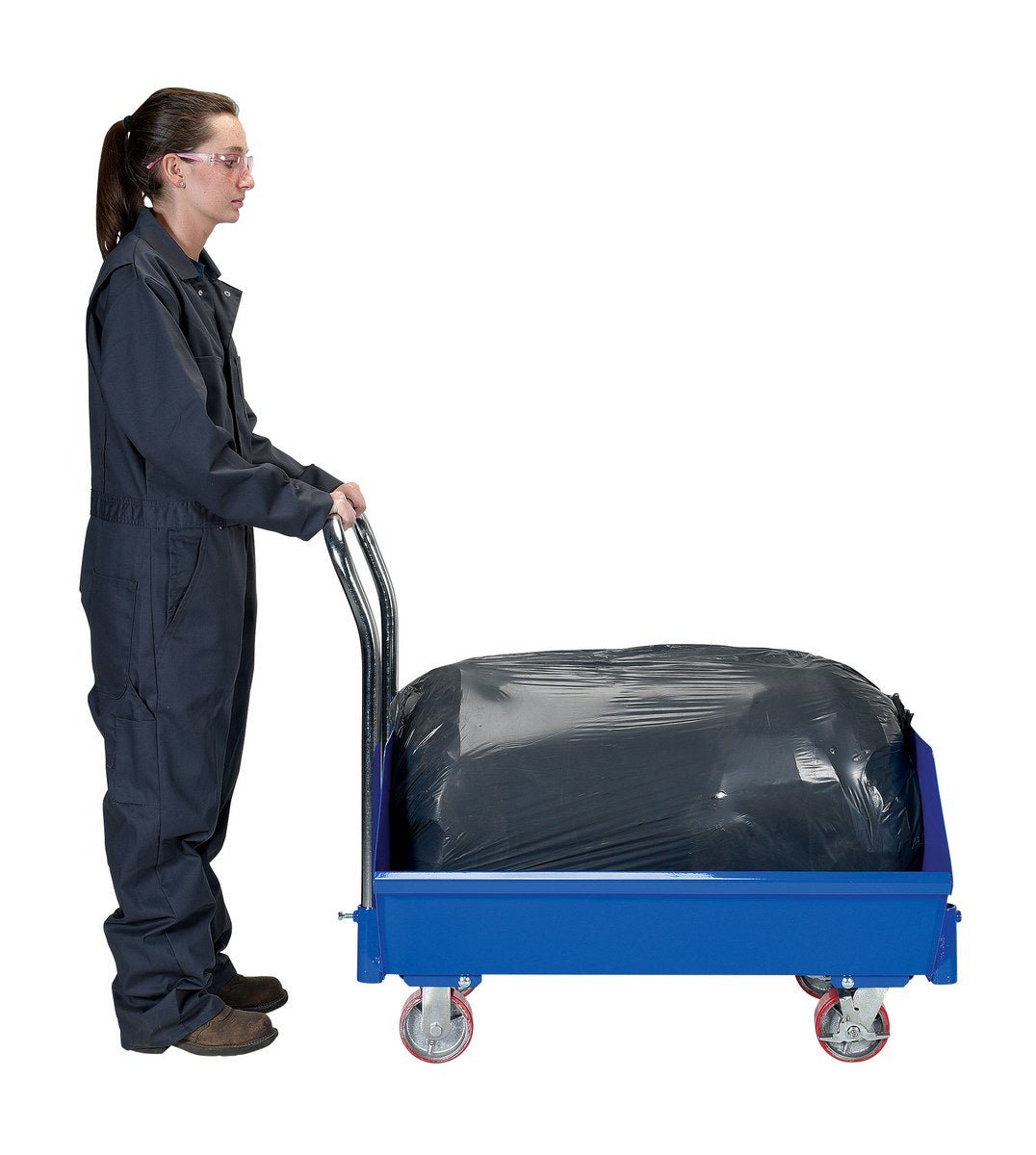

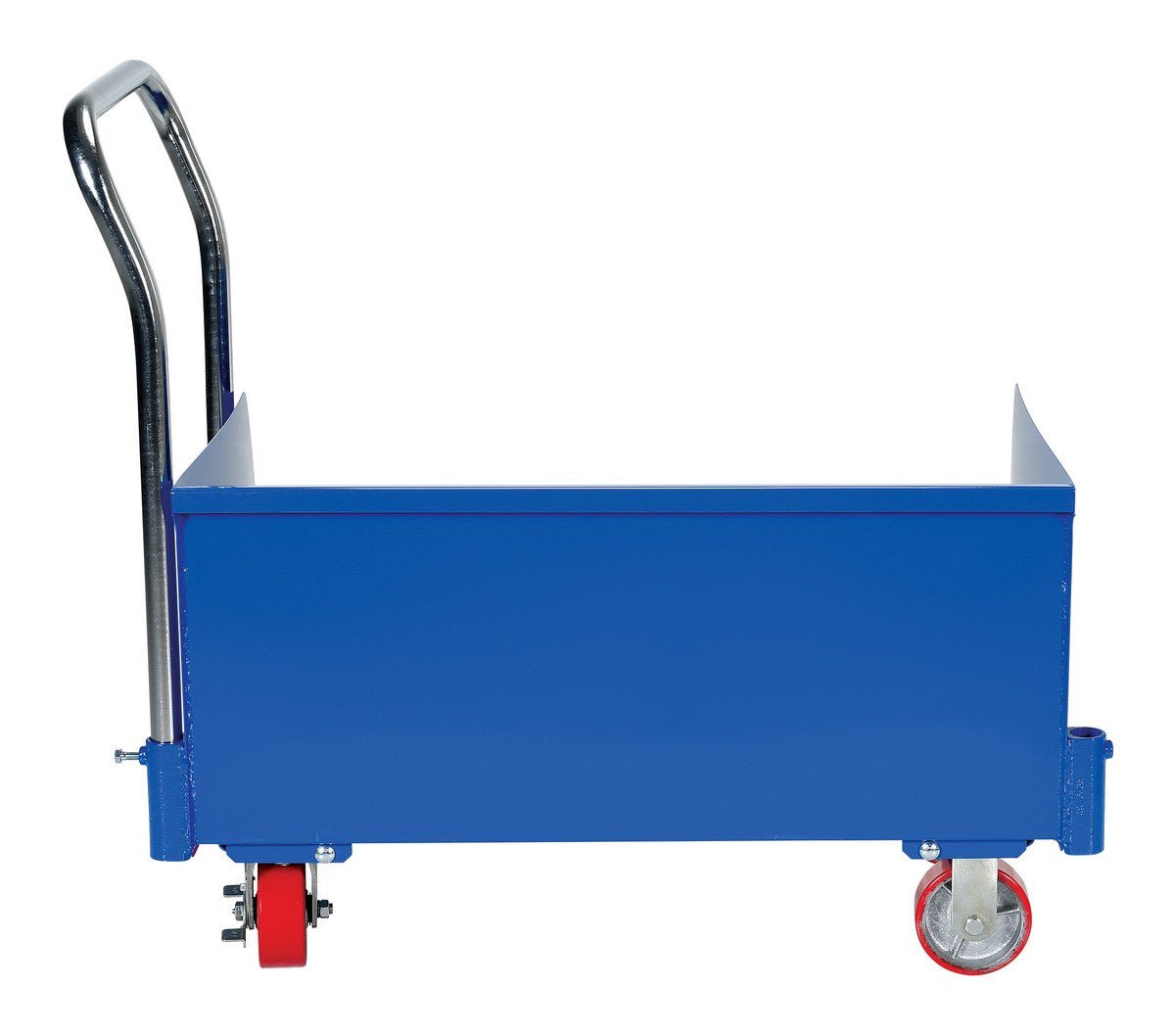

Low Profile Hoppers
SKU: SLPT-24
Low profile design (top chute only 22" high) allows for use under machinery and conveyors.
Tapered side allows for easy loading and unloading. Designed for containment of scrap, chips and waste. Constructed of welded 14-gauge steel for strength and lighter weight. Unit rolls smoothly on (2) rigid and (2) swivel with brakes 5" x 2" poly-on-steel casters. Push handle is removable and may be used at either end. Blue baked-in powder coat finish for added toughness.Options, including welded leak proof seams, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2, leak proof seams included with drainage plugs, available.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
|
Low Profile Hopper |
||||||
| Model | Image | PDF's | Volume Cubic Yards |
Capacity (lbs) | Overall Size (WxLxH) | Wt. (lbs) |
| SLPT-24 |  |

|
1/4 | 1,000 | 26-1/4" x 43-1/16"x 37" | 126 |
| SLPT-33 |  |
|
1/3 | 1,000 | 30-3/16"x 54-1/4" x 37" | 155 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
