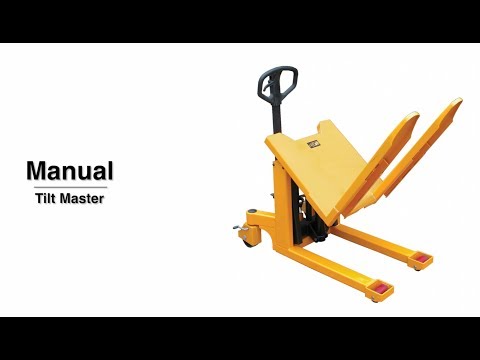

Manual Tilt Master

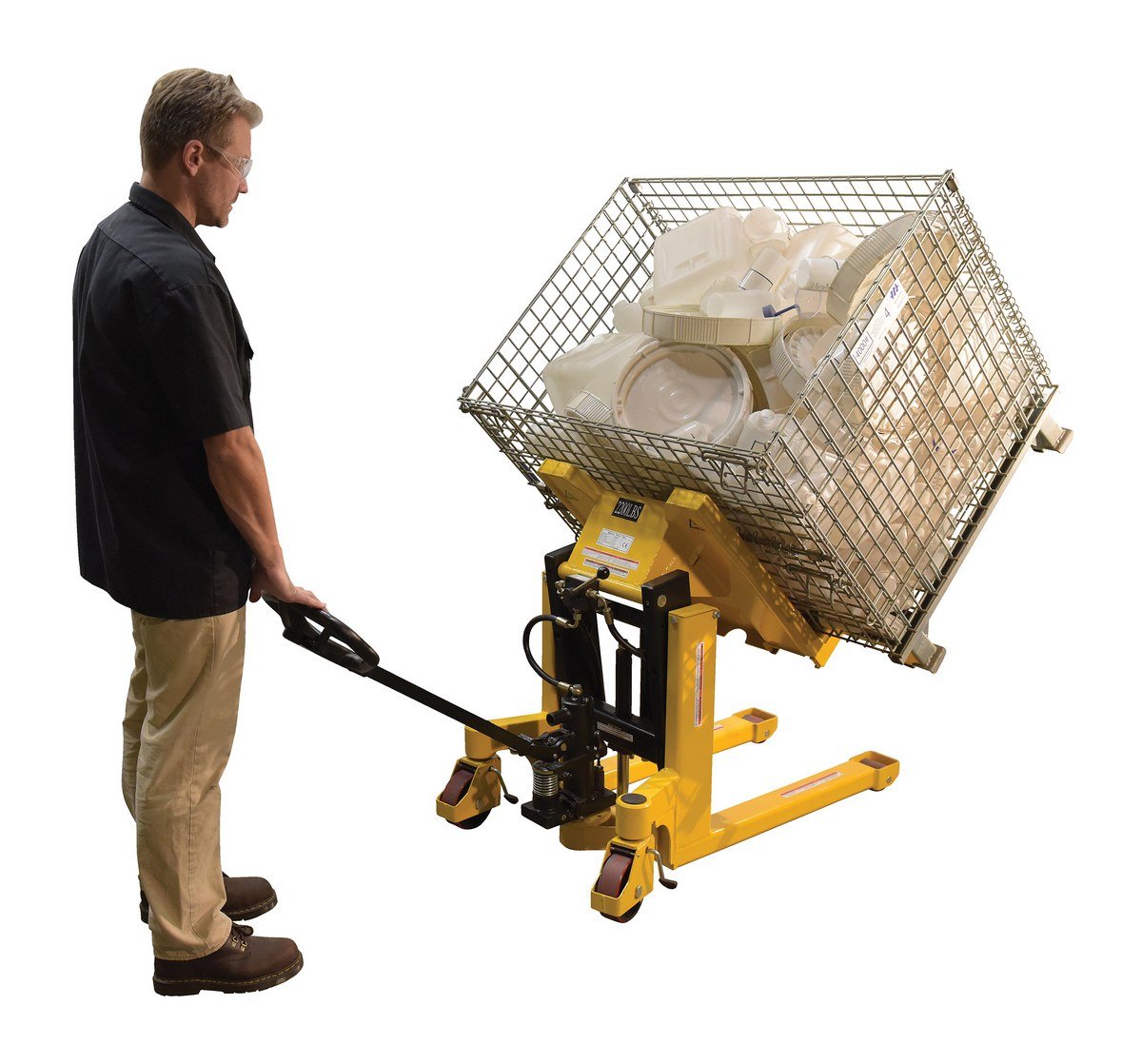

Manual Tilt Master for lifting, tilting, and transporting crates, boxed, and pallets with an open bottom
Designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" polyurethane swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.
| Manual Tilt Master | ||||||||
| Model | Image | PDF's | Capacity (lbs) |
Vertical Lift Height |
Lowered Fork Height |
Fork Length |
Overall Width |
Wt. (lbs) |
| TM-22-M |  |

|
2,200 | 11-1/4" | 3-1/2" | 31-1/2" | 25-1/4" | 425 |
| Stainless Steel Tilt Master | ||||||||
| TM-22-M-SS |  |
|
2,200 | 59-1/2" | 3-1/2" | 31-1/2" | 24-1/4" | 433 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
