Mini Overhead Cantilever Jibs for easily lifting products from cart to workbench

Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Mini Overhead Cantilever Jibs
Model PDF Under
I-Beam To
Ground
Overall
Height
I-Beam
Usable
Length
I-Beam
Flange
(WxL)
Capacity
(lbs)
Wt.
(lbs)

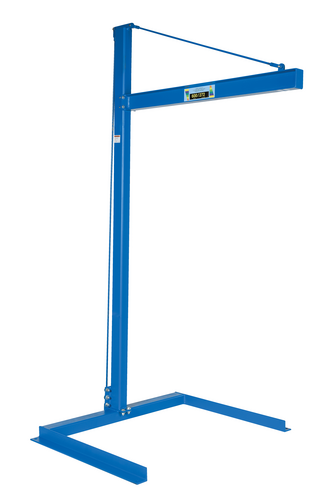

CJIB-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 84" 106-11/16" 54" 2.66"x4.00" 300 318

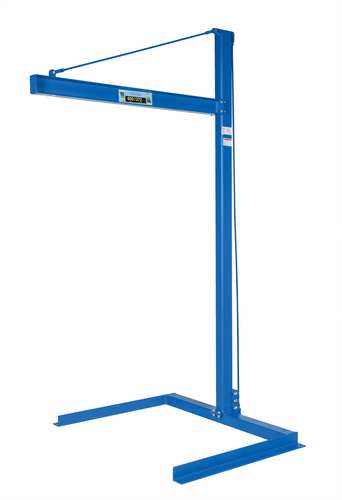

CJIB-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 84" 106-11/16" 54" 2.66"x4.00" 600 327
CJIB-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 78-1/2" 103-11/16" 54" 4.00"x6.00" 1,000 496

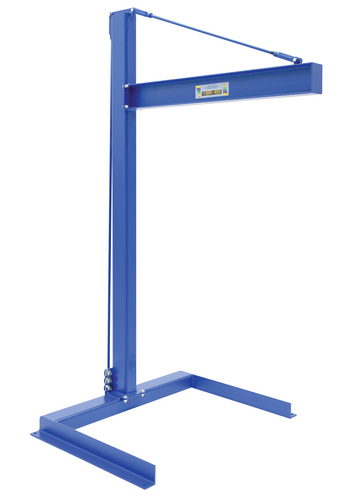

CJIB-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 78-1/2" 103-11/16" 54" 4.00"x6.00" 2,000 512

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
