Multi-Station Transportable Jib Cranes

$2,209⁹³

Shipping calculated at checkout.

Overall Boom Length

72" 96" 120"

Usable Height

71-13/16" 95-13/16" 119-13/16"

Product variants

Safe & Secure Payments.

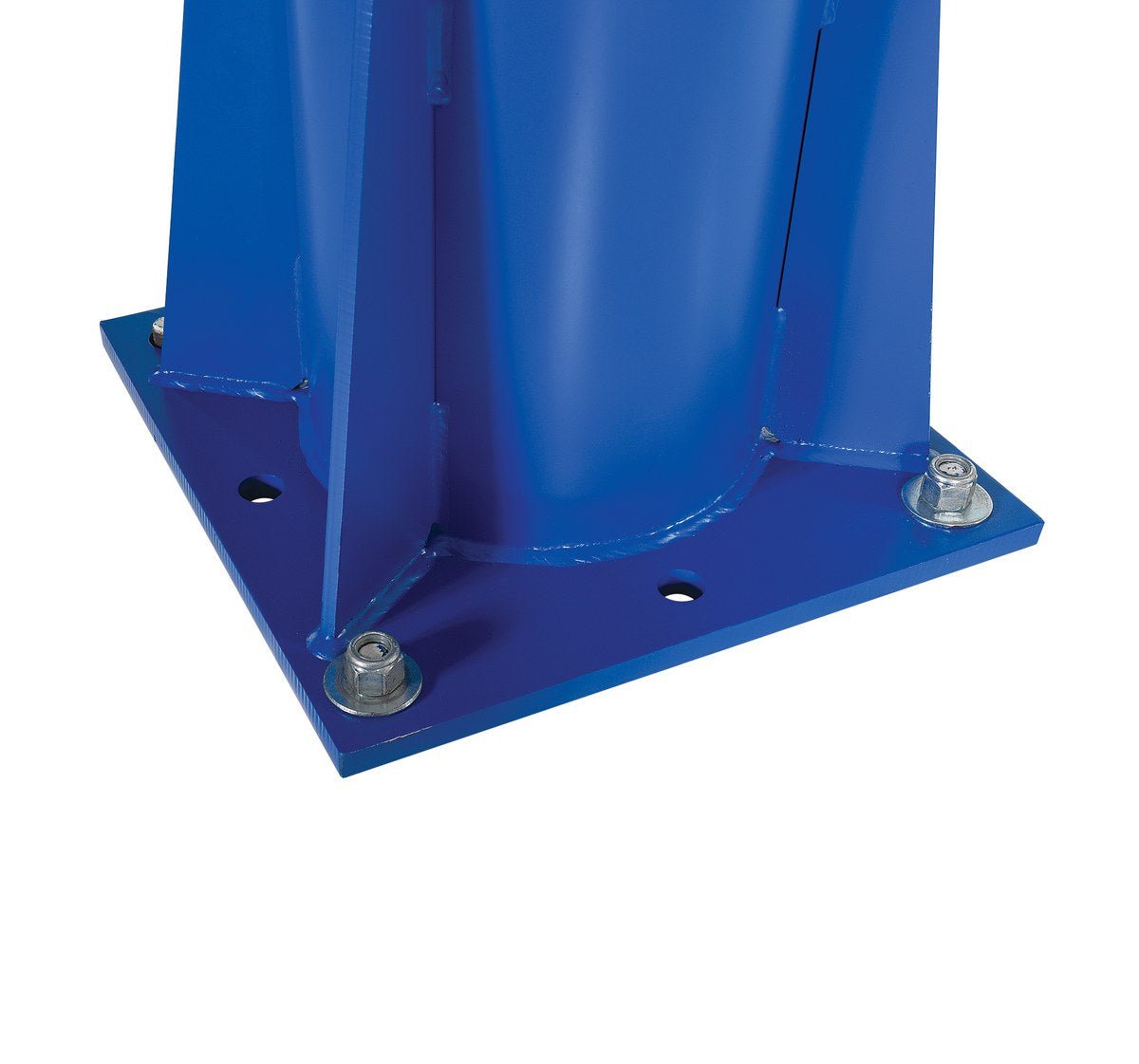

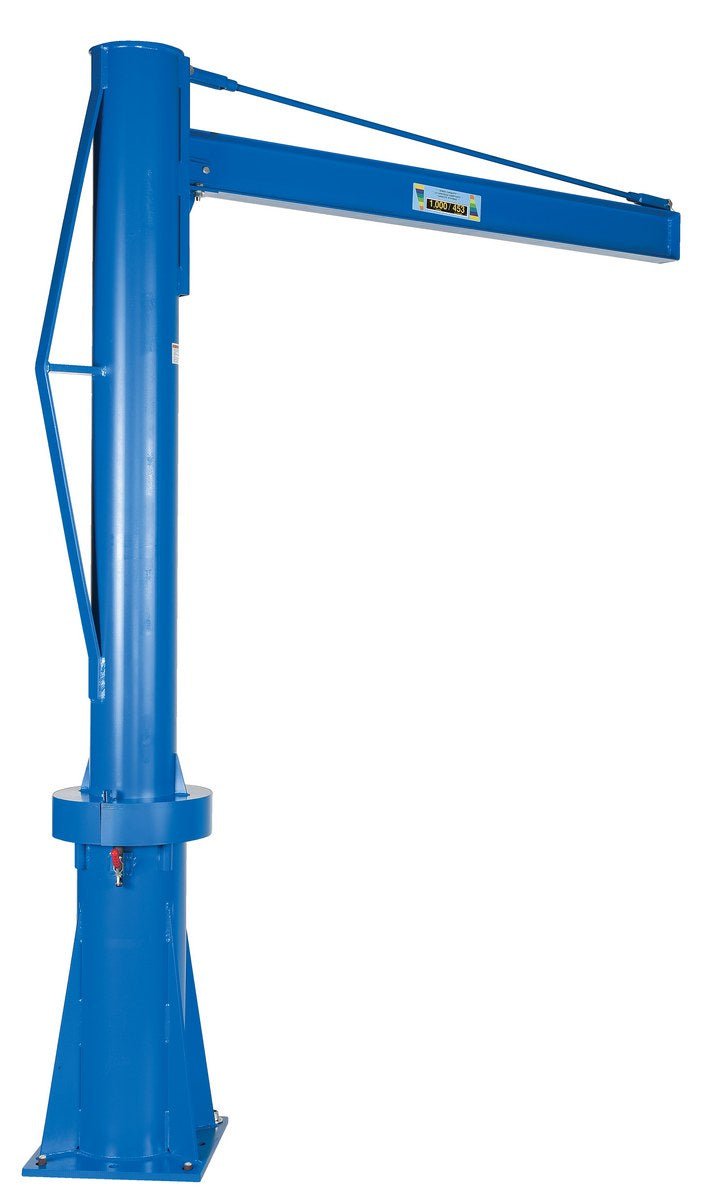

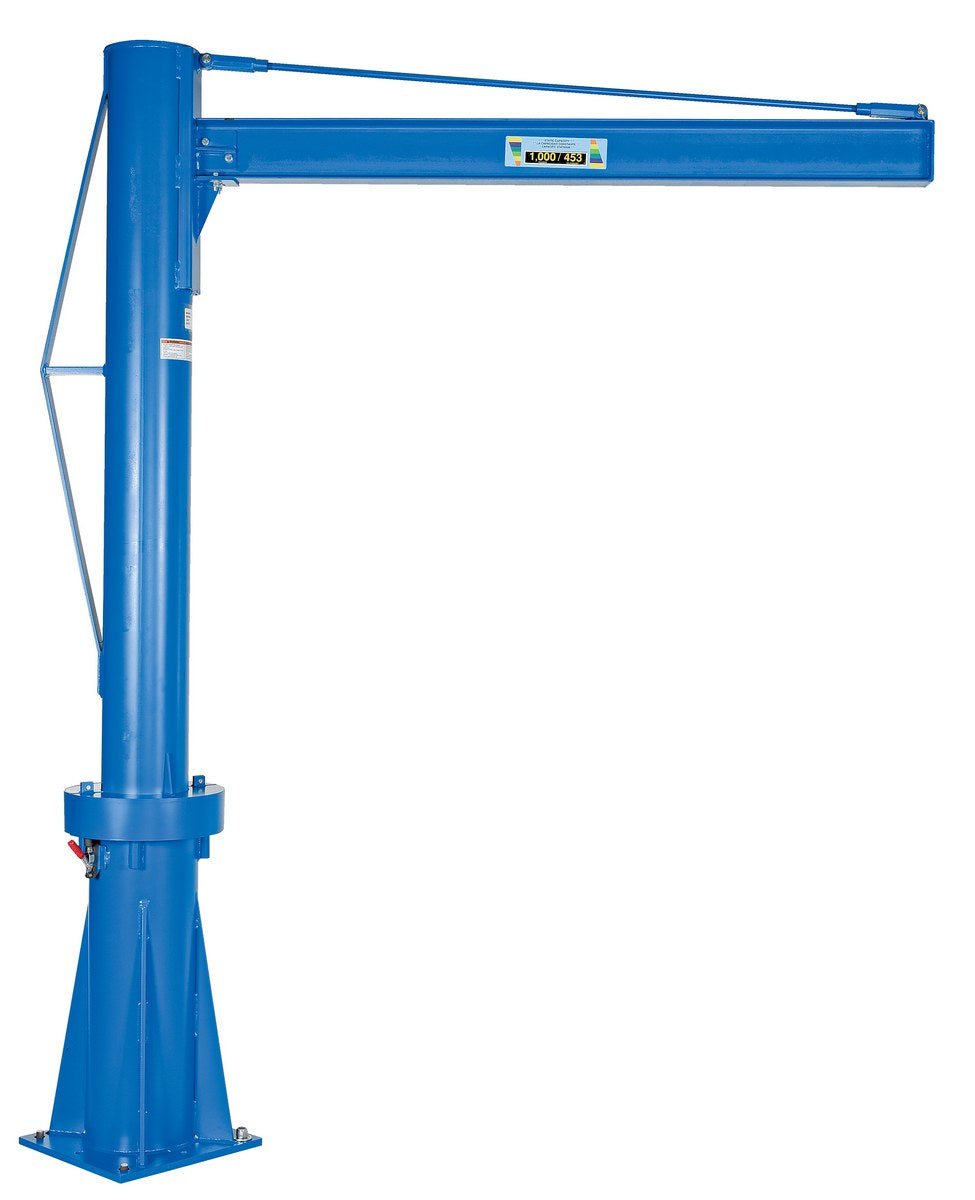

Multi-Station Transportable Jib Cranes designed for use in multiple locations, includes jib crane and one base socket

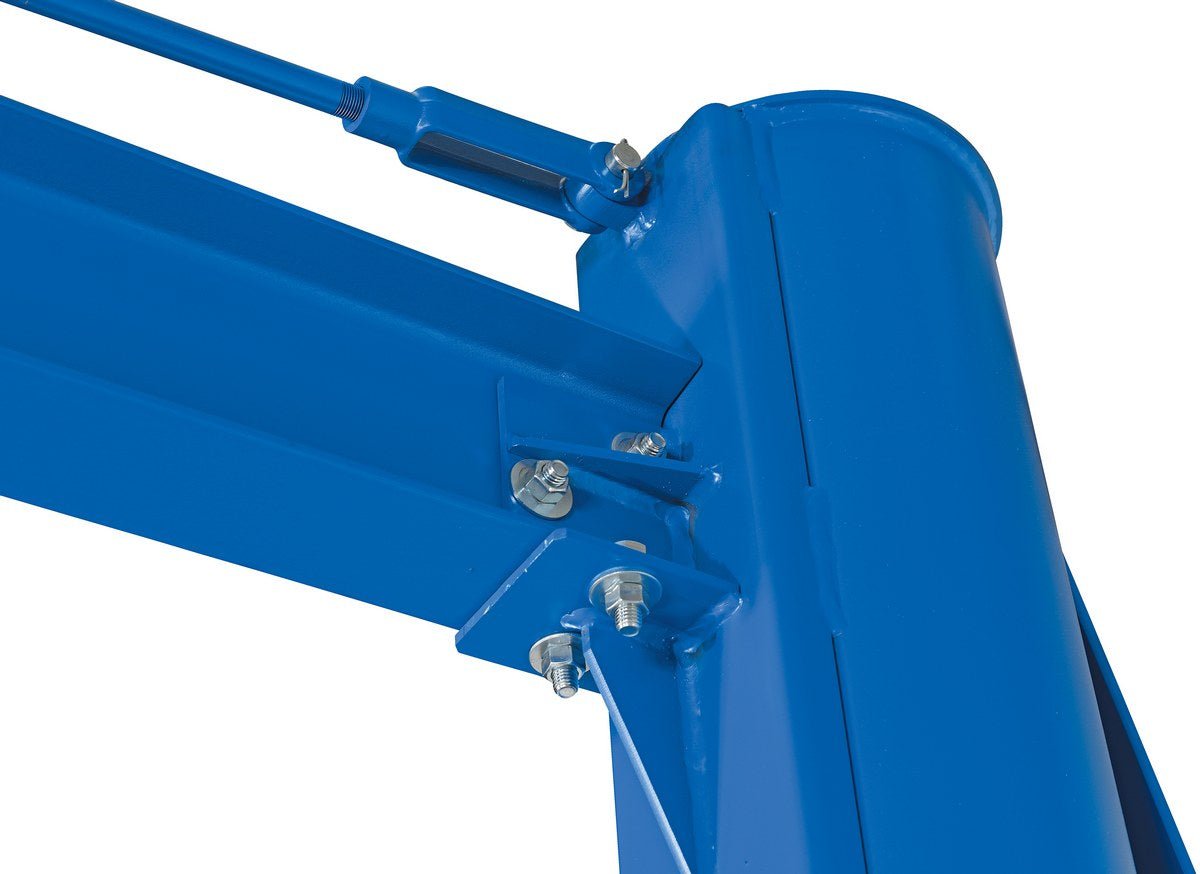

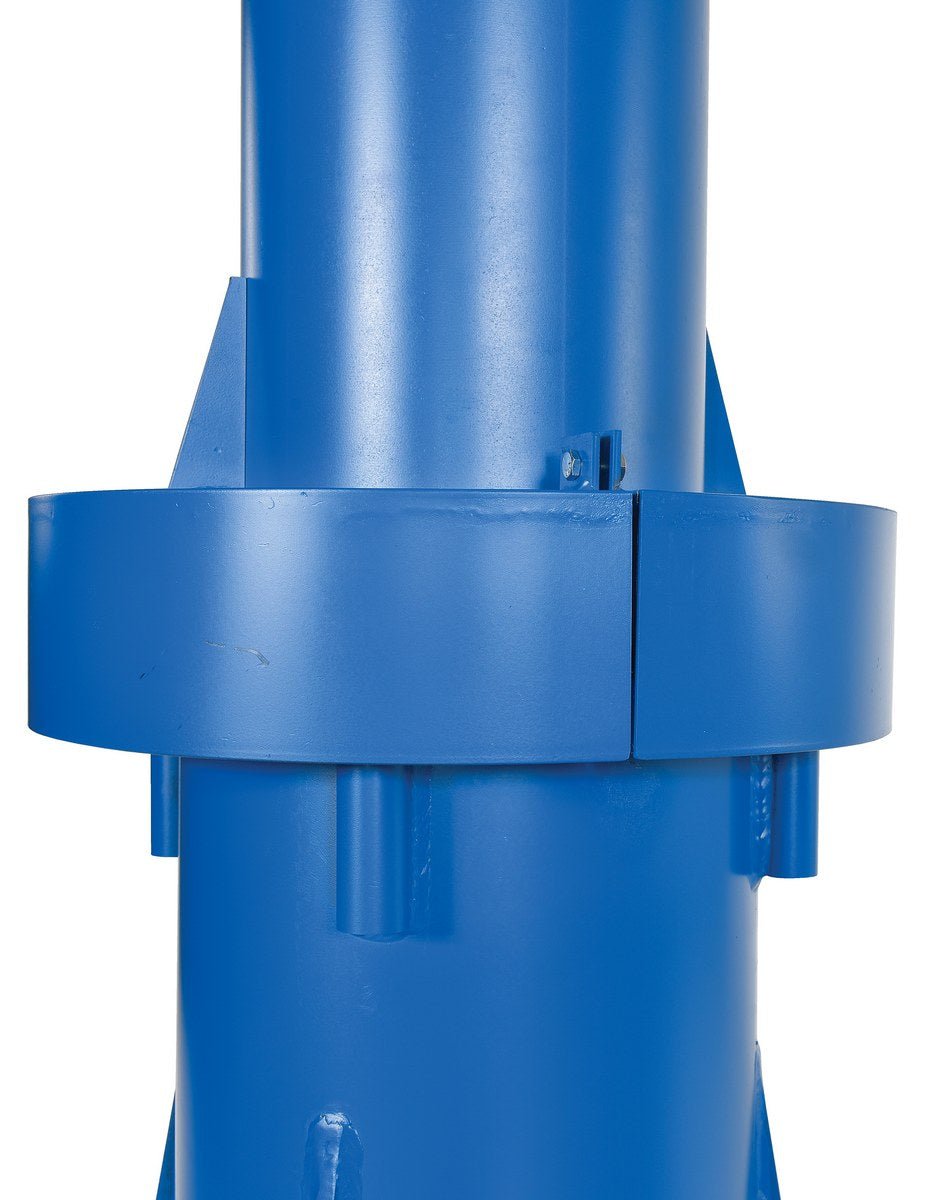

Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately. Painted finish.

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Multi-Station Transportable Jib Cranes
Model	PDF	Overall Boom Length	Usable Height	Capacity (lbs)	Wt. (lbs)
JIB-P-10-6-6		72"	71-13/16"	1,000	603
JIB-P-10-6-8		72"	95-13/16"	1,000	701
JIB-P-10-6-10		72"	119-13/16"	1,000	731
JIB-P-10-8-6		96"	71-13/16"	1,000	606
JIB-P-10-8-8		96"	95-13/16"	1,000	683
JIB-P-10-8-10		96"	119-13/16"	1,000	773
JIB-P-10-10-6		120"	71-13/16"	1,000	710
JIB-P-10-10-8		120"	95-13/16"	1,000	790
JIB-P-10-10-10		120"	119-13/16"	1,000	805
