Quadra-Tilt Rotator 200/300 - MRTA Compact Production Lifter Series

Lifter comes with adjustable pad arms, allowing it to attach a variety of shapes and sizes of material in quick succession. A tilt-assist makes tilting heavy loads safe and efficient.

Specifications

Stock#	Model#	Description	Capacity	Power
97456AR	MRTA6LP6FAC	AC, outlet powered lifter.	300 lbs [135 kg]	AC
97457AR	MRTA6LP6FAIRS	SPECIAL ORDER: Compressed air powered lifter.	300 lbs [135 kg]	Air
97456AS	MRTA6LP6DCS	SPECIAL ORDER: Mobile, battery powered lifter.	300 lbs [135 kg]	DC
97445AR	MRTA4LP6FACS	SPECIAL ORDER:AC, outlet powered lifter.	200 lbs [90 kg]	AC
97446AR	MRTA4LP6FAIRS	SPECIAL ORDER:Compressed air powered lifter.	200 lbs [90 kg]	Air
97445AS	MRTA4LP6DCS	SPECIAL ORDER:Mobile, battery powered lifter.	200 lbs [90 kg]	DC

In addition to continuous 360° rotation, this Powr-Grip vacuum lifter features multi-position pad arms and our innovative Quadra-Tilt linkage, for nearly effortless tilting of materials with various shapes and sizes.

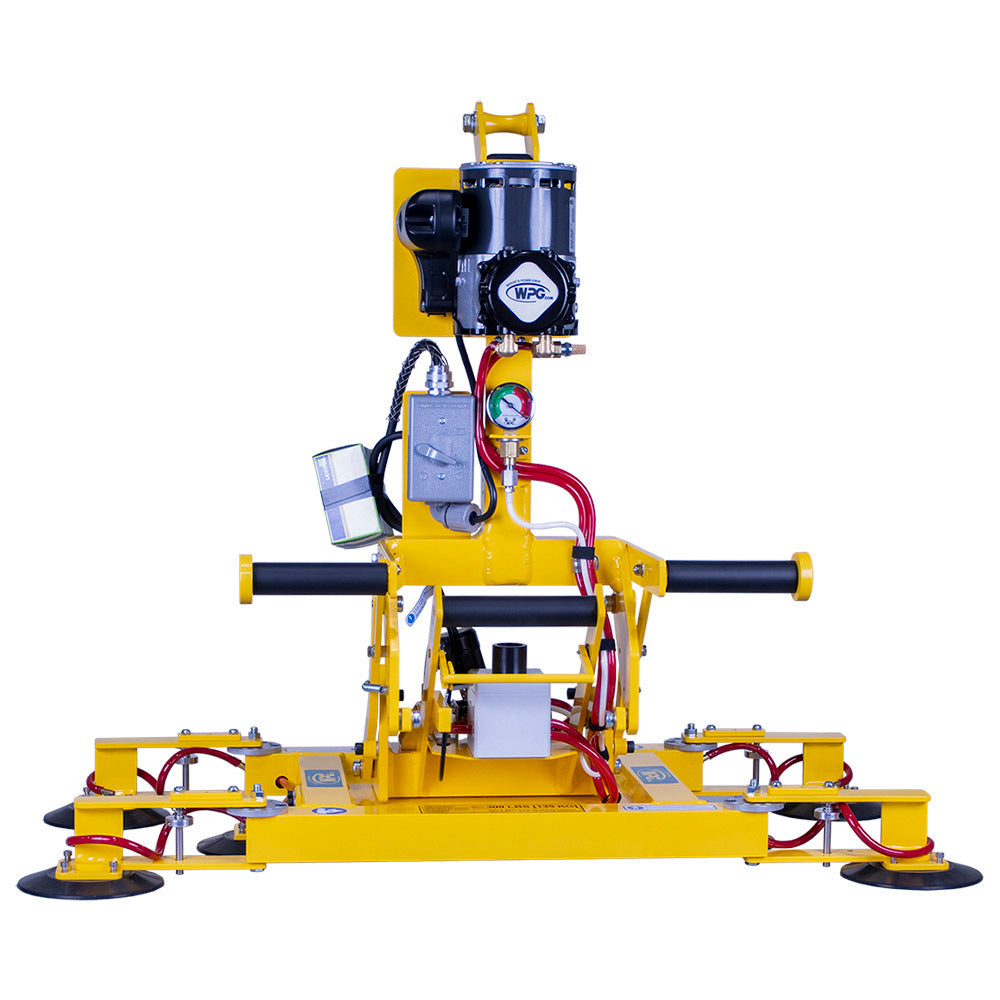

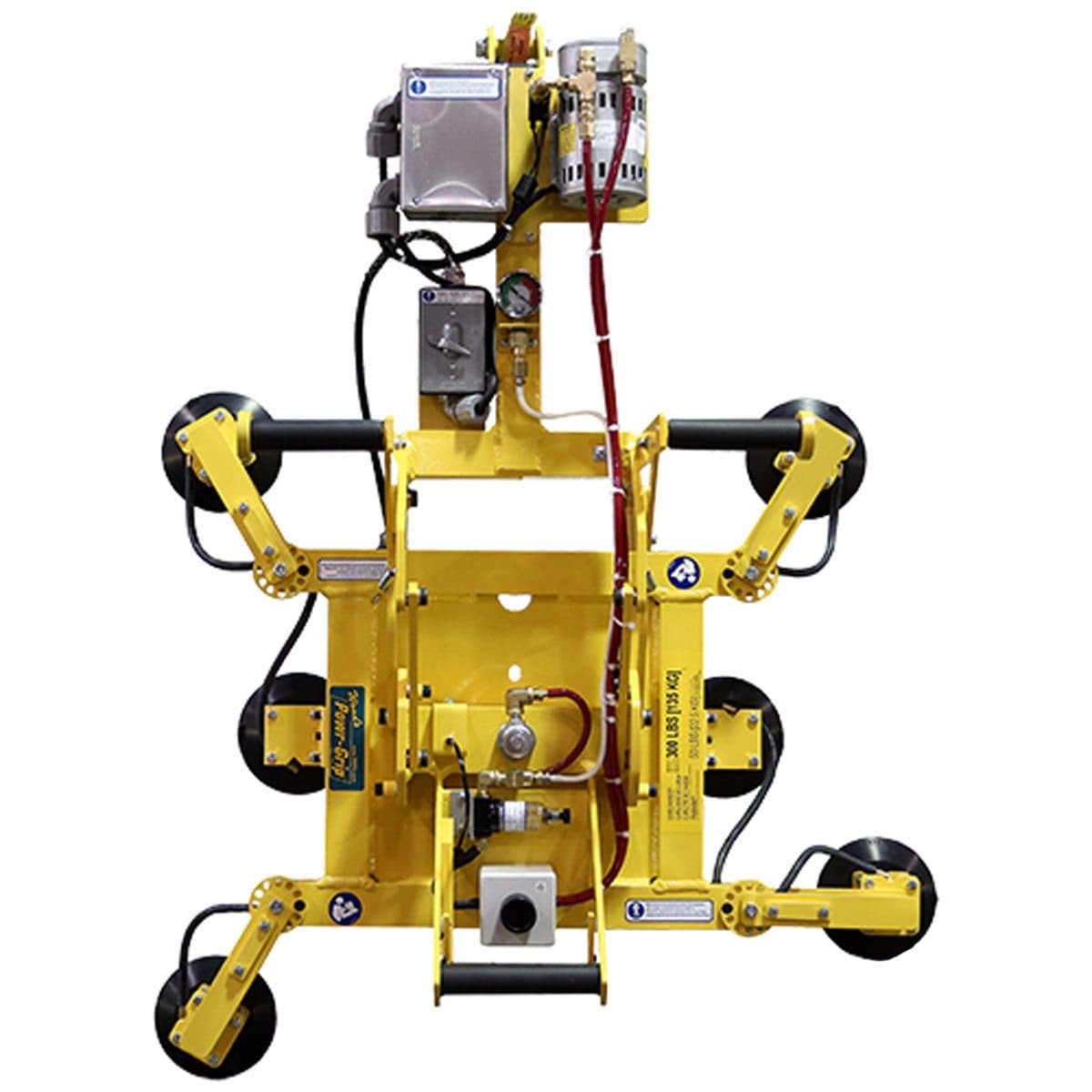

MRTA6LP6FACS Vacuum Lifter shown with optional Vacuum Loss Warning Buzzer.

The Quadra-Tilt Vacuum Lifters feature an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees.

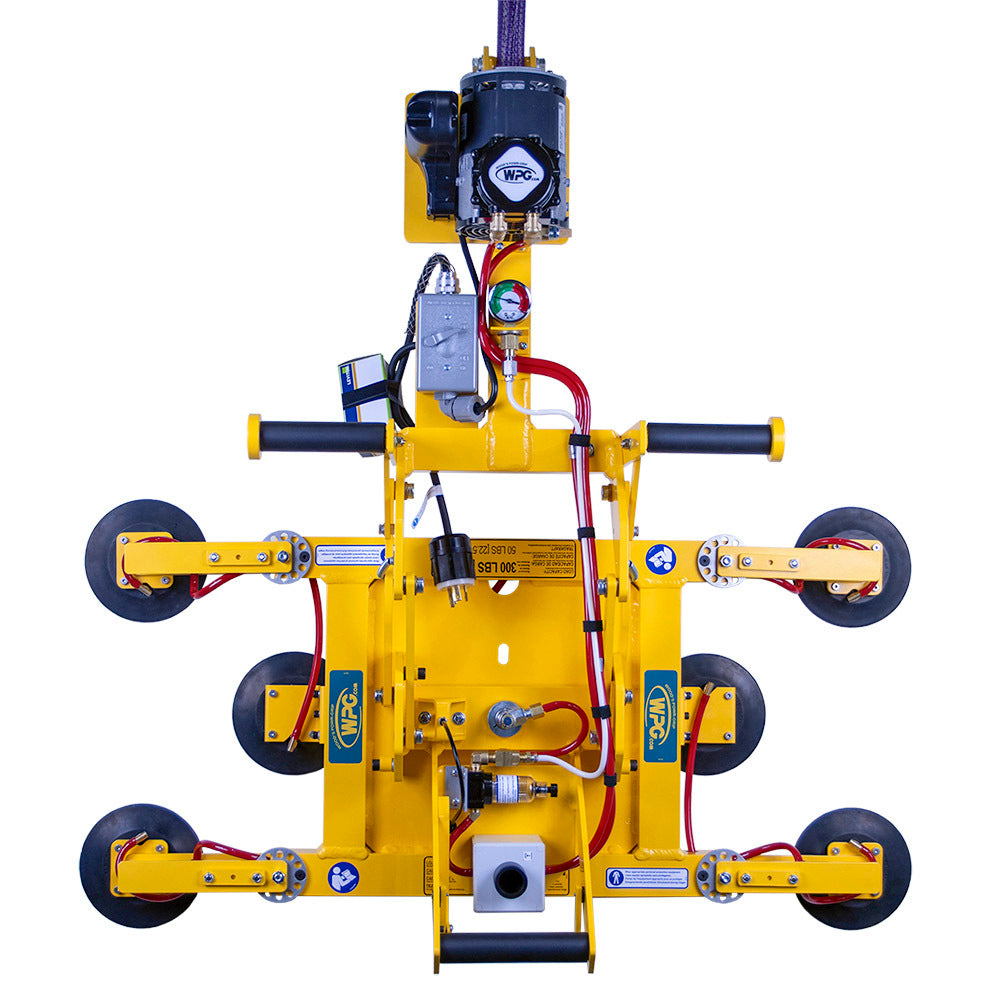

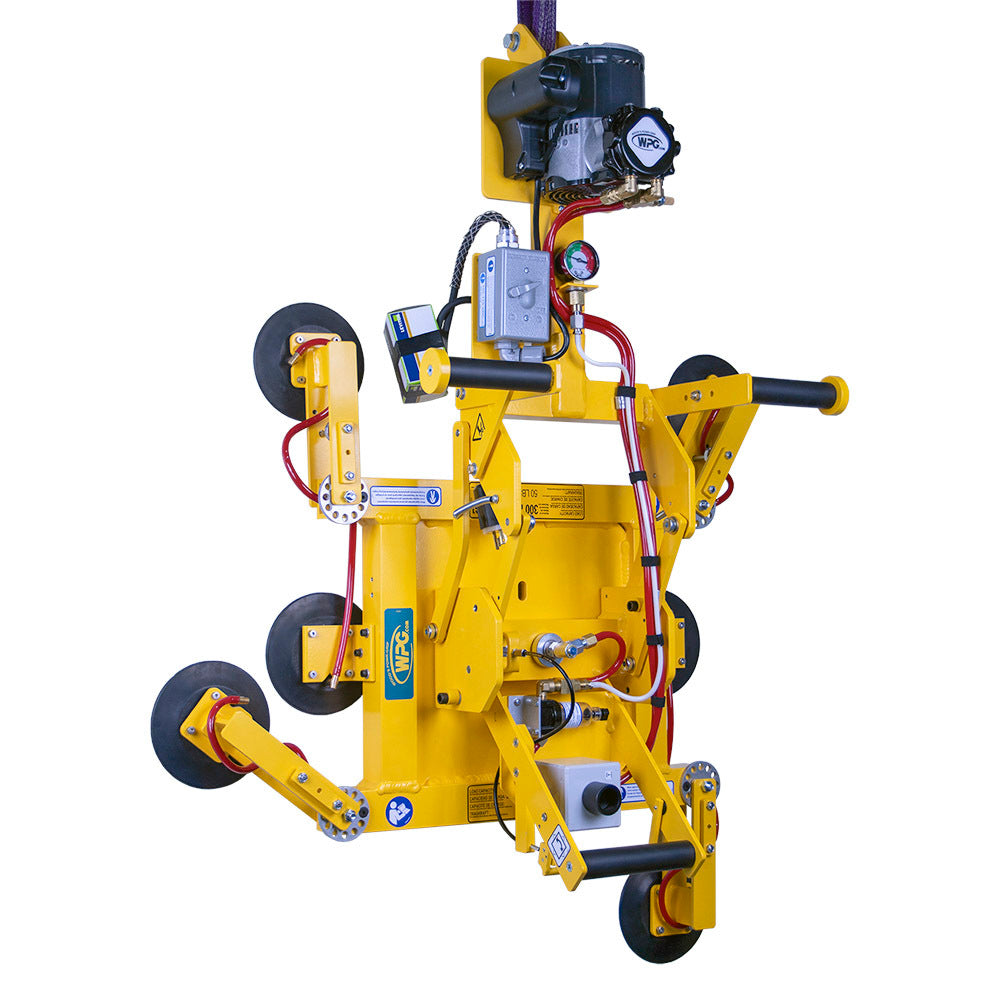

The MRTA6LP6FACS vacuum lifter also features 360° manual rotation and multiposition vacuum pad arms that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because vacuum pads can attach at virtually any location on the load.

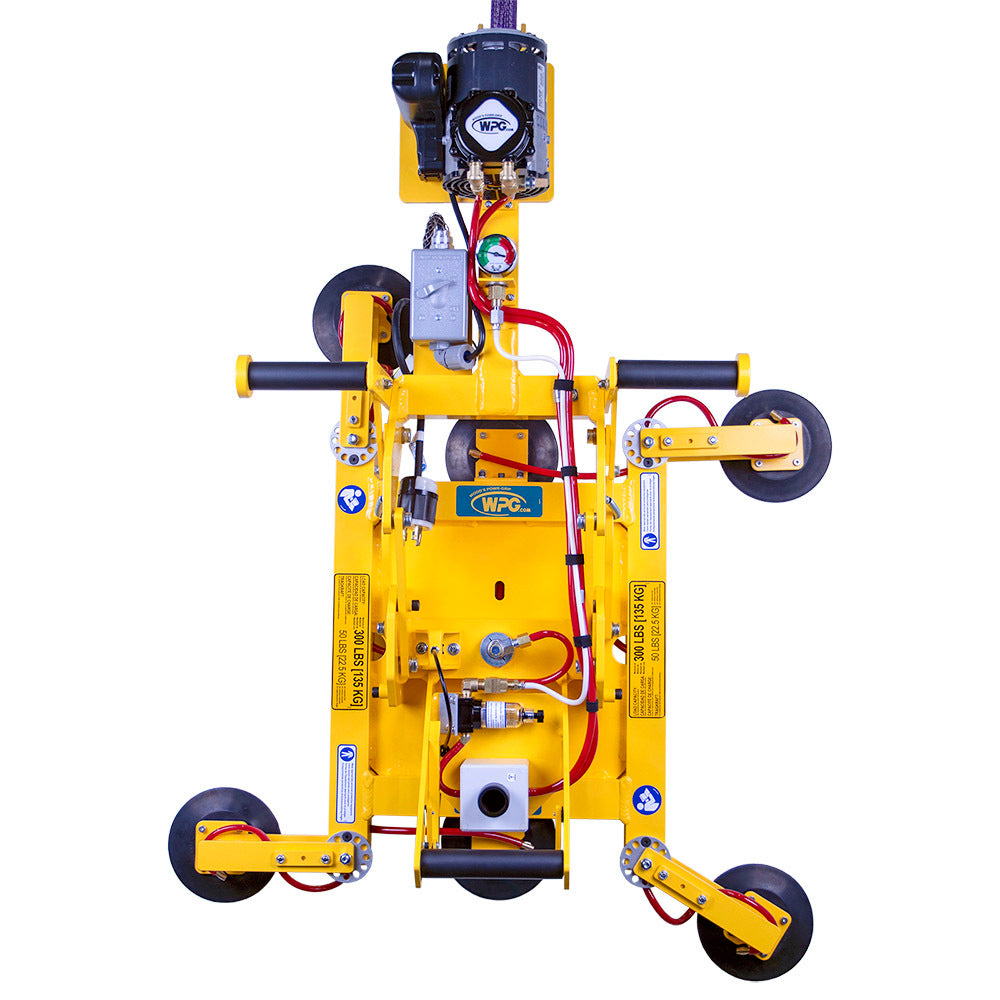

Adjustable Pad Spread:
Length:
Min: 26-1/2" [67 cm],
Max: 41-1/4" [105 cm]
Width:
Min: 14-1/4" [36 cm],
Max: 35-1/4" [89 cm]

Number / Size of Vacuum Pads:
6 / 6" [15 cm] diameter pads

Maximum Load Capacity:
300 lbs [135 kg]

Weight of Lifter:
71 lbs [33 kg]

Standard Operating Power:
120 volts AC, 60 hertz, 3 amps (other voltages available)

Apply / Release Times:
3 seconds / 2 seconds (approx.)

Load Movement:
Manual rotation, 360° edgewise, with locking at each quarter point
Assisted manual tilt, 90° between upright and flat

Standard Features:
Vacuum gauge
Vacuum line filter
Movable pad arms
Spring-mounted vacuum pads
Twist-lock electrical plug
Multiple handles for easy load positioning
Blow-off for quick release



Load Capacity	300 lbs [135 kg]
Per-Pad Capacity	50 lbs [23 kg]
Pad Model	LP6F
AC Power	Standard
AC Volts	120
AC Amps	3
Hertz	50/60
Phase	1
Apply Time (AC)	3 Seconds
Release Time (AC)	2 Seconds
Weight (Air Powered)	71 lbs
Manipulation	Continuous
Tilt	90°
Tilt Power	Assisted Manual
Rotation	360°
Rotation Power	Manual
Max Pad Spread (L)	41.25" [105 cm]
Min Pad Spread (L)	26.5" [67 cm]
Max Pad Spread (W)	35.25" [89 cm]
Min Pad Spread (W)	14.25" [36 cm]
Max Height	43.25" [110 cm]
Min Ambient Temp	32° F
Min Load Temp	32° F
Max Ambient Temp	100° F
Max Load Temp	100° F
