Rotary Air/Hydraulic Scissor Lift Tables
Rotary Air/Hydraulic Scissor Lift Tables - 24"x48" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Safe & Secure Payments.
Rotary Air/Hydraulic Scissor Lift Tables

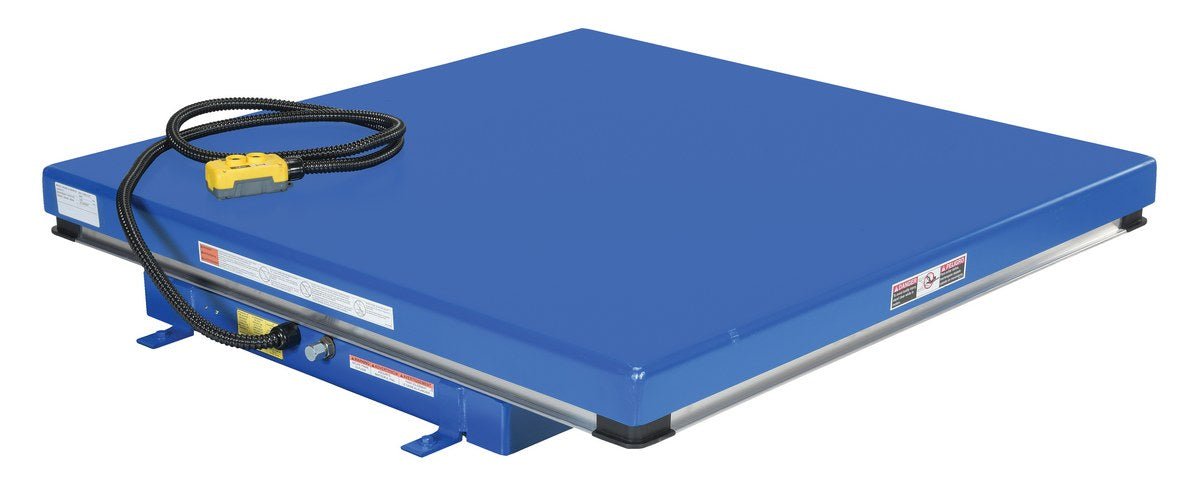

Utilize the convenience of factory air to power these Vestil Rotary Air/Hydraulic Scissor Lift Tables
Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.
| Rotary Air Hydraulic Scissor Lift Tables | |||||||
| Model | Image | PDF's | Platform Size (WxL) | Lowered Height | Raised Height |
Capacity (lbs) |
Weight (lbs) |
| AHLT-2448-3-43 |  |

|
24"x48" | 7" | 43" | 3,000 | 689 |
| AHLT-3060-3-43 |  |
|
30"x60" | 7" | 43" | 3,000 | 787 |
| AHLT-4048-3-43 |  |
|
40"x48" | 7" | 43" | 3,000 | 769 |
| AHLT-4848-3-43 |  |
|
48"x48" | 7" | 43" | 3,000 | 780 |
| AHLT-4872-3-43 |  |
|
48"x72" | 7" | 43" | 3,000 | 937 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
