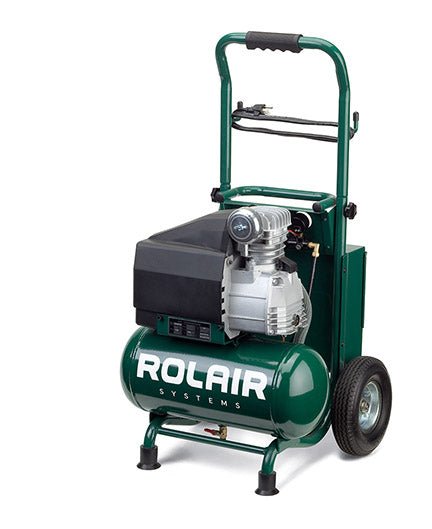

Hand Carry Air Compressor VT20TB - Sale

Hand Carry Air Compressors

The VT20TB was designed with portability and convenience in mind. With heavy-duty flat-free tires and a built-in toolbox, you’ll have no problem moving your most important equipment around the job site. The low speed, continuous-duty motor-pump delivers 4.2 CFM @ 90 PSI.

ABOUT THE PUMP

---

• ROLAIR Quality
• Heavy Duty
• Single Stage
• Ball Bearings
• Cast-Iron Cylinder
• Metal Filter/Silencer with Replaceable Filter Element
• Stainless-Steel Reed Valves and Splash Lubrication Ensure Longer Life

ABOUT THE MOTOR

---

• 2 HP
• 1700 RPM
• S-1 Rated for Continuous Duty
• Low Amp Draw
• Overload Protection with Manual Reset
• 115 Volt
• 60 Hz
• Heavy-Duty/Industrial-Grade with Ball Bearings for Greater Durability

STANDARD EQUIPMENT

---

• 100% Duty-Cycle Motor
• Regulator with Air Line Pressure Gauge
• Universal Quick Disconnect with Plug
• 12 oz. Crankcase Pre-filled with Oil
• 110/135 PSI Operating Pressure
• Factory Tested
• Safety Relief Valve

SPECIFICATIONS

---

HORSE POWER	2 HP
CFM DISPLACED	5.5 CFM
CFM DELIVERED	4.2 CFM @ 90 PSI
PUMP/MOTOR RPM	1700 RPM
OVERLOAD PROTECTION	Yes (Manual Reset Standard)
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	10 oz.
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	1
TANK CAPACITY	3.2 Gallons
L X W X H	18"x19"x37"
DECIBEL RATING	74 dBA
COUNTRY OF ORIGIN	Compressor Origin.pdf
SHIPPING WEIGHT	80 lb.
SHIPPING DIMENSIONS (L X W X H)	20" x 20" x 25"
