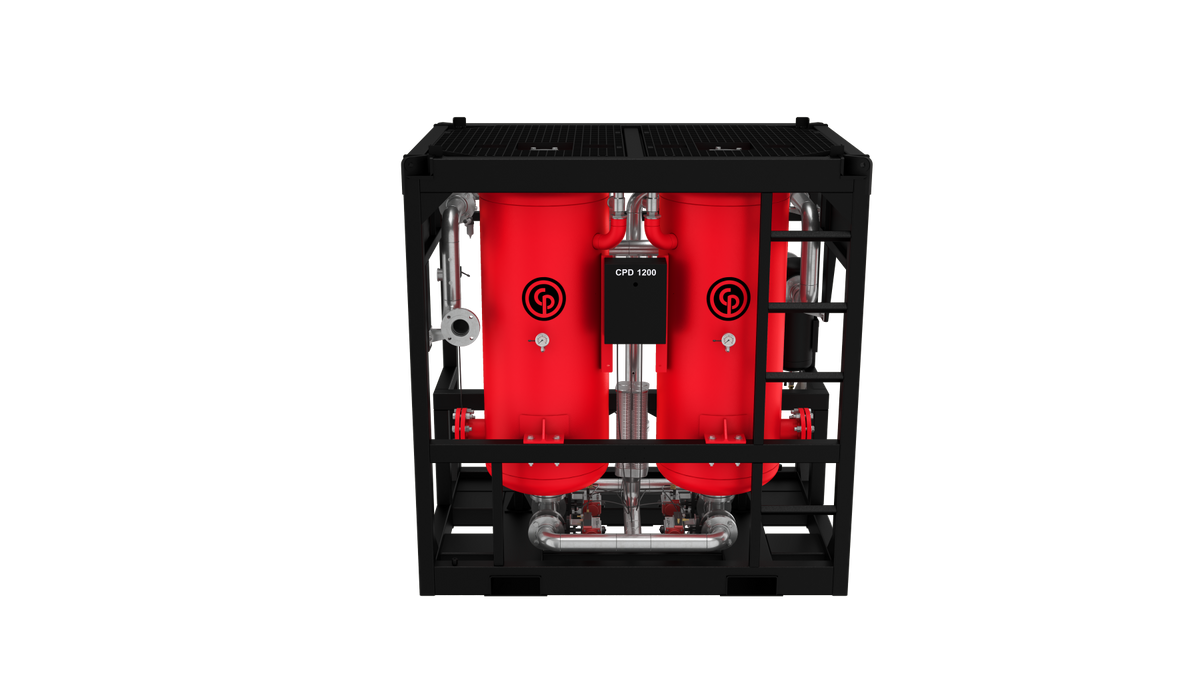

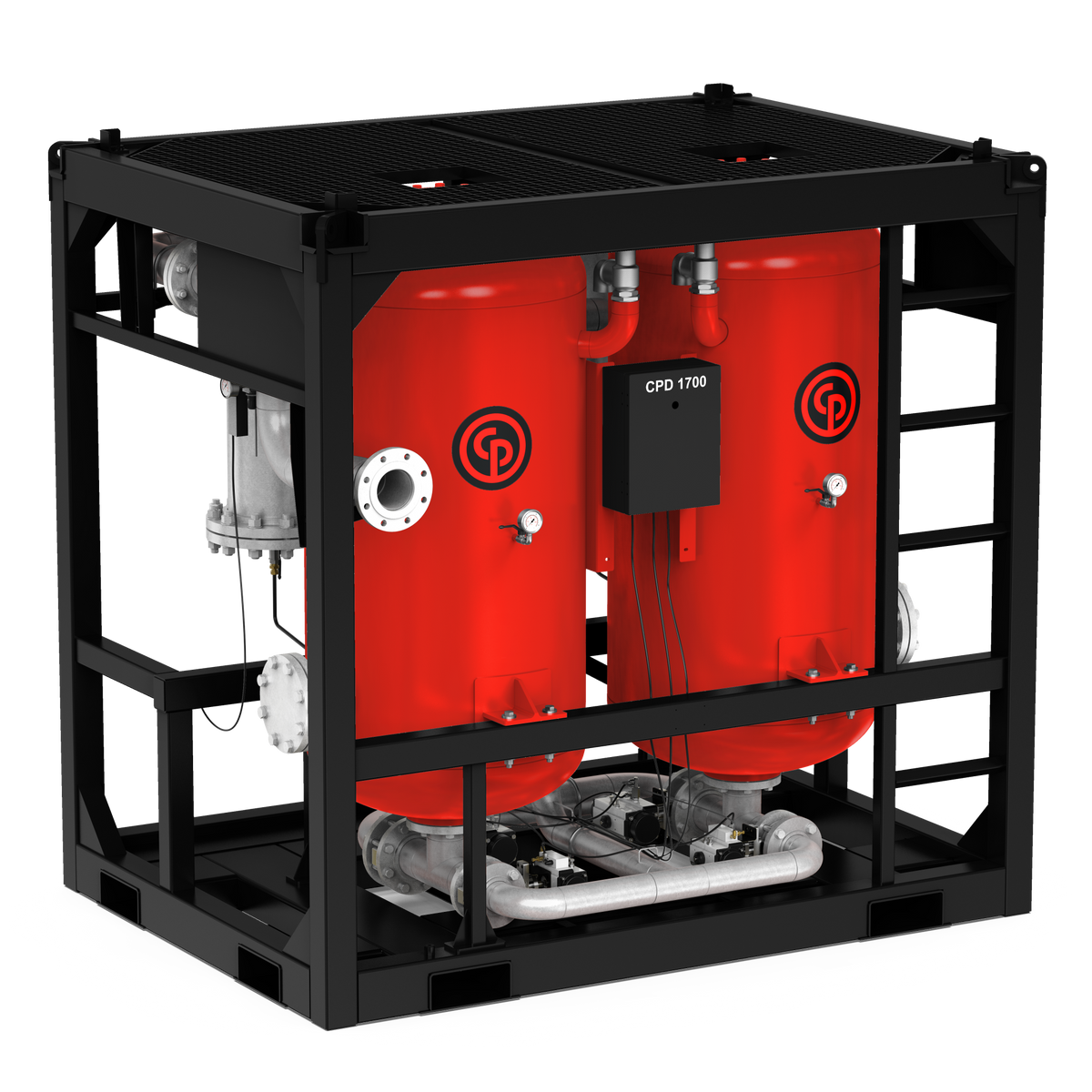

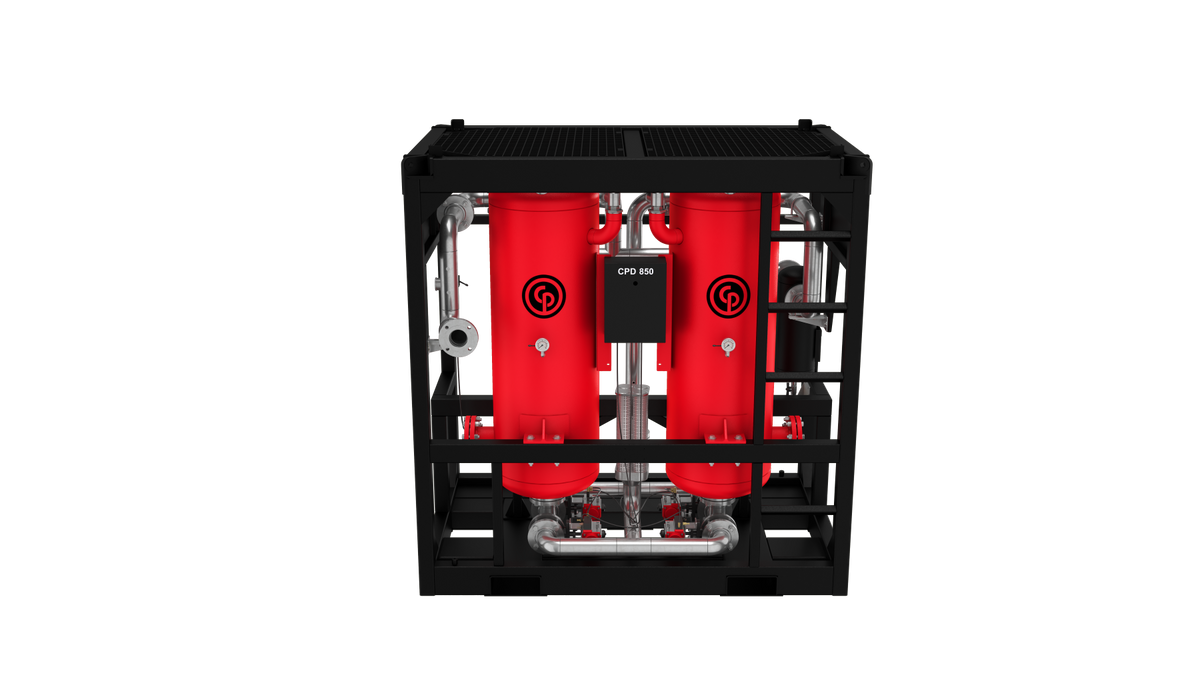

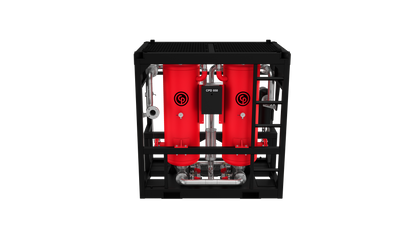

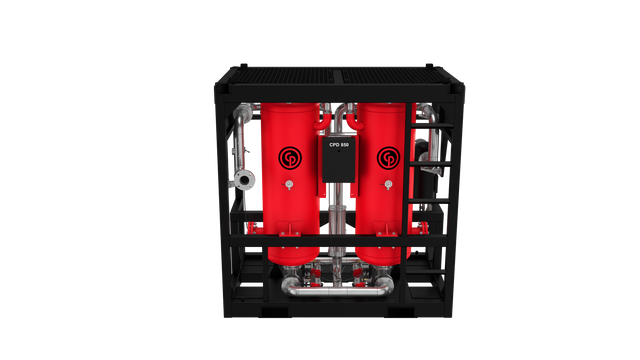

CPD Portable Desiccant Dryers

The CPD Portable Desiccant Dryers series is designed for demanding construction, industrial, and jobsite applications requiring high-quality, moisture-free compressed air.

The CPD 850-230, CPD 1200-230, and CPD 1700-230 achieve a standard dew point of -40°F, delivering high desiccant quality air across a range of flow and pressure requirements.

Built for plug-and-play simplicity, the CPD series operates on 100% pneumatic controls, requiring no external power. Each unit features a stackable crash frame with lifting points and a sonic nozzle. A comprehensive filtration system, including a water separator and oil coalescing filter at the inlet and a dust filter at the outlet, protects downstream equipment and tooling. Durable stainless-steel valves, silencers, optimized galvanized piping, and a heavy-duty frame with integrated fork pockets round out the standard configuration for reliable, low-maintenance operation in the field.

Key Features

• High desiccant quality, standard dew point of -40°F
• Plug & play simplicity — 100% pneumatic controls, no power needed
• Stackable crash frame with lifting points
• Sonic nozzle
• Comprehensive filtration system
• Water separator and oil coalescing filter at inlet
• Dust filter at outlet
• Durable stainless-steel valves
• Silencers
• Optimized galvanized piping
• Heavy-duty frame with integrated fork pockets

Applications / Recommended Use

• Construction jobsites
• Industrial applications
• Utility work
• Instrument-quality/moisture-sensitive air applications
• Paint prep and coating work
• Sandblasting
• Pipeline and pneumatic tool support requiring dry air
• Applications requiring plug-and-play, no external power air treatment
• Rental fleet and mobile jobsite operations

Product Specifications

Frequently Asked Questions (FAQ)

Q: What dew point do the CPD Portable Desiccant Dryers achieve? A: All three models — CPD 850-230, CPD 1200-230, and CPD 1700-230 — achieve a standard dew point of -40°F through high desiccant quality.

Q: Do these dryers require external power? A: No. The CPD series is designed for plug-and-play simplicity with 100% pneumatic controls, requiring no power to operate.

Q: What are the flow and pressure capabilities of each model? A: The CPD 850-230 delivers 880–1430 CFM across 100–200 PSI. The CPD 1200-230 delivers 1200–1944 CFM across the same pressure range. The CPD 1700-230 delivers 1700–2754 CFM across the same pressure range.

Q: What filtration is included with the CPD series? A: Each unit includes a comprehensive filtration system with a water separator and oil coalescing filter at the inlet, plus a dust filter at the outlet, to protect downstream equipment and deliver clean, dry air.

Q: How are the units built for durability and mobility? A: The CPD series features durable stainless-steel valves, silencers, optimized galvanized piping, and a heavy-duty frame with integrated fork pockets. The stackable crash frame with lifting points supports easy handling and transport.
