PORTABLE COMPRESSORS - CPS 175

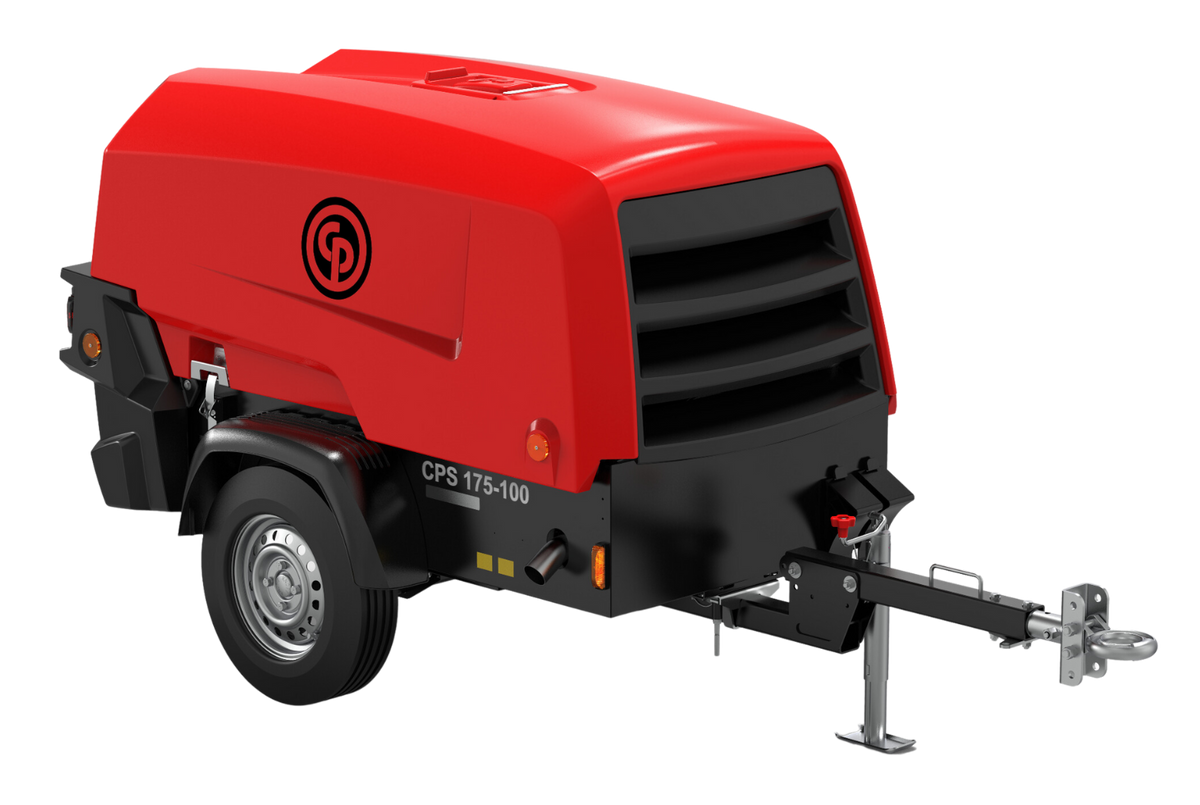

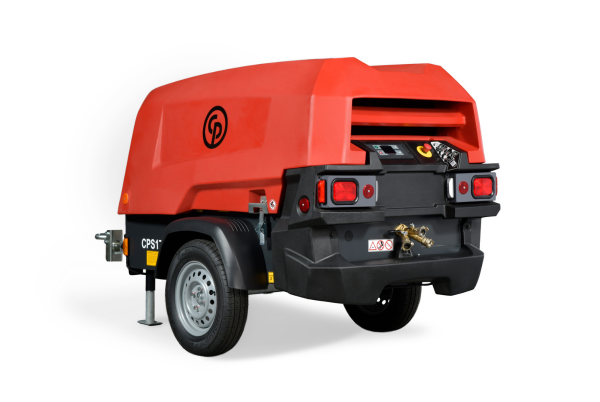

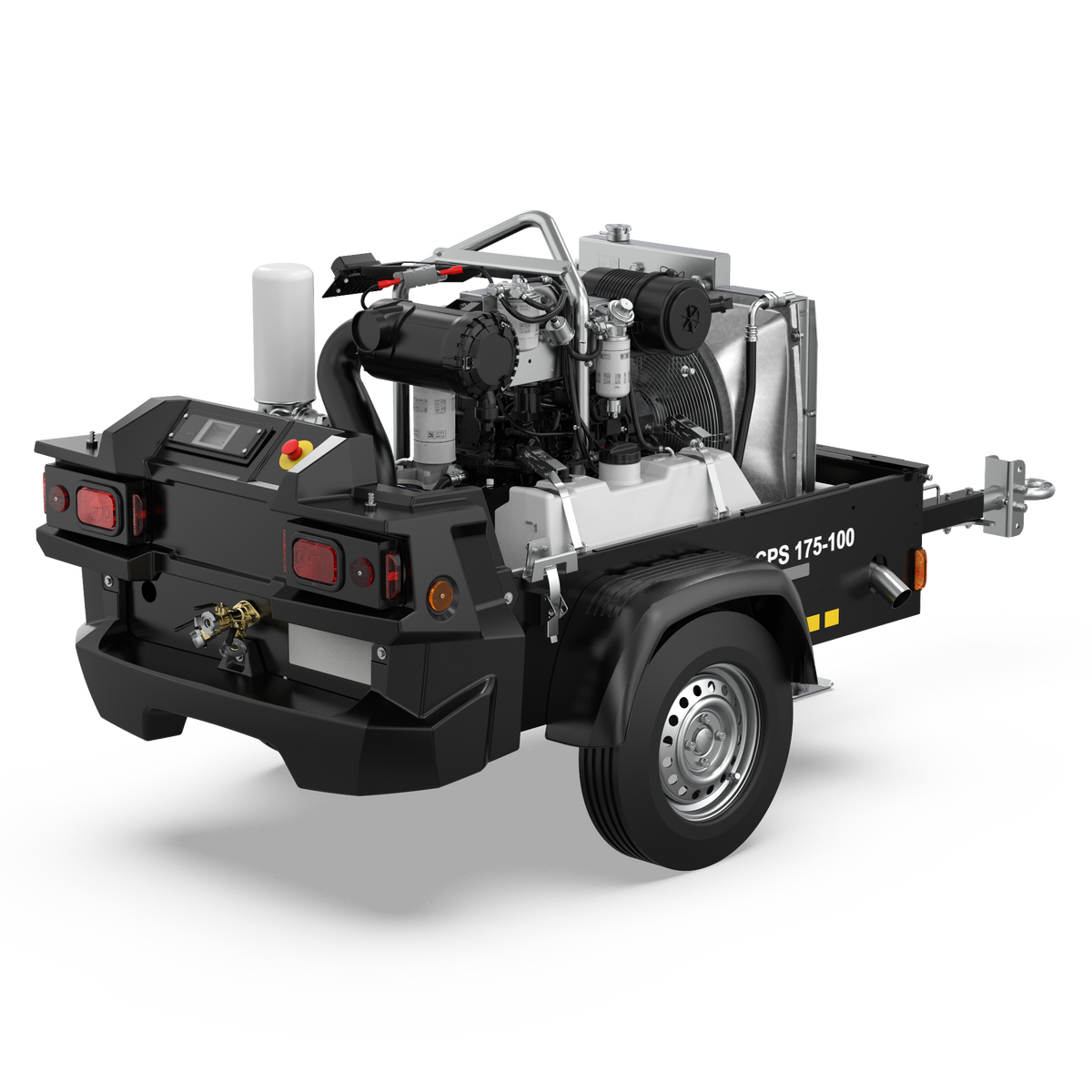

The CPS 175-100 T3 is a portable diesel air compressor designed for demanding construction, industrial, utility, and jobsite applications.

 Powered by a Kubota V1505 Tier 3 Final diesel engine, it delivers 170 CFM at 100 PSI with a working pressure range of 80–125 PSI.

The unit features a spillage-free frame, heavy-duty battery, synthetic compressor oil, and a thermostatic bypass valve for reliable compressor oil system performance. Its RedRock double-wall polyethylene canopy and three-layer painted frame provide durable protection in demanding environments.

The CPS 175-100 T3 also includes a DOT towing package with 13-inch wheels, a heavy-duty torsion axle, adjustable-height 3-inch pintle towing eye, road lights, VIN, and adjustable jack stand for convenient transportation between jobsites.

Key Features

• Kubota V1505 Tier 3 Final diesel engine
• Thermostatic bypass valve on compressor oil system
• Synthetic-based compressor oil
• 1,000-hour / 2-year compressor oil service interval
• Minimum starting temperature of -4°F
• Heavy-duty battery
• Spillage-free frame
• RedRock double-wall polyethylene canopy
• Three-layer painted frame
• DOT towing package
• Road lights with 4-way flat plug
• Adjustable-height 3-inch pintle towing eye
• 13-inch wheels
• Heavy-duty torsion axle
• 1,875 lb. rated torsion axle capacity
• VIN included
• Adjustable jack stand
• No brakes

Applications / Recommended Use

• Construction jobsites
• Industrial applications
• Utility work
• Road and infrastructure projects
• Pneumatic tool operation
• Mobile compressed-air applications
• Demanding outdoor jobsite environments

Product Specifications

Frequently Asked Questions (FAQ)

Q: What engine does the CPS 175-100 T3 use?
A: The compressor is powered by a Kubota V1505 Tier 3 Final diesel engine.

Q: What is the air delivery and operating pressure?
A: The CPS 175-100 T3 provides 170 CFM at 100 PSI, with a pressure range of 80–125 PSI.

Q: What type of compressor oil does this model use?
A: It uses synthetic-based compressor oil with a listed service interval of 1,000 hours or 2 years.

Q: What is the minimum starting temperature?
A: The CPS 175-100 T3 has a minimum starting temperature of -4°F.

Q: What is included in the DOT towing package?
A: The package includes 4-way flat-plug road lights, an adjustable-height 3-inch pintle towing eye, 13-inch wheels, a heavy-duty torsion axle rated at 1,875 lbs., VIN, and an adjustable jack stand. The listed configuration does not include brakes.
