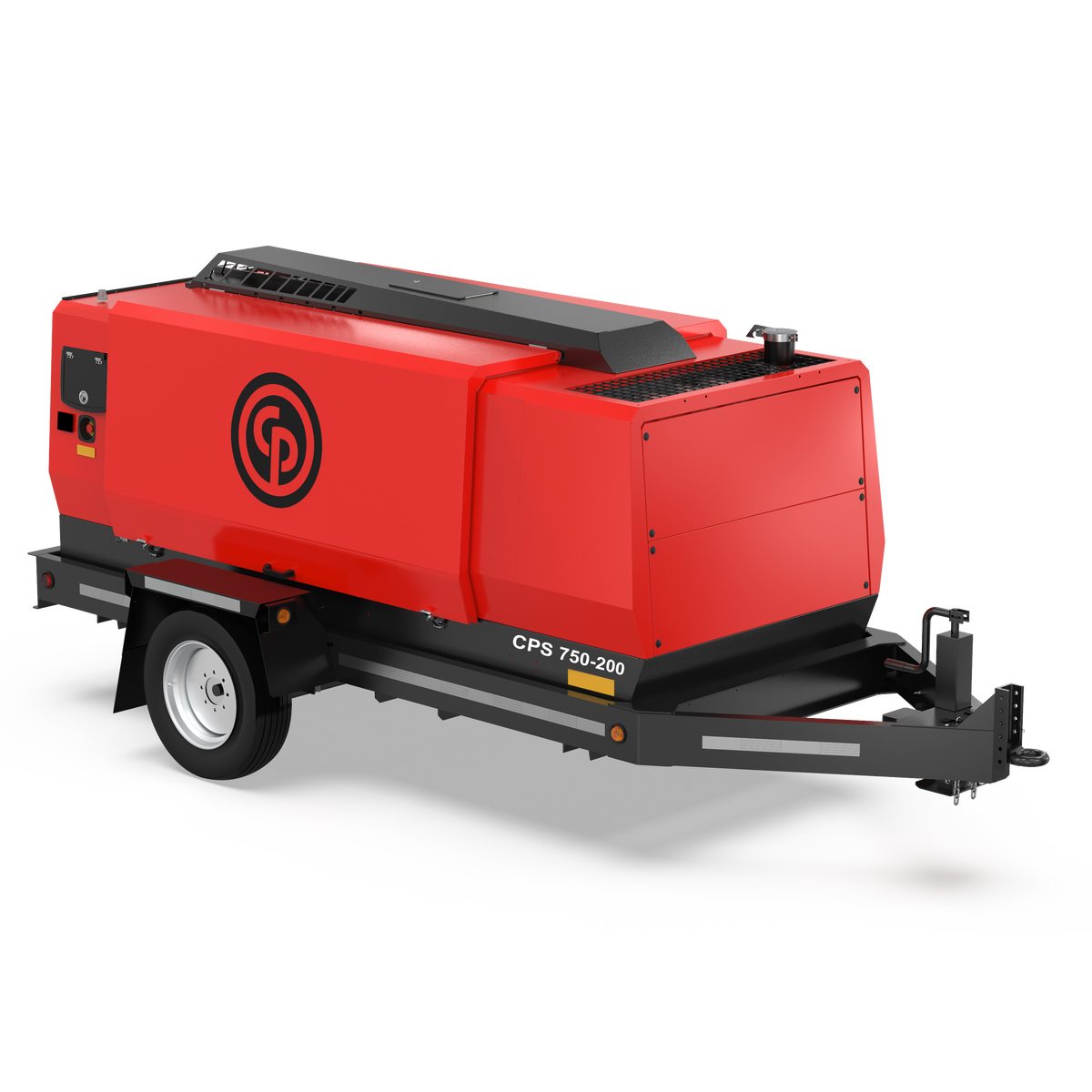

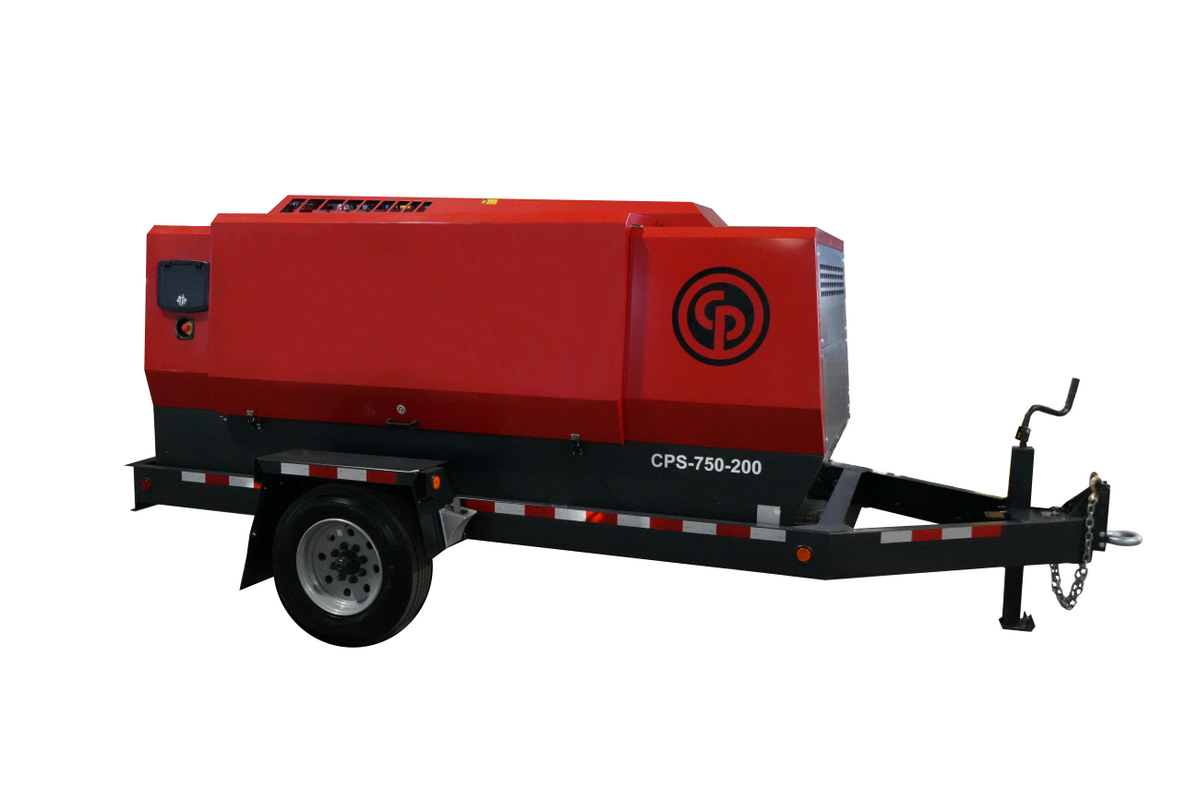

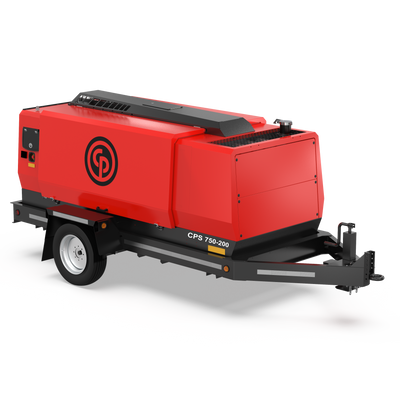

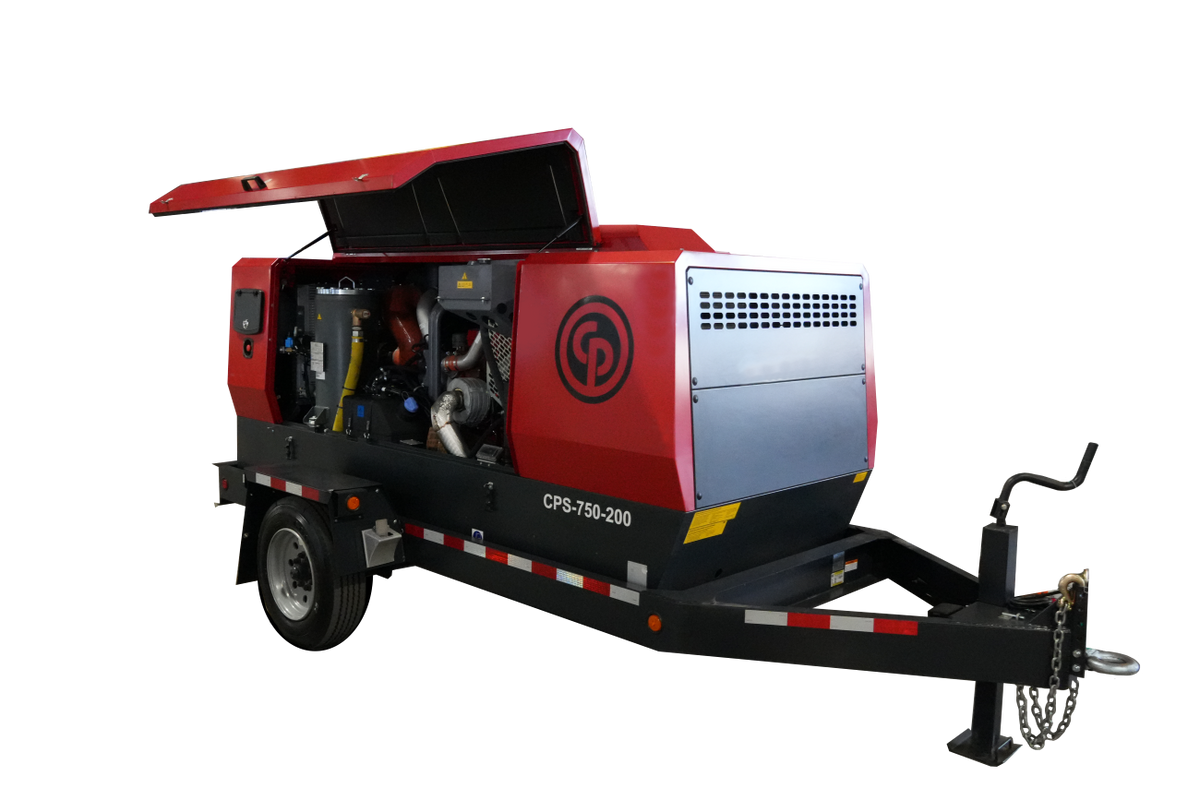

PORTABLE COMPRESSORS - CPS 750-200

The CPS 750-200 is a heavy-duty portable diesel air compressor designed for demanding construction, industrial, utility, and jobsite applications.

Powered by a Cummins B6.7 235 HP Tier 4 Final diesel engine, it provides multiple flow and pressure settings to accommodate a wide range of pneumatic equipment and operating requirements.

The CPS 750-200 features 110% spill-free containment with multiple remote drains and a cold climate package for reliable operation in demanding conditions. The compressor includes synthetic compressor oil, a thermostatic bypass valve, glow plugs, a diesel-powered block heater, and heavy-duty batteries.

Multiple pressure regulation allows the operating pressure to be adjusted from 78 to 200 PSI in 2 PSI increments, providing flexibility for different pneumatic applications. The CP Xc2004 controller provides operational monitoring, diagnostics, and safety warning/shutdown functions, including protection for high engine temperature and low fuel conditions.

The CPS 750-200 also includes a DOT towing package with road lights, an adjustable-height 3-inch pintle towing hitch, 17.5-inch wheels, safety chains, and electric brakes for convenient mobile jobsite transportation.

Key Features

• Cummins B6.7 235 HP Tier 4 Final diesel engine

• T4F emissions rating

• 110% spill-free containment

• Multiple remote drains

• Cold climate package

• Synthetic compressor oil (GenOil S)

• Thermostatic bypass valve

• Glow plugs

• Diesel-powered block heater

• Heavy-duty batteries

• Multiple pressure regulation system

• Adjustable pressure from 78 to 200 PSI

• Pressure adjustment in 2 PSI increments

• CP Xc2004 controller

• Operational monitoring and diagnostics

• Safety warning and shutdown functions

• High engine temperature protection

• Low fuel monitoring

• DOT towing package

• Road lights with 7-pin RV plug

• Adjustable-height 3-inch pintle towing hitch

• 17.5-inch wheels

• Safety chains

• Electric brakes

Applications / Recommended Use

• Construction jobsites

• Industrial applications

• Utility work

• Road and infrastructure projects

• Pneumatic tools

• Heavy-duty compressed-air applications

• Mobile jobsite operations

• Applications requiring adjustable air pressure

• Applications requiring multiple air-flow settings

• Cold-weather jobsite operations

Product Specifications

Frequently Asked Questions (FAQ)

Q: What engine powers the CPS 750-200?
A: The CPS 750-200 is powered by a Cummins B6.7 235 HP Tier 4 Final diesel engine.

Q: What are the available flow and pressure settings?
A: The CPS 750-200 provides flow settings of 785 and 690 CFM, with operating pressure settings of 100, 150, and 200 PSI. The adjustable pressure range is 78–200 PSI in 2 PSI increments.

Q: What is the pressure adjustment range?
A: The multiple pressure regulation system allows the pressure to be adjusted from 78 to 200 PSI in 2 PSI increments.

Q: Does the CPS 750-200 include spill containment and towing equipment?
A: Yes. It features 110% spill-free containment with multiple remote drains and a DOT towing package with 7-pin RV road lights, an adjustable-height 3-inch pintle hitch, 17.5-inch wheels, safety chains, and electric brakes.

Q: Is the CPS 750-200 suitable for cold-weather operation?
A: Yes. The standard configuration includes a cold climate package with synthetic compressor oil, a thermostatic bypass valve, glow plugs, a diesel-powered block heater, and heavy-duty batteries.

Q: What controller is used on the CPS 750-200?
A: The CPS 750-200 uses a CP Xc2004 controller that provides operational monitoring, diagnostics, and safety warning/shutdown functions, including high engine temperature and low fuel protection.
