Lift-and-Dump Hydraulic Drum Dumpers
Lift-and-Dump Hydraulic Drum Dumpers - Portable Lift-and-Dump / 1000 / 48"/94" is backordered and will ship as soon as it is back in stock.
Safe & Secure Payments
Flexible financing available
Discover your options →
Lift-and-Dump Hydraulic Drum Dumpers - Portable Lift-and-Dump / 1000 / 48"/94" is backordered and will ship as soon as it is back in stock.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Vestil
Self-Dumping Steel Hoppers with Bumper Release - D Style
Regular price$806.05 – $3,036.21Unit price -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Product Description

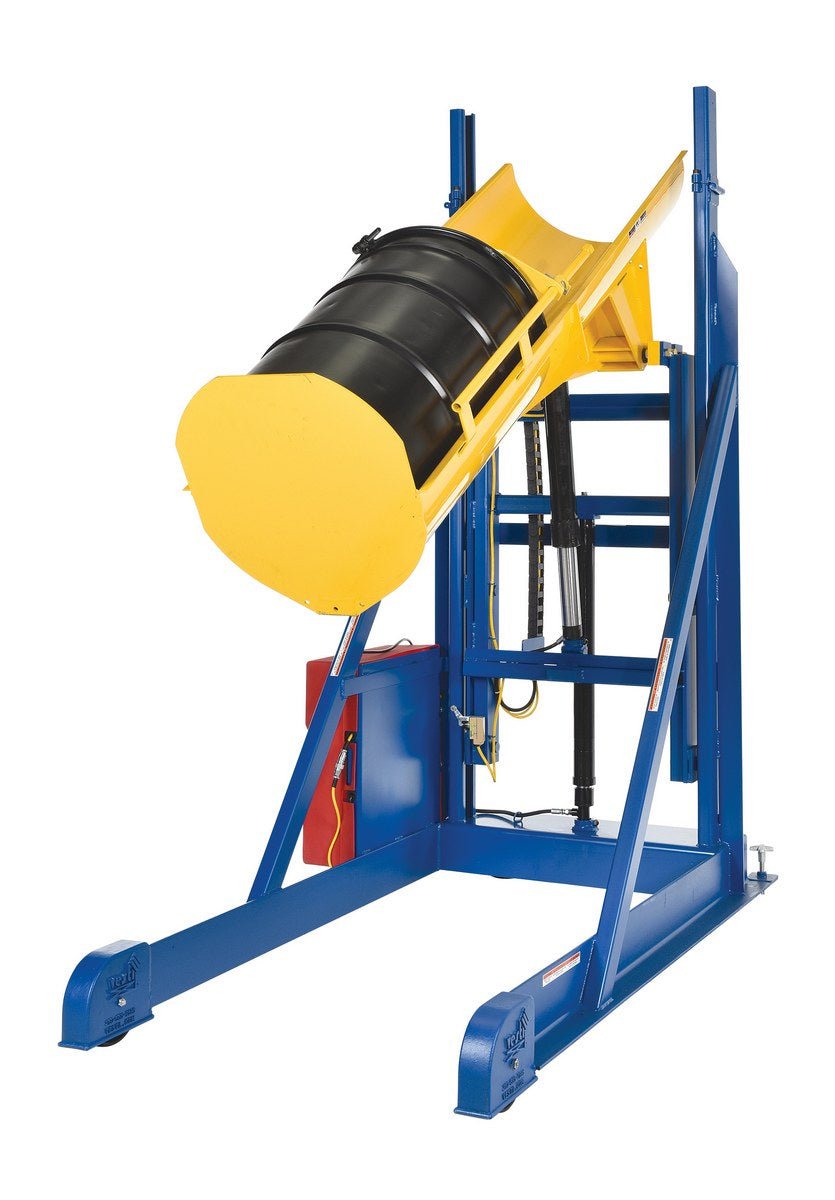

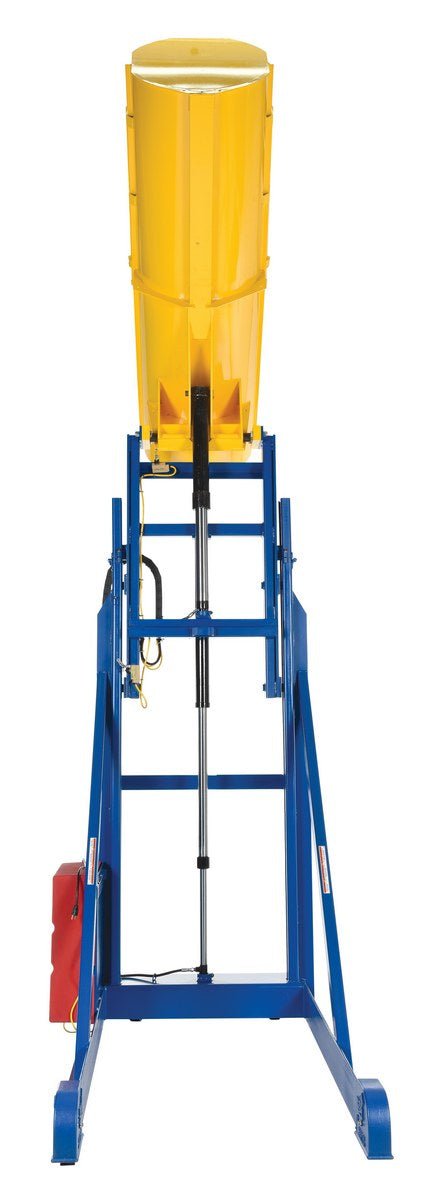

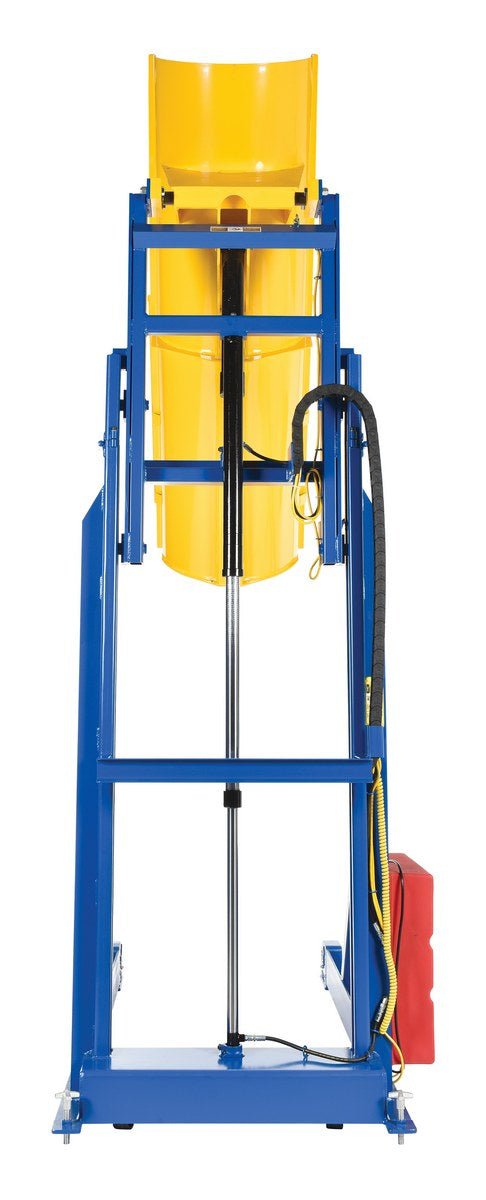

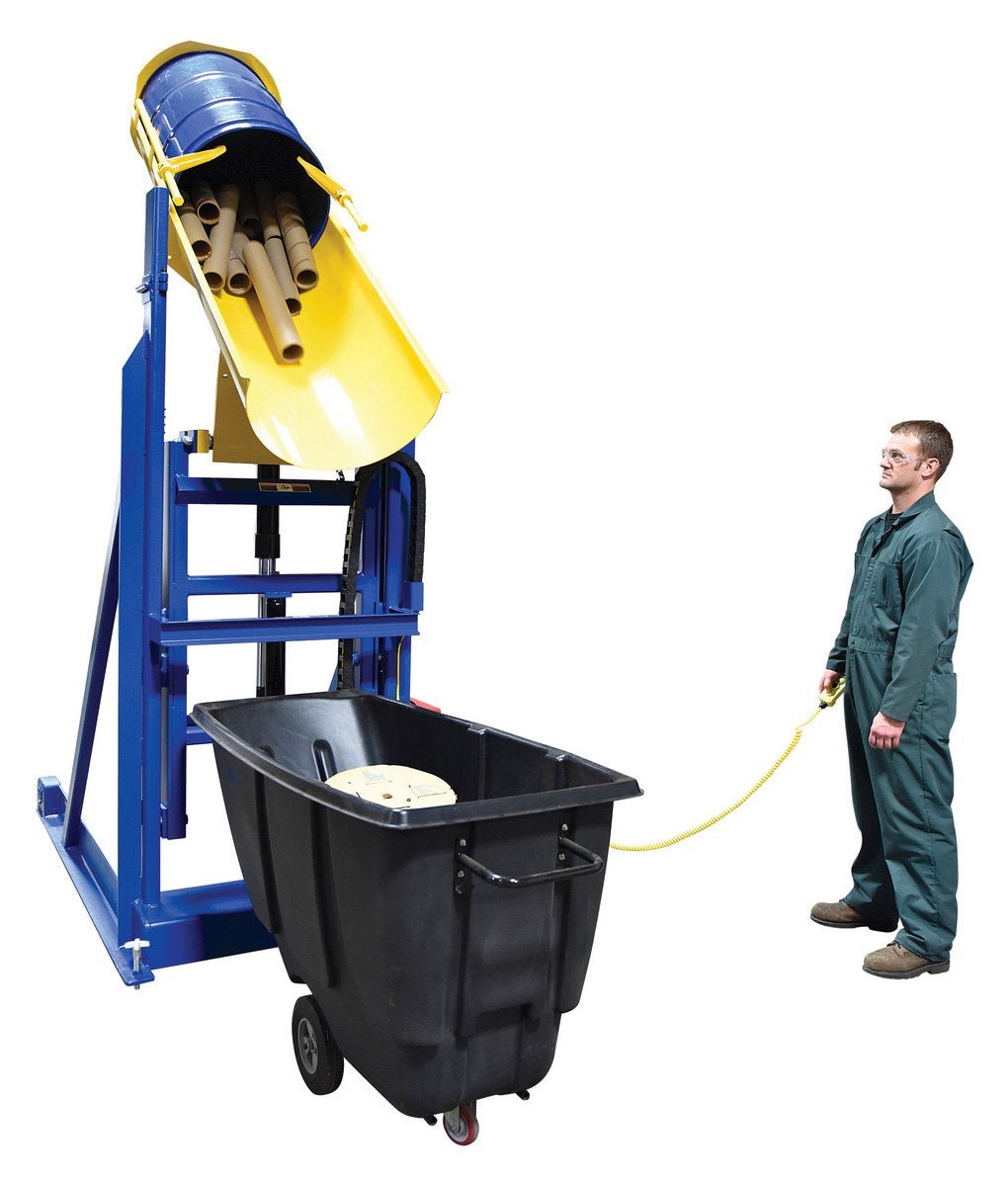

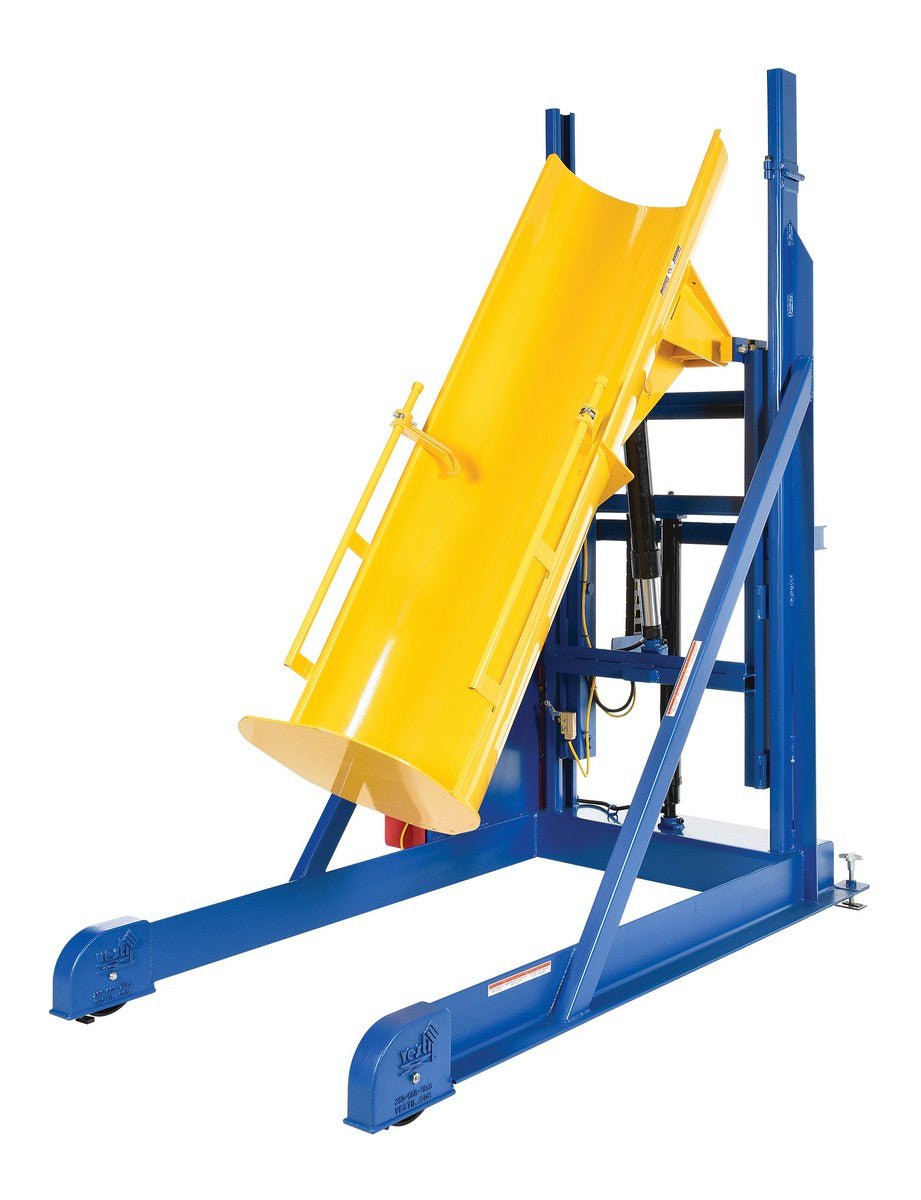

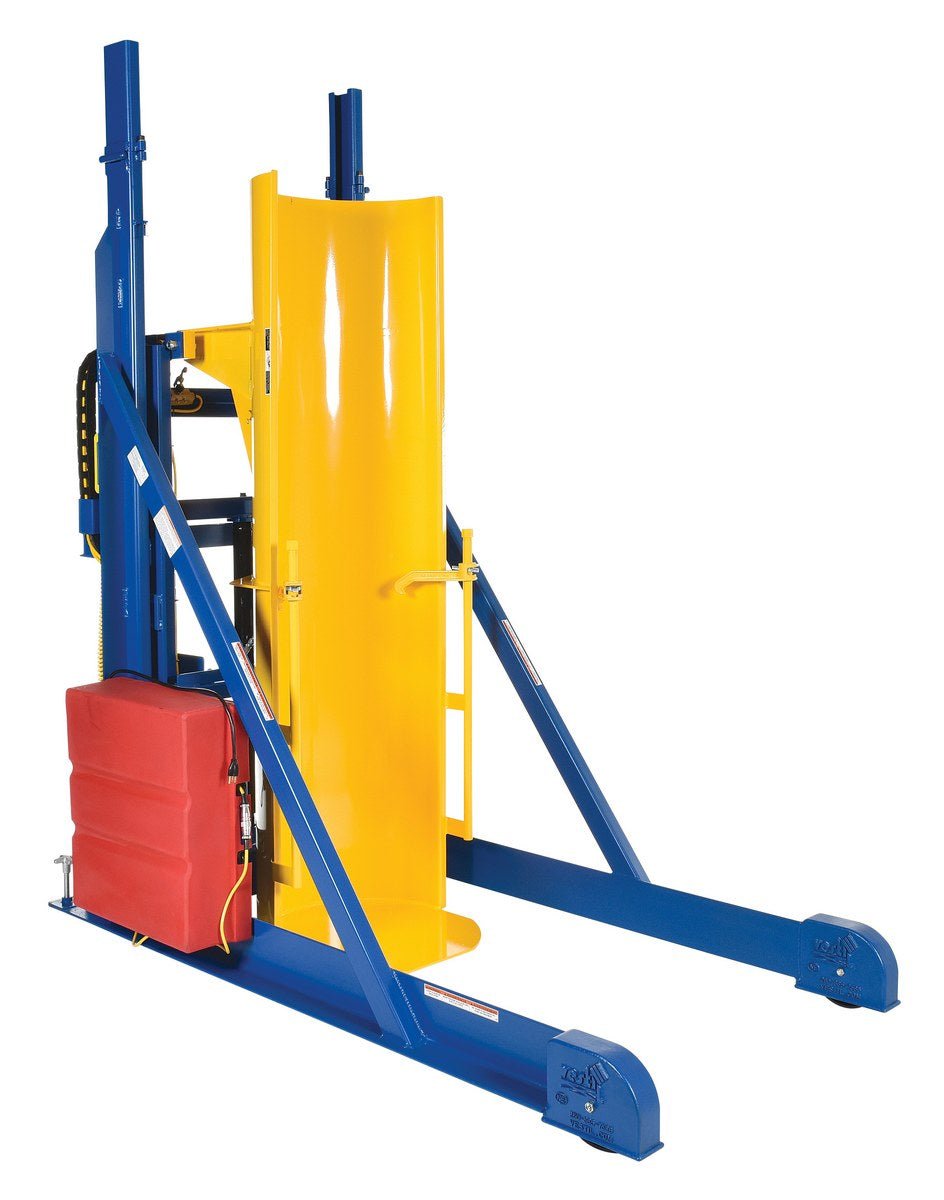

The Vestil Lift-and-Dump Hydraulic Drum Dumper is what you need to dump drums at variable heights.
The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. This hydraulic drum lifter features a (4) push button pendant which allows the operator full independent control of both lift height and the dump angle. Standard 460V 3-phase and 12V DC powered available.
| Lift-and-Dump Hydraulic Drum Dumpers | ||||||||
| Model | Image | Dump Height (Min/Max) | Rotation Height |
Level Height | Capacity (lbs) |
Frame (WxL) |
Wt.(lbs) | |
| Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Degree Dump Angle) | ||||||||
| HLD-94-10-P |  |

|
48"/94" | 163" | 87-3/4" | 1,000 | 51"x75-3/8" | 1372 |
| HLD-116-10-P |  |
|
60"/116" | 194" | 99-3/4" | 1,000 | 51"x82-3/8" | 1460 |
| HLD-94-15-P |  |
|
48"/94" | 163" | 87-3/4" | 1,500 | 51"x75-3/8" | 1392 |
| HLD-116-15-P |  |
|
60"/116" | 194" | 99-3/4" | 1,500 | 51"x82-3/8" | 1525 |
| Stationary Lift-and-Dump Hydraulic Drum Dumpers (45 Degree Dump Angle) | ||||||||
| HLD-94-10-S |  |
|
48"/94" | 163" | 85-7/8" | 1,000 | 51"x65-1/2" | 1341 |
| HLD-116-10-S |  |
|
60"/116" | 194" | 97-7/8" | 1,000 | 51"x72-1/2" | 1422 |
| HLD-94-15-S |  |
|
48"/94" | 163" | 85-7/8" | 1,500 | 51"x65-1/2" | 1454 |
| HLD-116-15-S |  |
|
60"/116" | 194" | 97-7/8" | 1,500 | 51"x72-1/2" | 1466 |
| DC Powered Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Degree Dump Angle) | ||||||||
| HLD-94-10-P-DC |  |
|
48"/94" | 163" | 87-3/4" | 1,000 | 51"x75-3/8" | 1432 |
| HLD-116-10-P-DC |  |
|
60"/116" | 194" | 99-3/4" | 1,000 | 51"x82-3/8" | 1526 |
| HLD-94-15-P-DC |  |
|
48"/94" | 163" | 87-3/4" | 1,500 | 51"x75-3/8" | 1452 |
| HLD-116-15-P-DC |  |
|
60"/116" | 194" | 99-3/4" | 1,500 | 51"x82-3/8" | 1585 |
| Stationary Lift-and-Dump Hydraulic Drum Dumpers (45 Degree Dump Angle) | ||||||||
| HLD-94-10-S-DC | - |
|
48"/94" | 163" | 87-7/8" | 1,000 | 51"x65-1/2" | 1401 |
| HLD-116-10-S-DC | - |
|
60"/116" | 194" | 97-7/8" | 1,000 | 51"x72-1/2" | 1582 |
| HLD-94-15-S-DC | - |
|
48"/94" | 163" | 85-7/8" | 1,500 | 51"x65-1/2" | 1514 |
| HLD-116-15-S-DC | - |
|
60"/116" | 194" | 97-7/8" | 1,500 | 51"x72-1/2" | 1526 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
-
