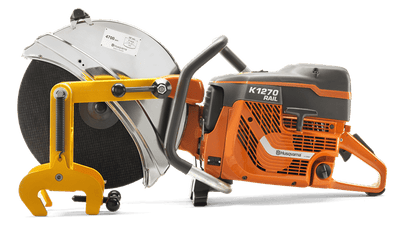

Husqvarna K 1270 Rail Track Saw

Cutting a rail track takes power, precision and speed.

The K 1270 Rail is the market's most powerful cutter, customized for railways, tram tracks and metro systems. It cuts fast and straight, the attachment mounts quickly to the rail and the double attachment mountings means you can cut from any direction.

Cutting depth, max - 5.7 in

Blade diameter, max - 16 in

Output power - 7.8 hp

Perfect right-angle cuts

The RA 10 attachment fastens to the track to ensure a perfect right-angle cut.

Cutting from both sides

The RA 10 attachment is included as standard and allows cutting from both sides of the track.

Fast, stable mounting

Fast, stable mounting of the attachment onto the track.

Superior power with low emissions

Patented X-torqTM engine that uses air to flush out the cylinder provides exceptional power but keeps fuel consumptions and emissions low.

Reduced wear

Reduced wear thanks to the drive belt with fully sealed transmission, which keeps out the cutting dust.

Maintenance-free air filter

The only time the filter needs to be checked and changed is if you experience lack of power.

Active Air Filtration™

Our two-step filtration system with centrifugal cleaning and a single paper filter increases product life and extends service intervals.

Anti-vibration system

Our anti-vibration system reduces vibrations in the cutter handles, so they are more comfortable to hold and can be used for longer periods. To provide the user a comfortable operating position reduced strain, the distance between the handles is large. The handles and the short engine body mean the user always stands close to the machine, for easier handling and control.

EasyStart

EasyStart ensures easier starting by reducing the compression in the cylinder.

SmartCarb™

Our built-in automatic filter compensation maintains high power during the air filter life time.

Poly-V belt

Provides better transmission of power, less frequent re-tensioning and extended service intervals.

Wet cutting kit

Less slurry and low water consumption thanks to the progressive water valve, this adjusts the water volume to the exact amount needed.

Engine

Output power

7.8 hp

Cylinder displacement

7.25 cu.inch

Electrode gap

0.02 in

Exhaust emissions (CO2 EU V)

726 g/kWh

Cutting equipment

Cutting depth, max

5.7 in

Blade diameter, max

16 in

Arbor diameter

1 in

Blade thickness, max

0.2 in

Peripheral speed, max

18000 fpm

Dimensions

Product size length

30.35 in

Product size width

9.57 in

Product size height

18.50 in

Weight

35.7 lbs

Sound and noise

Sound power level, guaranteed (LWA)

117 dB(A)

Sound pressure level at operators ear

104 dB(A)

Vibrations

Vibrations left/front handle

5.3 m/s²

Vibrations right/rear handle

5.4 m/s²

Certifications

Cert machine dir. 2006/42/EC Decl. No.

EURO TEST CERTIFICATE SEC/10/2287
