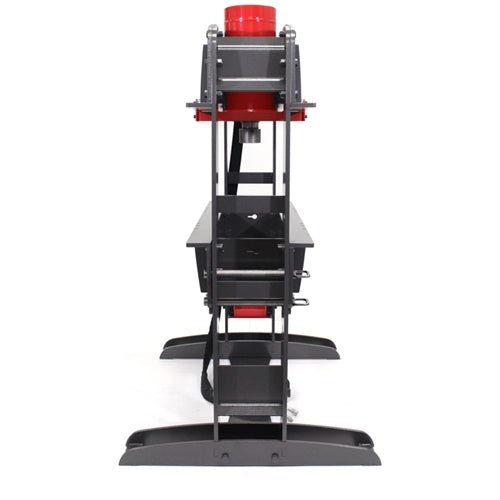

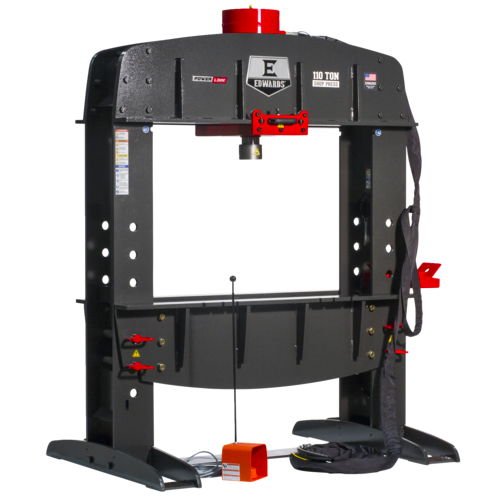

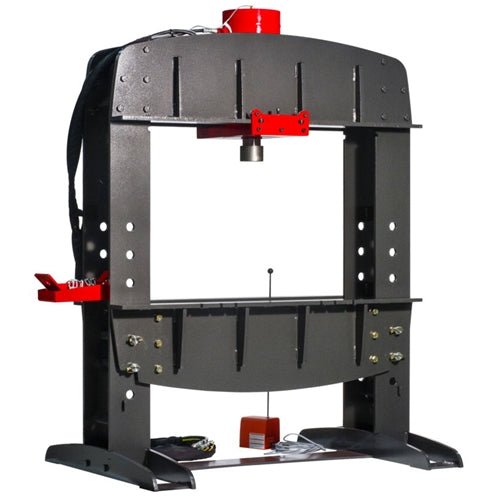

110 Ton Shop Press

Our 110 Ton Shop Press solves a variety of demands to improve user’s productivity.

Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through.

Product Features:

• Heavy-Duty 3/4" Steel Construction
• Easy-to-Use Foot/Jog Controls
• Versatile Rolling Cylinder
• Working Area of 48" x 37-1/2"
• Pressure Gauge
• Quick-Disconnect Hoses
• Hydraulic-Assist Table Height Adjustment
• 2 V-Blocks Included

Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit.

With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.

Also available with PLC (Programmable Logic Control) to improve your productivity on repeatable actions. Provides adjustable up/down stroke control saving time. Adjustable PSI allows the user to set the pressure and cycle the press with an automatic return. Magnetic base allows easy mounting of the PLC anywhere on the machine

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM - 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

GENERAL SPECIFICATIONS

Rating 110 Tons

Cylinder 4" Ram

Stroke 12-1/4"

DIMENSIONS

Height 85.4"

Width 64"

Depth 48"

Shipping Weight 2,690 lb
