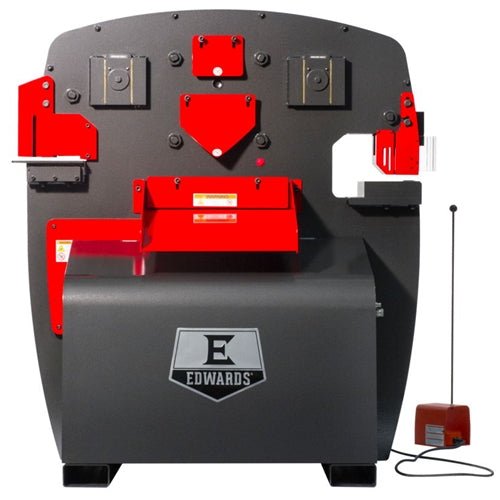

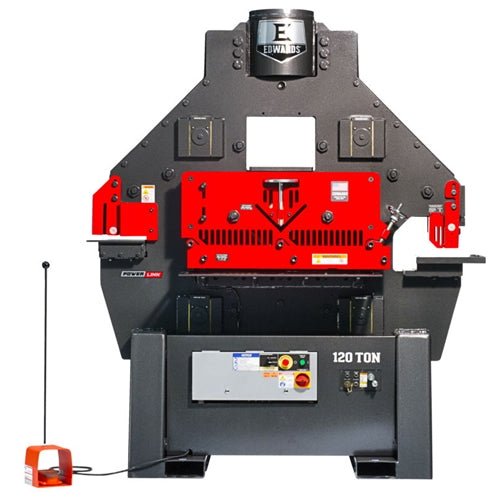

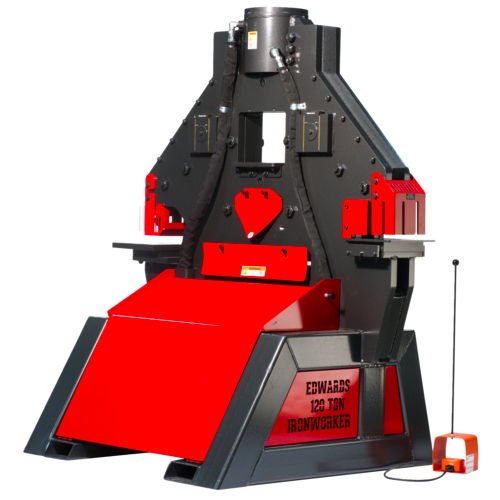

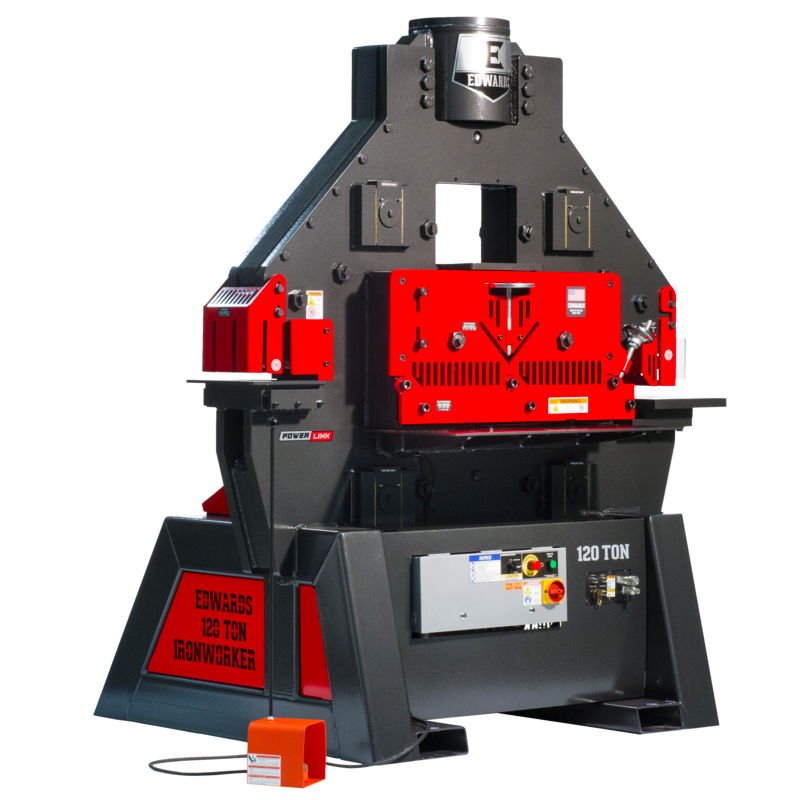

120 Ton Ironworker

by Edwards
SKU

Original price $51,709.84 - Original price $55,521.37
Original price $51,709.84
$43,499.00
$43,499.00 - $46,549.00
Current price $43,499.00
Choose a Options
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

The Powerhouse -  Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility.

  • Five Available Workstations
  • Universal Open Tooling Station
  • 24" Flat Bar Shear
  • Dedicated Coper Notcher
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.

PUNCH

  • Rating 120 Tons
  • Max. Capacity 1-1/2" Dia. in 1" A36
  • (65,000 PSI Tensile)
  • Stroke 2"
  • Throat Depth 11"
  • Open Height 9-1/8"
  • Shut Height 7-1/8"
  • Work Height 36-5/8"

FLAT BAR SHEAR

  • Max. Capacity 1/2" x 24"
  • 1" x 12"
  • Max. Round 1-1/4"
  • Max. Square 1-1/4"
  • Work Height 33-1/4"

ANGLE SHEAR

  • Max. Capacity 6" x 6" x 1/2"
  • Work Height 52-1/2"

COPER NOTCHER

  • Max. Capacity 3" x 6" x 1/2"
  • Work Height 40"

OPEN CAVITY

  • Height 9"
  • Width 11-3/4"
  • Work Height 51-3/4"

GENERAL SPECIFICATIONS

  • Standard Motor 10 HP 3~ 208 V or 230 V
  • 1770 RPM 26 A
  • Optional Motors 10 HP 3~ 460 V
  • 1770 RPM 12 A
  •
  • 10 HP 3~ 575 V
  • 1770 RPM 10 A
  •
  • 10 HP 1~ 230 V
  • 1740 RPM 40 A
  • Hydraulic Pump 24 GPM
  • Valve Pressure 3800 PSI
  • Reservoir 17 Gallons
  • Cylinder 2-3/4" Ram

DIMENSIONS

  • Height 79 3/8"
  • Width 60"
  • Depth 60"
  • Shipping Weight 5500 lb
