Product Description

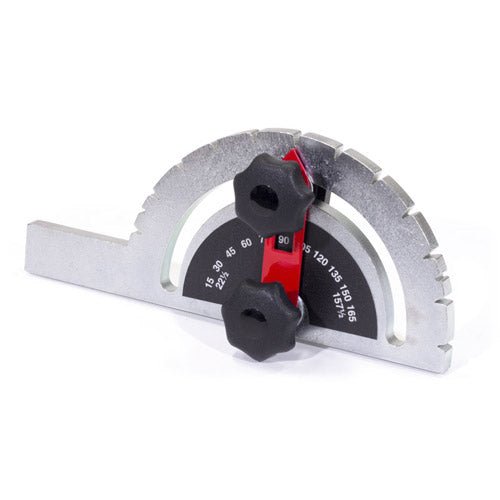

Edwards Fabricator’s Protractor for Ironworker Machines

Set the correct angle before the cut or punch with the Edwards Fabricator’s Protractor. Designed for use at the shear or punch stations, this practical setup tool helps establish consistent positioning across a 180° range.

The protractor is gauged in clear 15° increments, providing a straightforward reference for common angle requirements in metalworking and fabrication applications.

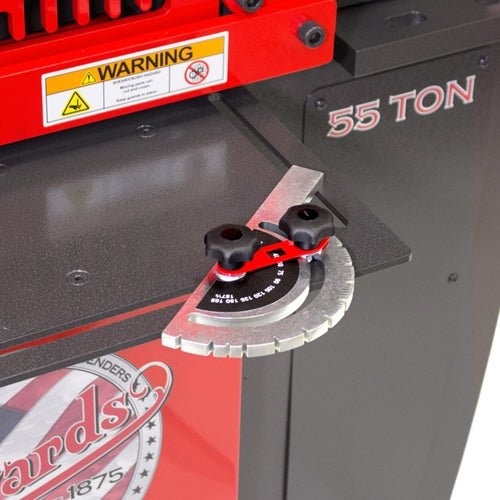

Its broad angular range supports work from one direction through the full 180° span. This makes it suitable for checking and guiding material alignment at Edwards ironworker machine stations.

Using a dedicated angle guide reduces reliance on visual estimation during setup. Repeatable positioning can help improve workflow consistency when processing multiple pieces or repeating fabrication tasks.

Key Features

  • Designed for Edwards shear and punch stations
  • 180° working range
  • Graduated in 15° increments
  • Supports angle setup and material positioning
  • Suitable for professional metalworking applications

The Fabricator’s Protractor is intended for fabricators, maintenance departments, and metalworking shops using compatible Edwards Ironworker Machines. It provides a simple, visible reference point without adding unnecessary complexity to the setup process.

Use the tool when establishing angled cuts, punches, or repeatable material placement. The marked increments allow operators to identify the desired position quickly before engaging the machine.

Product: Fabricator’s Protractor
Brand: Edwards Manufacturing
SKU: ED9-AC1017
Application: Edwards shear and punch stations
Angle range: 180°
Graduations: 15° increments

For operations requiring consistent angle references at an Edwards ironworker machine, this protractor provides a functional and direct setup solution.
