Back Gauge - 48"

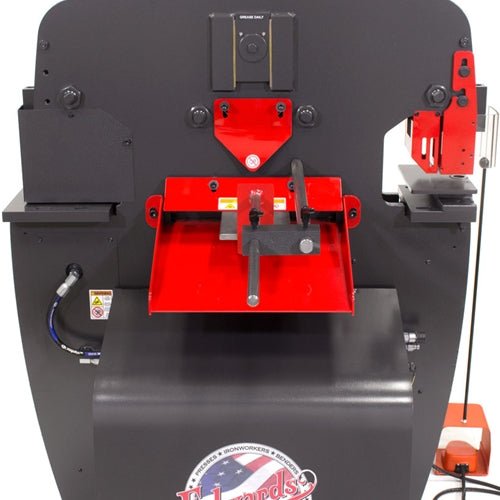

Edwards 48" Back Gauge

Set a consistent stopping point for repeatable production cuts with the Edwards 48" Back Gauge. Designed for use with compatible Edwards Ironworker Machines, this accessory helps establish uniform material positioning at the shear stations.

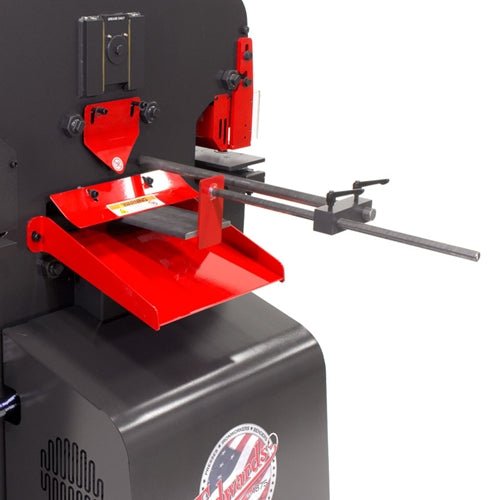

Fitted to the back of the ironworker, the back gauge provides an adjustable stop for the Angle Shear and Flat Bar Shear stations. The 48-inch gauge length supports a broad range of material stop positions for common fabrication requirements.

Once the stop is set, operators can position material against the gauge for more consistent cut lengths from piece to piece. This reduces repeated measuring and helps streamline production work involving multiple identical components.

Key Features

• 48-inch adjustable back gauge
• Mounts to the back of compatible Edwards Ironworker Machines
• Provides a repeatable stop for Angle Shear operations
• Provides a repeatable stop for Flat Bar Shear operations
• Supports efficient, consistent material positioning

The adjustable stop is suited to fabrication environments where cut accuracy, repeatability, and efficient workflow are essential. It is particularly useful for production jobs requiring multiple angle or flat bar pieces cut to the same length.

This accessory is intended for compatible Edwards ironworker equipment. Confirm ironworker compatibility and installation requirements before ordering.

Product Details

Product: Back Gauge - 48"
SKU: ED9-AC1009
Application: Angle Shear and Flat Bar Shear stations
Brand: Edwards Manufacturing

The Edwards 48" Back Gauge adds a practical, adjustable reference point to an ironworker setup, helping maintain repeatable cuts throughout production runs.
