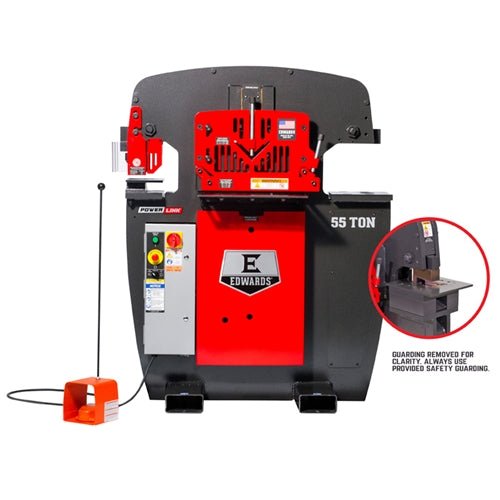

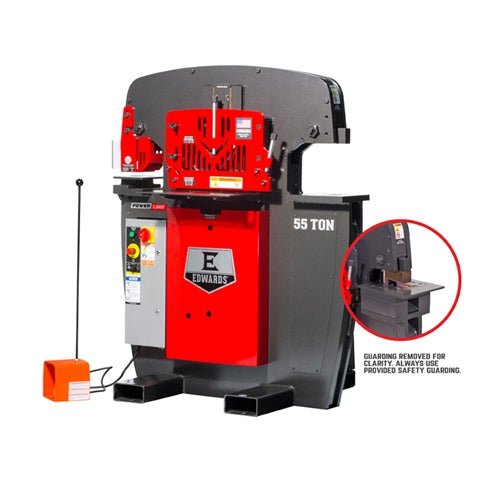

55 Ton Ironworker with Coper Notcher

by Edwards
SKU

Original price $20,561.38 - Original price $23,174.65
Original price $20,561.38
$17,149.00
$17,149.00 - $19,259.00
Current price $17,149.00
Choose a 55 Ton Ironworker Packages
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

55 Ton Ironworker  with Coper Notcher Our Best Seller  is well suited to fit the needs of any fab shop, large or small

  • Four Available Workstations
    • Standard (3) - Punch, Flat Bar Shear & Angle Shear
    • Open (1) - Factory installed Coper Notcher
  • Includes a factory-installed Coper Notcher which removes anything from a small nibble to a large notch out of Flat Bar or Angle Iron
  • 12 interchangeable Attachments available
  • 17 optional Accessories available
  • ANSI B11.5-1988(02) Compliant Guarding
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with E-Stop for added safety

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional

PUNCH

  • Rating 55 Tons
  • Max. Capacity 1-1/16" Dia. in 5/8" A36
  • (65,000 PSI Tensile)
  • Stroke 1-1/4"
  • Throat Depth 7-1/2"
  • Open Height 8-1/8"
  • Shut Height 6-7/8"
  • Work Height 36-9/16"

FLAT BAR SHEAR

  • Max. Capacity 3/8" x 14"
  • 1/2" x 12"
  • 3/4" x 4"
  • Max. Round 7/8"
  • Max. Square 7/8"
  • Work Height 34-1/2"

ANGLE SHEAR

  • Max. Capacity 3" x 3" x 3/8"
  • 4" x 4" x 1/4"
  • Work Height 39-7/8"

COPER NOTCHER

  • Max. Capacity 2-1/2" x 4" x 5/16"
  • Work Height 39-1/2"

OPEN STATION

  • Throat Depth 11-3/16"
  • Open Height 8-1/8"
  • Shut Height 6-7/8"
  • Stroke 1-1/4"
  • Work Height 34-1/2"

GENERAL SPECIFICATIONS

  • Standard Motor 5 HP 3~ 208 V or 230 V
  • 1725 RPM 14 A
  • Optional Motors 5 HP 3~ 460 V
  • 1725 RPM 7 A
  •
  • 5 HP 3~ 575 V
  • 1725 RPM 6 A
  •
  • 5 HP 1~ 230 V
  • 1725 RPM 23 A
  • Hydraulic Pump 3-1/2 GPM - 1 Stage
  • Valve Pressure 2500 PSI
  • Reservoir 7 Gallons
  • Cylinder 2-1/2" Ram

DIMENSIONS

  • Height 55-1/4"
  • Width 44-3/8"
  • Depth 36-1/8"
  • Shipping Weight 2480 lb
