Aardwolf Transport Frame Mod TF2000PC

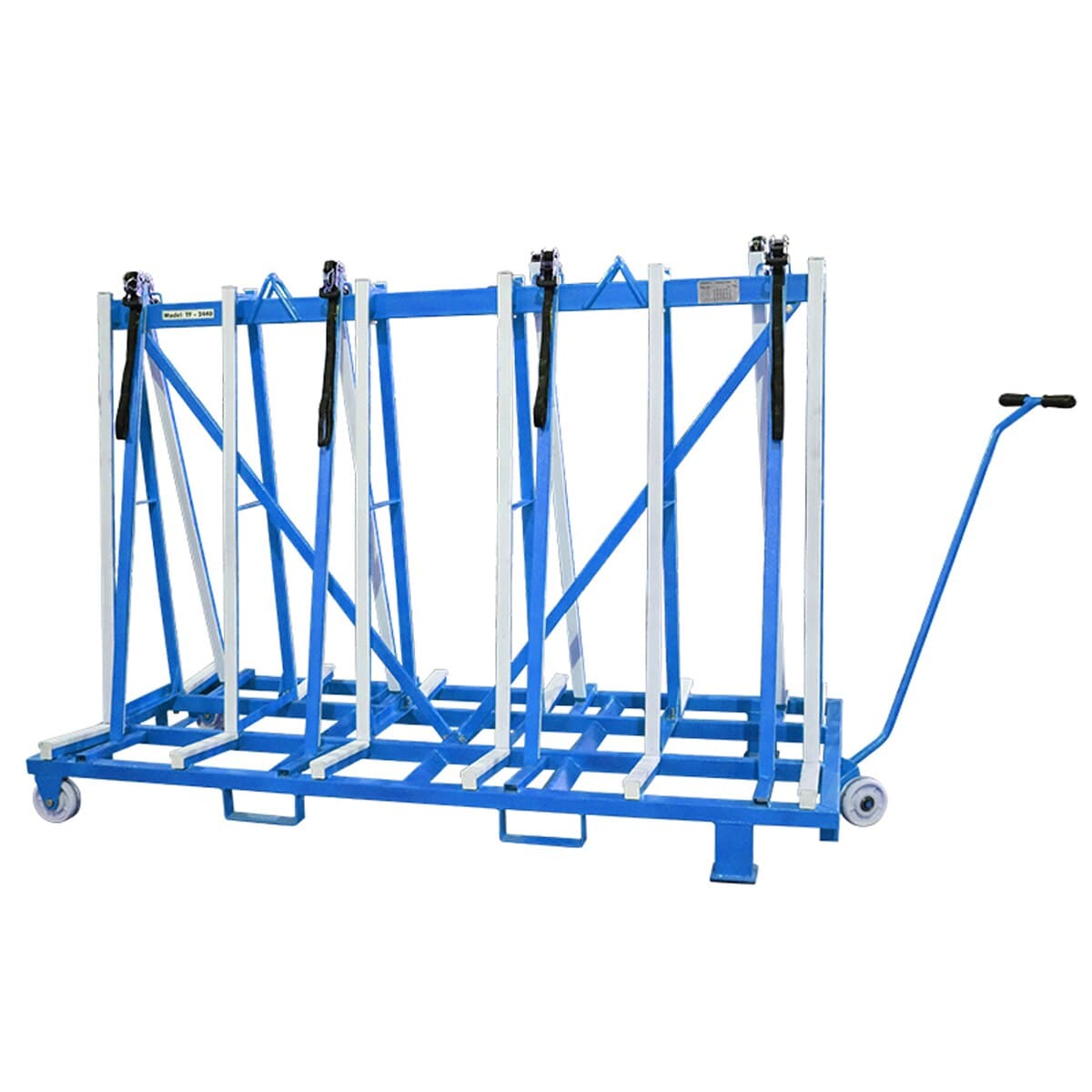

Aardwolf Heavy Duty Transport Frame Mod TF2000PC

The Heavy Duty Transport Frame Mod TF2000PC is uniquely designed to meet the demand of heavy duty transport and the storage of materials within factories or work sites. With work requiring the transport of material from place to place, the combination of a forklift with the heavy duty transport frame is the best solution for lifting and storing materials in trucks.

Features:

• Sturdy structure, designed to eliminate any risk of the slab tipping over
• Slabs are placed on special rubber profiles and secured with 6 locking bars together with ratchet straps to retain materials.
• The frame features 2 hooking points to be picked up by an overhead crane
• Reinforced with two oblique bars for the firm and secure construction
• Built-in forklift receivers on all sides for lifting by forklift
• The base and uprights come with replaceable white rubber to prevent marking and scratches.
• Counter-lever handle with wheels, allow the frame to be moved manually even when loaded.
• Counter-lever handle is used to jack uploaded frame and lower support legs when wheels are not required.
• Powder-coated finish, which ensures an aesthetic feature as well as the durability of the product

Option: The frames can be hot galvanized finished upon request.

Note: Support legs should always be lowered when a loaded frame is being transported on a truck.

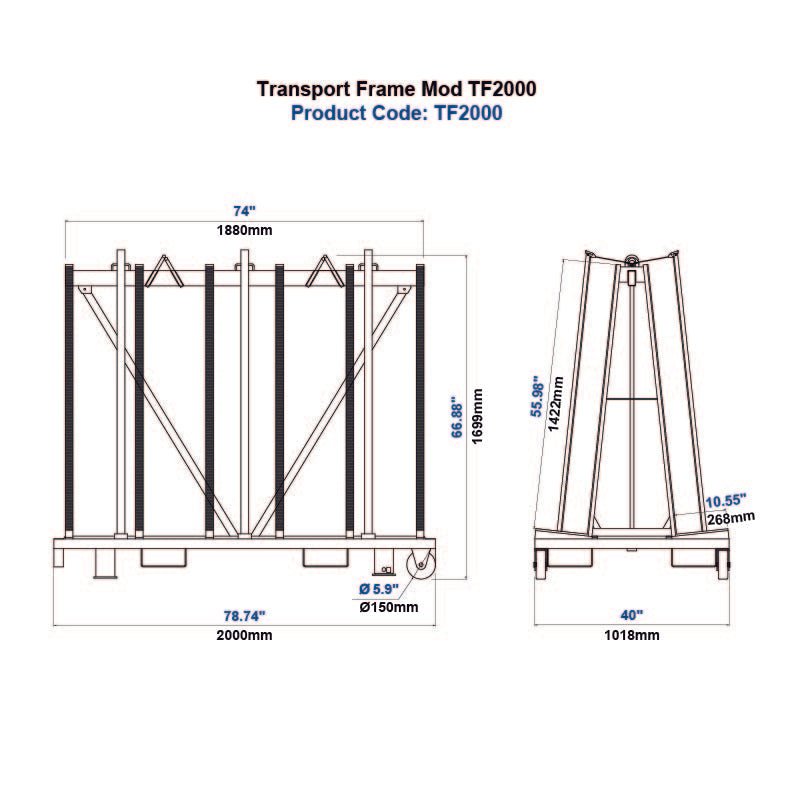

Specifications:

	Metric (mm-kg)	Imperial (inch-lb)
Number of Wheels	4	-
Straps of Each Side	3	-
Width of Slab Storage Base Area on Each Side	268	10.6"
Length	2000	78.7"
Working Load Limit Per Side	1250	2756
Total Working Load Limit	2500	5511
Net Weight	182	401
Gross Weight	188	414
Packaging Dimensions	2000 x 1020 x 420	78.7" x 40.2" x 16.5"

Aardwolf Transport Frames Include:

• TF2440PC
• TF3050
• TF3050H
• 1850 A-Frame
