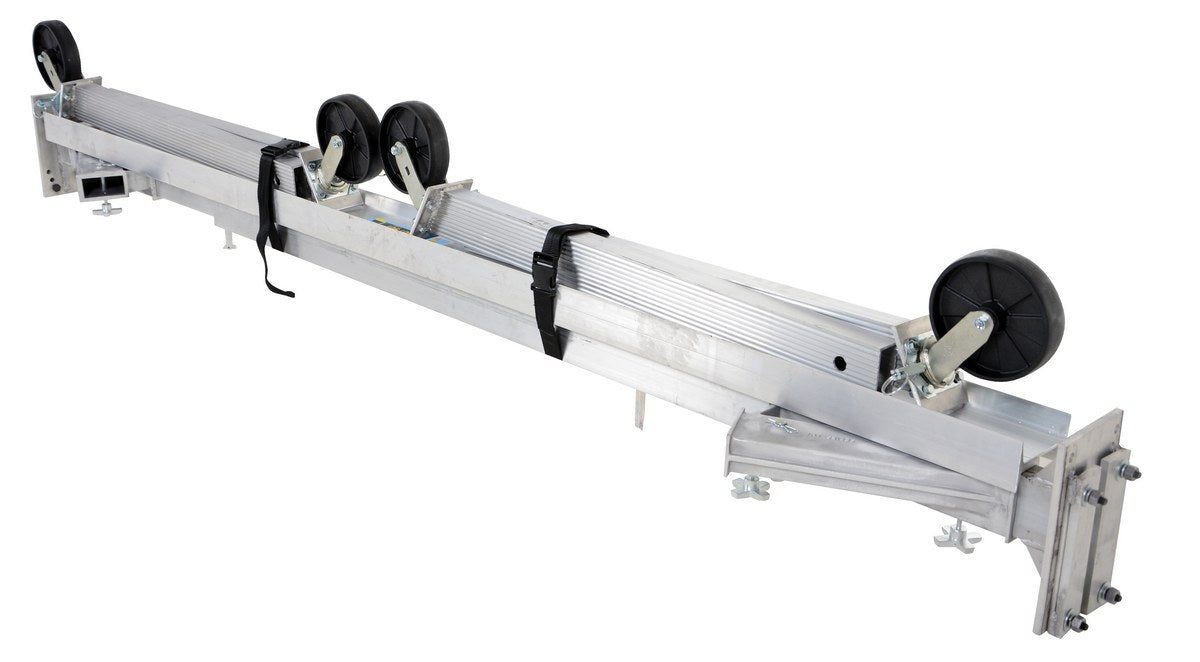

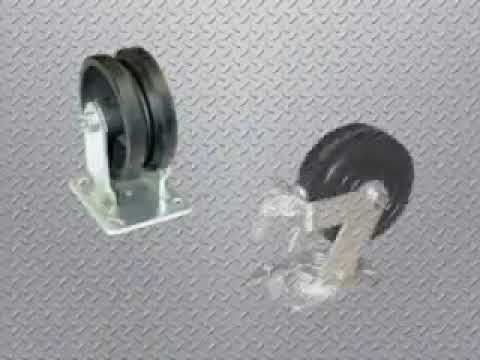

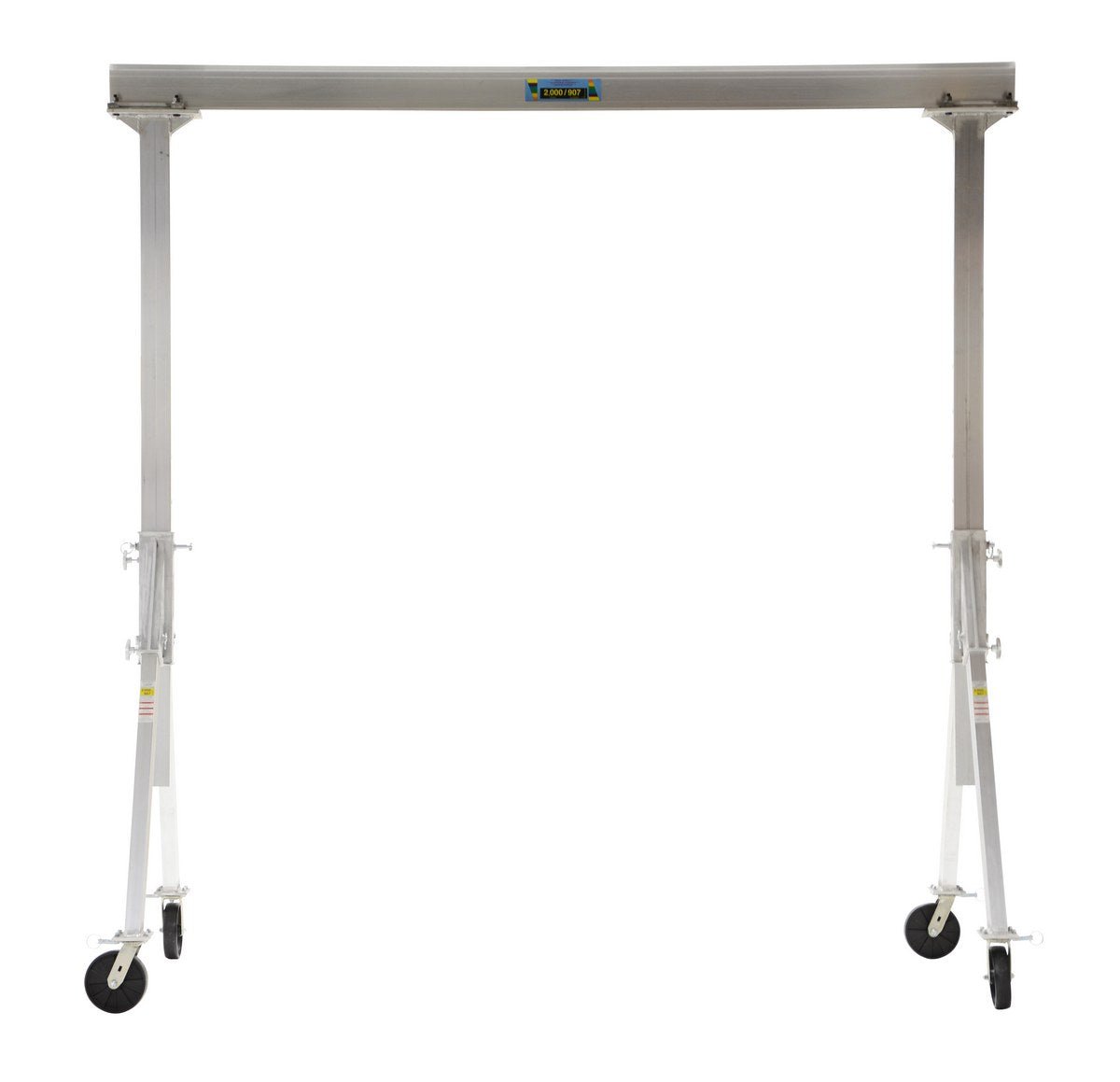

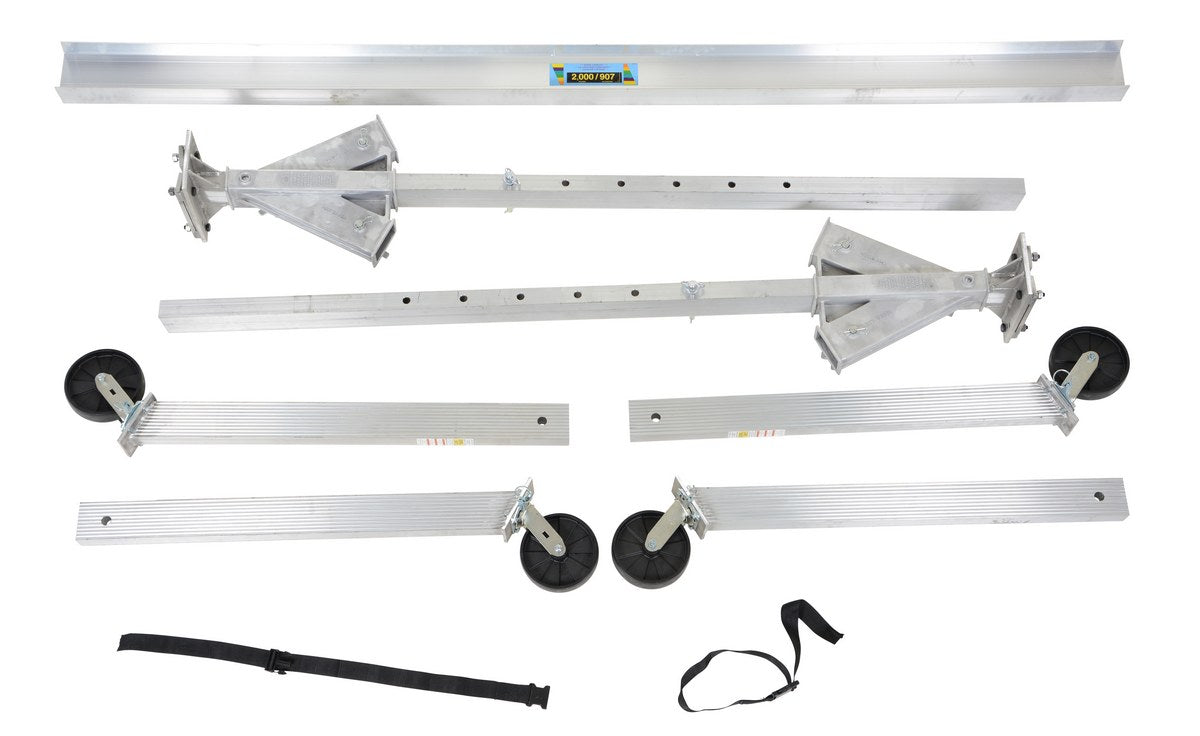

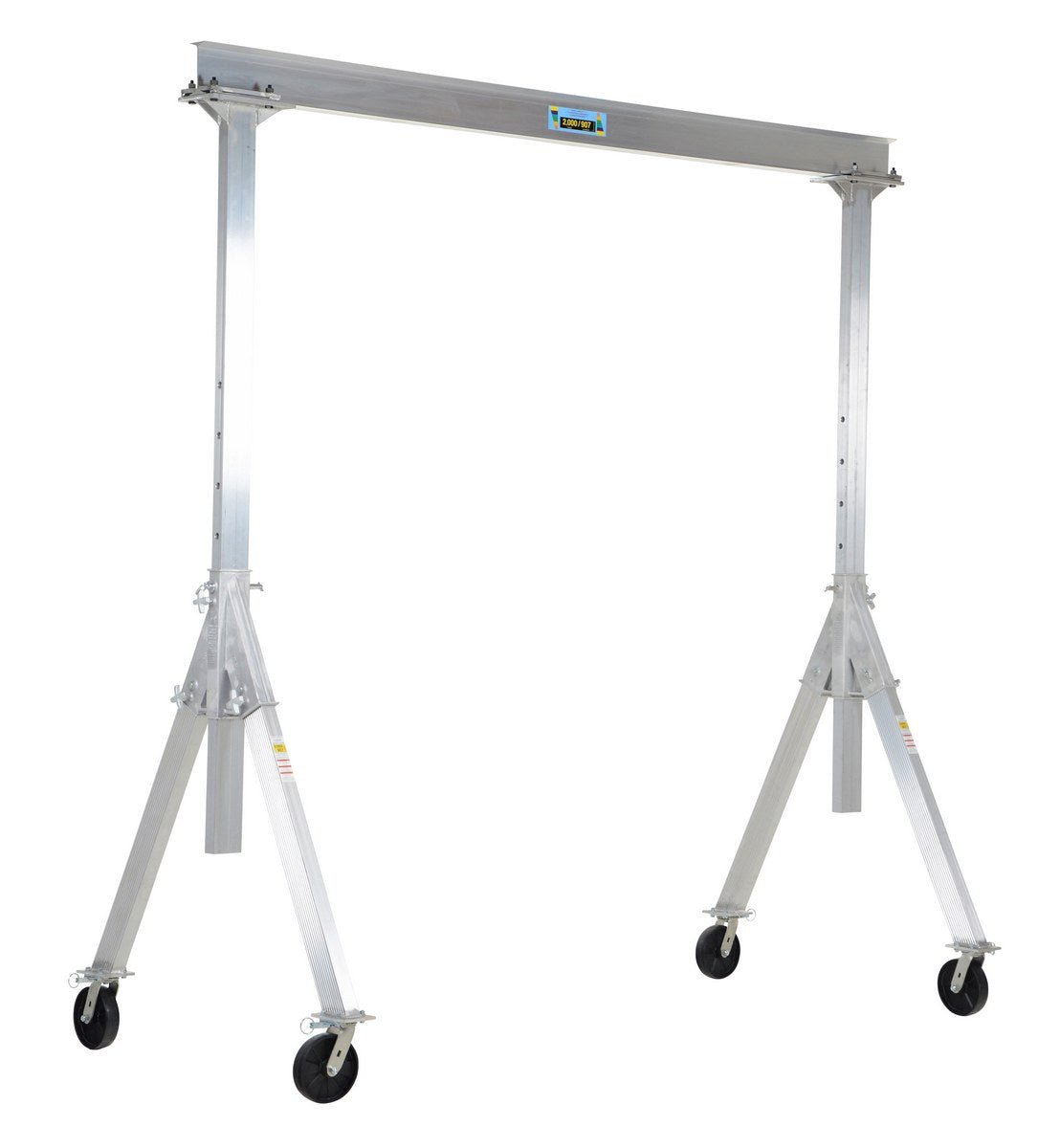

The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows height adjustment without the need of a hoist or fork truck. Included are two (2) straps, allowing transport of the gantry crane in one neat package. Facilitate easy mobility from one area to another with four (4) 8" glass filled swivel casters with four-position locks on the 2,000 and 4,000 lb. capacity models, while utilizing phenolic casters on the 6,000 lb. capacity units. Height is adjustable in 6" increments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoist and trolley can be ordered separately.
| Adjustable Height Aluminum Gantry Cranes |
| Model |
PDF's |
Caster
Type |
Overall I-Beam Length/ Height |
Under I-Beam Usable Height |
Base Width |
I-Beam Flange Width |
Capacity (lbs) |
Wt. (lbs) |
| AHA-2-8-8 |

|
Glass Filled Nylon |
8' /6" |
5'-8" to 8'-2" |
53-3/4" |
3-5/16" |
2,000 |
204 |
| AHA-2-8-10 |
|
Glass Filled Nylon |
8' /6" |
7'8" to 10'-2" |
53-3/4" |
3-5/16" |
2,000 |
239 |
| AHA-2-8-12 |
|
Glass Filled Nylon |
8' /6" |
9'6" to12' |
53-3/4" |
3-5/16" |
2,000 |
246 |
| AHA-2-10-8 |
|
Glass Filled Nylon |
10' /6" |
5'-8"to 8'-2" |
53-3/4" |
3-5/16" |
2,000 |
231 |
| AHA-2-10-10 |
|
Glass Filled Nylon |
10' /6" |
7'8" to 10'-2" |
53-3/4" |
3-5/16" |
2,000 |
252 |
| AHA-2-10-12 |
|
Glass Filled Nylon |
10' /6" |
9'6" to12' |
53-3/4" |
3-5/16" |
2,000 |
261 |
| AHA-2-12-8 |
|
Glass Filled Nylon |
12' /8" |
5'-8" to 8'-2" |
53-13/16" |
4" |
2,000 |
266 |
| AHA-2-12-10 |
|
Glass Filled Nylon |
12' /8" |
7'8" to 10'-2" |
53-13/16" |
4" |
2,000 |
274 |
| AHA-2-12-12 |
|
Glass Filled Nylon |
12' /8" |
9'6" to12' |
53-13/16" |
4" |
2,000 |
286 |
| AHA-2-15-8 |
|
Glass Filled Nylon |
15' /8" |
5'-8" to 8'-2" |
53-13/16" |
4-3/16" |
2,000 |
320 |
| AHA-2-15-10 |
|
Glass Filled Nylon |
15' /8" |
7'8" to 10'-2" |
53-13/16" |
4-3/16" |
2,000 |
364 |
| AHA-2-15-12 |
|
Glass Filled Nylon |
15' /8" |
9'6" to 12' |
53-13/16" |
4-3/16" |
2,000 |
371 |
| AHA-4-8-8 |
|
Glass Filled Nylon |
8' /8" |
5'-8" to 8'-2" |
53-15/16" |
4" |
4,000 |
276 |
| AHA-4-8-10 |
|
Glass Filled Nylon |
8' /8" |
7'-8" to 10'-2" |
53-15/16" |
4" |
4,000 |
298 |
| AHA-4-8-12 |
|
Glass Filled Nylon |
8' /8" |
9'-6" to 12' |
53-15/16" |
4" |
4,000 |
301 |
| AHA-4-10-8 |
|
Glass Filled Nylon |
10' /8" |
5'-8" to 8'-2" |
53-15/16" |
4-3/16" |
4,000 |
298 |
| AHA-4-10-10 |
|
Glass Filled Nylon |
10' /8" |
7-'8" to 10'-2" |
53-15/16" |
4-3/16" |
4,000 |
307 |
| AHA-4-10-12 |
|
Glass Filled Nylon |
10' /8" |
9'-6" to 12' |
53-15/16" |
4-3/16" |
4,000 |
349 |
| AHA-4-12-8 |
|
Glass Filled Nylon |
12' /8" |
5'-8" to 8'-2" |
53-15/16" |
4-3/16" |
4,000 |
302 |
| AHA-4-12-10 |
|
Glass Filled Nylon |
12' /8" |
7'-8" to 10'-2" |
53-15/16" |
4-3/16" |
4,000 |
325 |
| AHA-4-12-12 |
|
Glass Filled Nylon |
12' /8" |
9'-6" to 12' |
53-15/16" |
4-3/16" |
4,000 |
350 |
| AHA-4-15-8 |
|
Glass Filled Nylon |
15' /10" |
5'-8" to 8'-2" |
53-15/16" |
4-11/16" |
4,000 |
254 |
| AHA-4-15-10 |
|
Glass Filled Nylon |
15' /10" |
7'-8" to 10'-2" |
53-15/16" |
4-11/16" |
4,000 |
370 |
| AHA-4-15-12 |
|
Glass Filled Nylon |
15' /10" |
9'-6" to 12' |
53-15/16" |
4-11/16" |
4,000 |
394 |
| AHA-6-8-8 |
|
Phenolic |
8' /10" |
6'-2" to 8'-2" |
64 11/16" |
4-11/16" |
6,000 |
470 |
| AHA-6-8-10 |
|
Phenolic |
8' /10" |
8'2" to 10'-2" |
64 11/16" |
4-11/16" |
6,000 |
488 |
| AHA-6-8-12 |
|
Phenolic |
8' /10" |
10'2" to 12'-2" |
64 11/16" |
4-11/16" |
6,000 |
506 |
| AHA-6-10-8 |
|
Phenolic |
10' /10" |
6'-2" to 8'-2" |
64 11/16" |
4-11/16" |
6,000 |
534 |
| AHA-6-10-10 |
|
Phenolic |
10' /10" |
8'2" to 10'-2" |
64 11/16" |
4-11/16" |
6,000 |
554 |
| AHA-6-10-12 |
|
Phenolic |
10' /10" |
10'2" to 12'-2" |
64 11/16" |
4-11/16" |
6,000 |
572 |
| AHA-6-12-8 |
|
Phenolic |
12' /12" |
6'-2" to 8'-2" |
64 11/16" |
7" |
6,000 |
568 |
| AHA-6-12-10 |
|
Phenolic |
12' /12" |
8'2" to 10'-2" |
64 11/16" |
7" |
6,000 |
589 |
| AHA-6-12-12 |
|
Phenolic |
12' /12" |
10'2" to 12'-2" |
64 11/16" |
7"" |
6,000 |
607 |
| AHA-6-15-8 |
|
Phenolic |
15' /12" |
6'-2" to 8'-2" |
64 11/16" |
7" |
6,000 |
642 |
| AHA-6-15-10 |
|
Phenolic |
15' /12" |
8'2" to 10'-2" |
64 11/16" |
7" |
6,000 |
630 |
| AHA-6-15-12 |
|
Phenolic |
15' /12" |
10'2" to 12'-2" |
64 11/16" |
7" |
6,000 |
648 |
| Usable Distance Between uprights is overall I-Beam Length minus 18" |
| Usable Trolley Travel length is overall I-Beam Length minus 23-3/4" |
KEY: = Approval Drawing -- = Warranty --
= Testing Certificate
