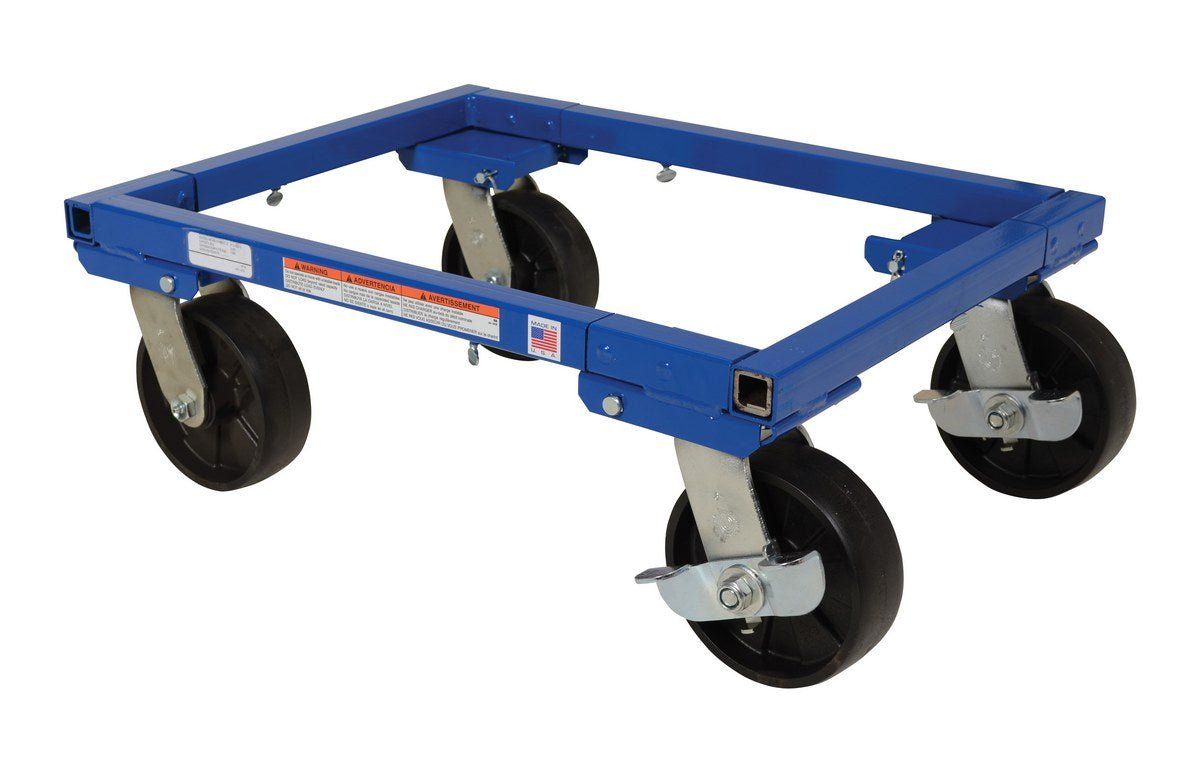

The Adjustable Tote Dolly with a unique design is adjustable in both width and length for use with different size totes.

Easy to adjust by loosening the screws and sliding each side in or out. Each unit includes four (4) swivel casters (one with brake) that are attached with caster pads. Overall size in three (3) inches greater than the usable size. Welded steel construction for maximum strength with powder coat blue finish. Totes sold separately.

  • Welded steel construction provides maximum strength
  • Loosening screws easily adjust allowing each side to slide in and out
  • Powder coat blue offers a long lasting finish
  • Swivel caster design allows unit to conveniently roll when loaded with product

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Adjustable Tote Dolly
Model Min. Usable Size (WxL) Max. Usable Size (WxL) Uniform Static Capacity (lbs) Caster Size Net Wt.
ATD-1622-4 16"x22" 24"x34" 2,000 4" Glass Filled Nylon 40
ATD-1622-6 16"x22" 24"x34" 3,000 6" Glass Filled Nylon 43
