Powerful Pneumatic Stone Cutter for Industrial Applications

Looking for this great saw but in a full Rail System Saw try Alpha PSC-150 Miter Cutting Rail Saw System

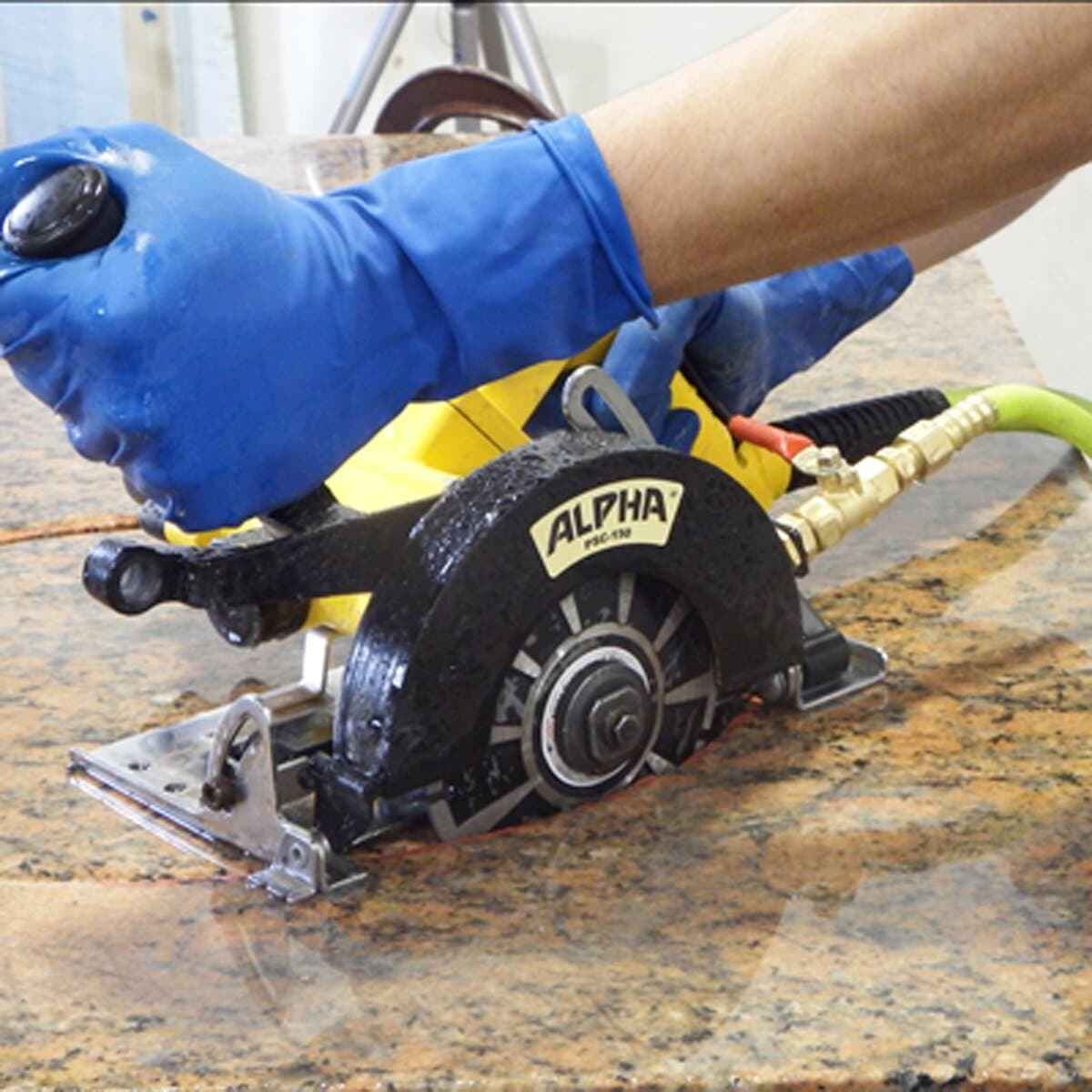

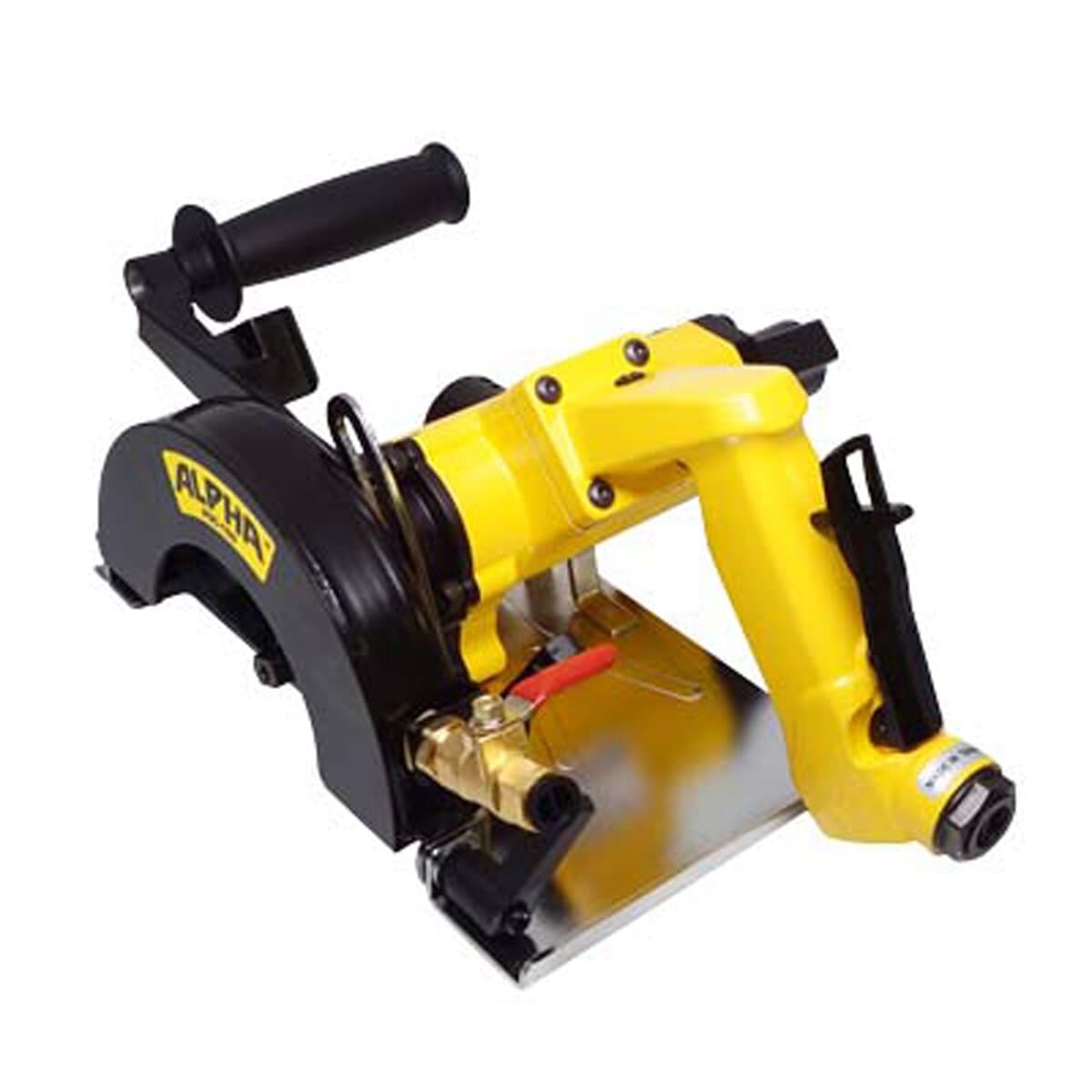

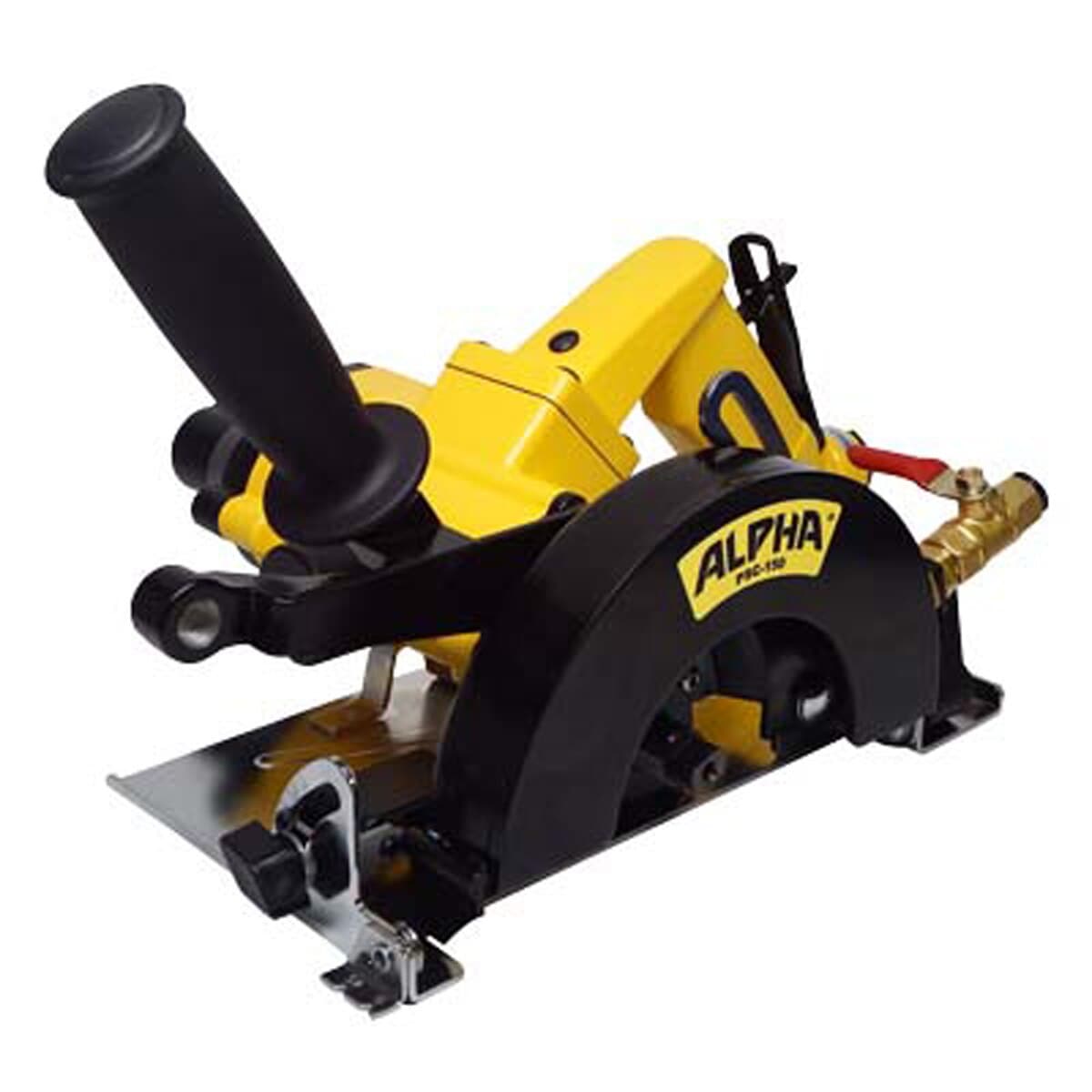

Alpha® is excited to introduce a new industrial quality pneumatic stone cutter, called the PSC-150, which is equipped with a 2 hp motor, with a speed governor in the motor that regulates the air consumption according to the torque needed for the application. This regulation includes producing enough torque to cut 1-1/4" (3cm) stone slabs in one pass. In addition, Alpha® recognized the need for an industrial quality portable stone cutter that is capable of miter cutting of 1-1/4" (3cm) materials with ease, so that any stone fabricator can use it when miter cuts are required, without time-consuming setup. Since it is a pneumatic powered motor, you can save the repair and maintenance costs of electric stone cutters when sink-hole cutting and groove-cutting for rodding applications. Alpha® offers a carriage that retrofits on the Alpha® Guide Rail System to support the application of making precise miter cuts for the perfect lamination. The PSC-150 offers kink-free water and air hoses to improve the maneuverability of the stone cutter. The flexibility of the hoses helps reduce operator fatigue and improves the operation. To ensure a long maintenance interval, we also recommend using the manifold system that comes with a regulator and filter to catch the debris and moisture delivered by compressed air. The Alpha® PSC-150 comes with an Eclipse II 6" blade which is the recommended turbo blade for granite and engineered stone. It can utilize a variety of consumables including the Alpha® Katana 6" for porcelain panels and slabs, Hot-Rod 4" for 1/4" steel rods and 1/8" fiber glass rods. For marble applications, a Libero 5" blade is recommended since most marble slabs are 3/4" (2cm) thick or less.

Powerful 2hp Motor; Can Be Used Wet or Dry! Low Maintenance; Produces Precise Miter Cuts!

Features

• 2 HP Pneumatic Powered Motor with Speed Governor
• Capable of Miter Cutting 1-1/4" Material With Ease
• Kink-Free Water and Air- Hoses for Easy Maneuverability and Reducing Operator Fatigue
• Great For Sink-Hole Cutting, Groove Cutting and Rodding Applications
• Comes With an Eclipse II 6" Blade and a bottle of Rust Inhibitor Oil
• Can Be Used Wet or Dry
• One Year Warranty* (*See manual for details)

Product Details

• Model PSC-150
• Air Pressure 90 PSI
• Air Consumption Min 32 CFM / 1HP*
• Air Consumption Max 48 CFM / 2HP
• No Load RPM 8,500 RPM
• Air Inlet 3/8" NPSM
• Water Inlet 1/4" BSPP
• Arbor 7/8" / 22mm
• Max. HP 2.0 HP
• Cutting Disc Diameter 6" / 150mm
• Note: *To control the amount of CFM required, use the reduced flow air inlet fitting 3001-0084

Equipment Included

• Flanges 3
• Bolts (M6X30 Left) / (M6x20 Left) 2
• Side Handle 1
• Combination Wrench (9mm) 1
• Hex Wrench (5mm) 1
• Open End Spanner Wrench (22mm) 1
• Air Hose (15ft / 4.5m) 1
• Water Hose (15ft / 4.5m) 1
• Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1
• Alpha® Eclipse II 6" Blade (DEE006) 1

Part No.	Size	Thickness	Maximum RPM	Arbor(s)	Recommended For	For Use On	Description
PSC-150	6"			7/8"	Granite/Eng.Stone		Pneumatic Stone Cutter
DEE006	6"	2.1mm	10,100	7/8", 5/8",◊		Stone Cutter/Angle Grinder
AIR-008					Pneumatic Tools		Rust Inhibitor Oil 8oz (237ml)
