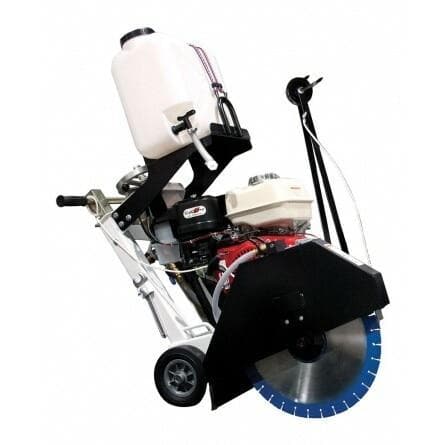

CC1300XL Small Walk Behind Concrete Saw
SKU: 75066
CC1300XL Small Walk Behind Concrete Saw is great for general contractors and can take a blade between 14 and 20 inches
14" - 20" Blade Capacity
Features & Benefits
- Heavy duty frame design
- Cyclone air filter (Honda® models)
- Easy to maneuver push drive
- Four position heavy duty handles offer no slack and don't rattle like other adjustable handles
- Through rear axle for added strength
- Solid sealed and self aligning blade shaft bearings
- Slip-on blade guard for easy blade access
- Three V-belts for extra power delivery to the blade shaft
- Left or right side sawing
- Optional water tank available for dust suppression
Specifications
| Maximum depth of cut with 14" blade: | 4-5/8" |
| Maximum depth of cut with 18" blade: | 6-5/8" |
| Maximum depth of cut with 20" blade: | 7-5/8" |
| Blade shaft RPM: | 2,600 |
| Blade shaft diameter: | 1-1/4" |
| Arbor size: | 1" with single drive pin |
| Blade mounting: | Right or left |
| Blade raise/lower: | Precision screw feed |
| Handle bars: | Adjustable |
| Parts List # (Gas): | 1801801 |
| Parts List # (Electric) | 1801809 |
| Operator Manual #: | 1801459 |
- ◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.
