A6 Earth Auger Bits

Digga's auger bit range has been designed from over 35 years of manufacturing and designing experience for the ultimate in performance, quality and cost effectiveness.

With the A6 range, you benefit from its 1 3/4 hex drive pilot over the square drive - giving machines with higher down pressure and higher torque greater strength. The A6 suits Skid Steers and Excavators up to 8 tons for drilling in earth.

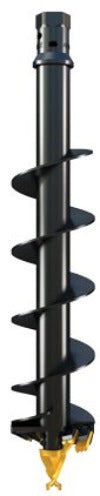

The A6 is a flat tooth auger bit with chisel ripping teeth on inner pockets. Ideal for general earth & clay drilling. With multi facet tungsten teeth fitted, granulated and soft fracturable rock conditions can be drilled. This auger has been designed with a double start single carry flight configuration. Its flight pitch is shallow for greater soil retention, and its heavy duty body allows for greater reliability in tough conditions.

A6 Auger Bit Specs
Drilling Conditions	General
Hub	2.5" Hex
Optional Hub	2" Hex
Overall Length	60"
Pipe	3" - 5.5"
Flights (Lead)	5/16"
Flights (Carry)	5/16"
Teeth	TM
Pilot	PM-HX-3
Max Size	60"
Ideal Drives	4DDS-7DDS
Optimum Drilling Speeds
Earth	55-65
Clay	45-55
Shale (Fracturable Rock)	25-45
Heavy Rock	N/A
Auger Features	Double start, single carry flight configuration. Flight pitch is shallow for greater soil retention. Heavy duty body for greater durability in tough conditions
