Designed to make the operator's task extremely easy.

This truck combines the compactness and versatility of a hand pallet truck with the ergonomics of an electric pallet truck. It is suited for moving loads in confined spaced where larger electric pallet trucks will not fit. Overall dimensions are 20" x 60", with a turning radius of only 50". Individual fork width is 6-1/2". Machine's stability is guaranteed by the lateral stabilizing wheels. Ergonomic handle offers ease of use with battery charge LED indicator. Features "Tortoise" push button for slow motion and a safety punch button with warning buzzer.

  • Two wheels for stabilization during movement
  • Bright battery charge indicator for clear discernment
  • Long handle for ergonomically friendly posture
  • Push button safety for secure warning
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

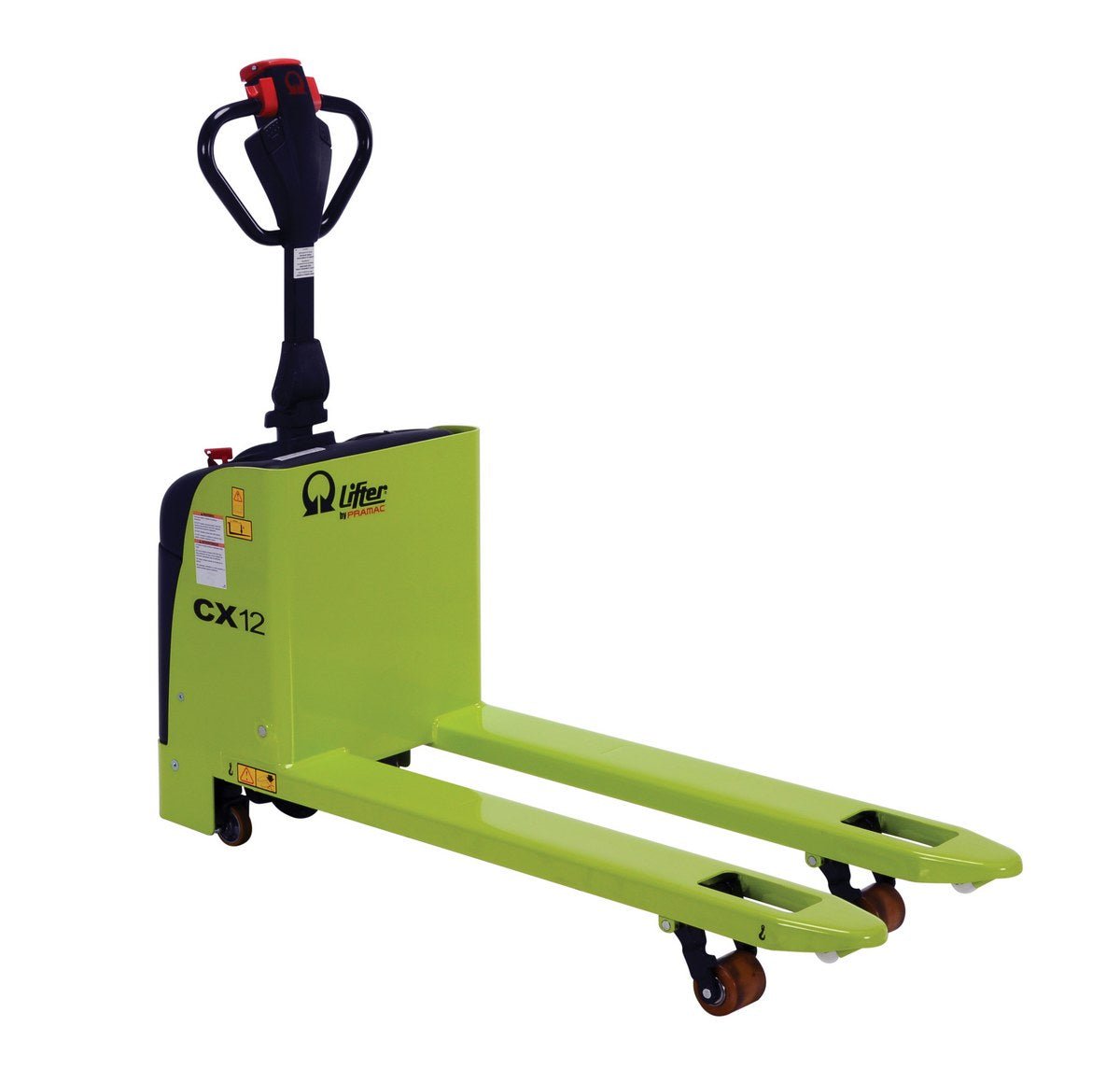

Electric Pallet Truck
Model Number Image Service
Fork Size
(W x L)
PMC-EPT-2045 3-3/8" to 7-7/8" 20"x45" 2,500 (2) 12V 402
PMC-EPT-2745 3-3/8" to 7-7/8" 27"x45" 2,500 (2) 12V 406

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
