Verify inbound and outbound freight right on your pallet truck and then move your loads with ease.


LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.

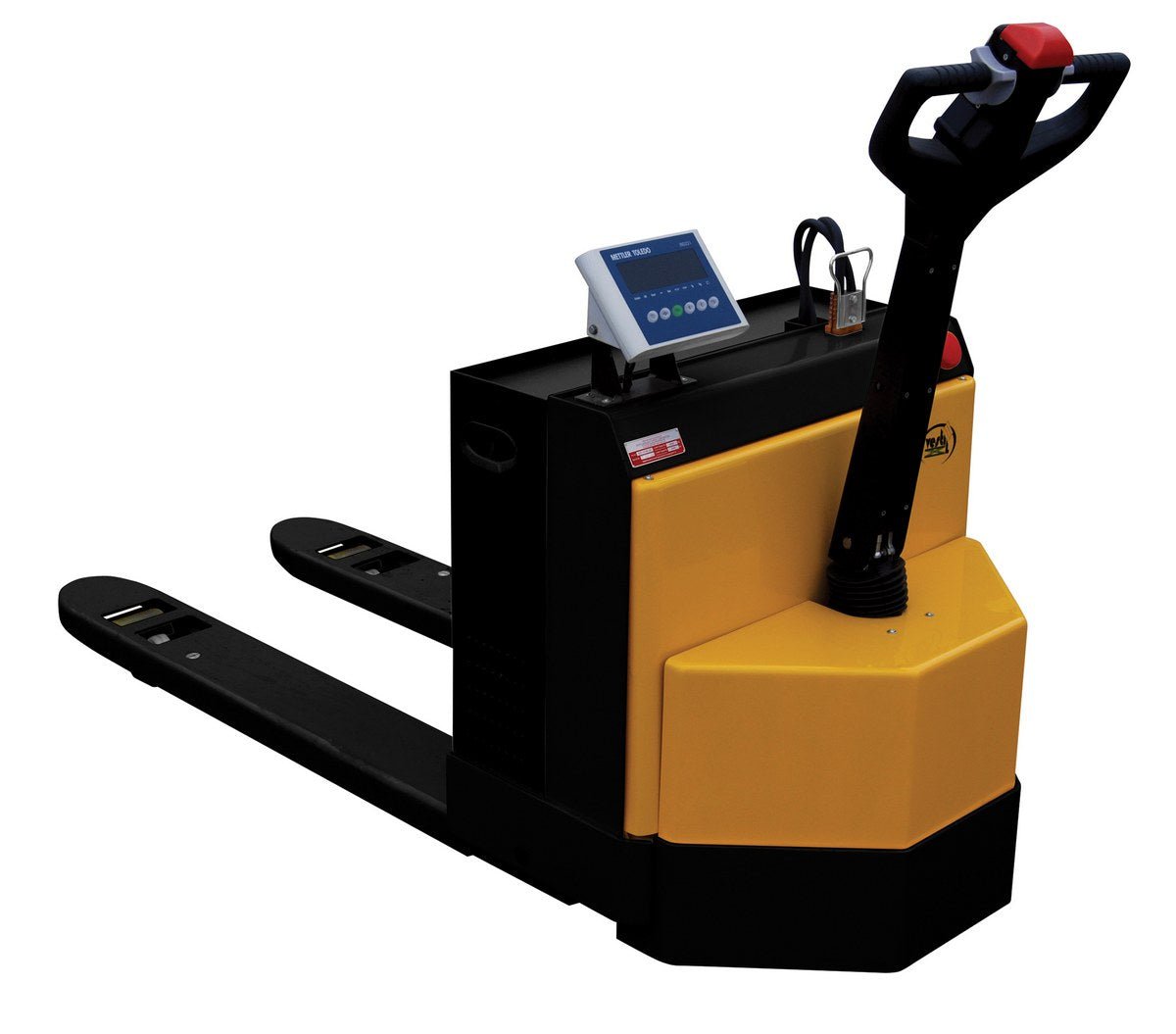

Electric Pallet Trucks with Scale
Model Image PDF's Overall Size
Capacity (lbs)
Fork Size
icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 28-1/2"x 66 "x 49" 3,000 25"x47" 3-3/8" to 8" 789
EPT-2748-45-SCL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 31-3/16"x76-1/2"x 51-3/8" 4,500 27"x48" 3-3/4" to 8" 1178
EPT-2796-45-SCL Warranty PDF 30"x125"x51" 4,500 27"x96" 3-3/8" to 8" 1938
Includes Rider Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)
EPT-2748-45-SCL-RP icon_approvaldrawings.jpgWarranty PDF 30.25"x76.5"x49" 4,500 27"x48" 3-3/4" to 8" 1202

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
