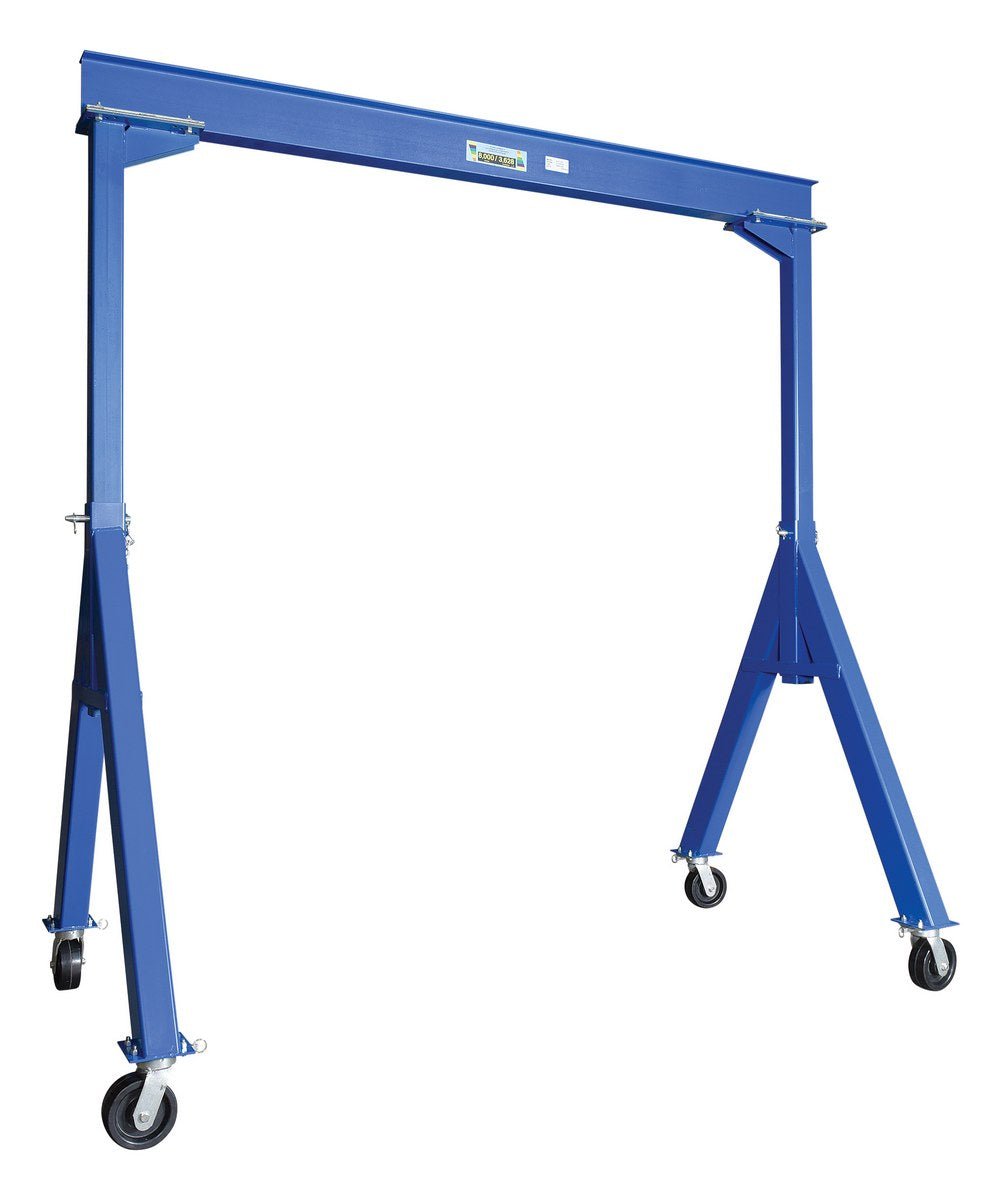

Fixed Steel Gantry Cranes

Industrial Steel Gantry Cranes are designed for positioning materials along the beam's length. Solid steel construction will provide years of service

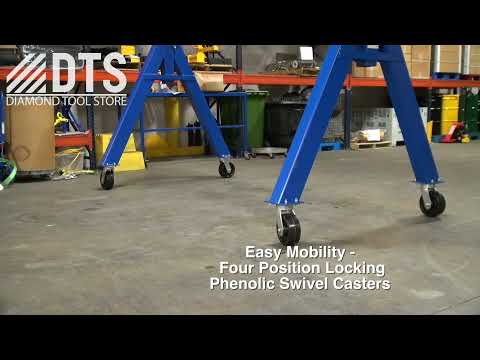

Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks. 2K-4K models have glass filled nylon casters, 6K-8K models have phenolic casters, and 10K model has steel casters. More economical and flexible than permanent cranes. Features quick setup design. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Do not move units while loaded unless using V-Groove Caster and Track Option. Painted blue finish. Hoist and trolley sold separately.

Model	PDF's	Overall I-Beam Length	Under I-Beam To Ground	Capacity (lbs)	Base Width	I-Beam Flange Width	Overall I-Beam Height	Weight (lbs)
FHS-50		8'	5'9"	500	46-1/2"	4"	6"	512
FHS-2-10		10'	10'	2,000	64-1/2"	4"	6"	739
FHS-2-15		15'	10'	2,000	64-1/2"	4"	6"	801
FHS-2-20		20'	10'	2,000	64-1/2"	4"	10-1/8"	994
FHS-4-10		10'	10'	4,000	64-1/2"	4"	8-1/8"	771
FHS-4-15		15'	10'	4,000	64-1/2"	4"	8-1/8"	846
FHS-4-20		20'	10'	4,000	64-1/2"	4"	12-3/16"	1006
FHS-6-10		10'	10'1"	6,000	65-1/2"	4"	8-1/8"	775
FHS-6-15		15'	10'1"	6,000	65-1/2"	4"	10-1/8"	963
FHS-6-20		20'	10'1"	6,000	65-1/2"	6-1/2"	12-5/16"	1355
FHS-8-10		10'	10'1"	8,000	64-1/4"	4"	8-1/8"	855
FHS-8-15		15'	10'1"	8,000	64-1/4"	4"	10-1/8"	956
FHS-8-20		20'	10'1"	8,000	64-1/4"	6-1/2"	12-5/16"	1385
FHS-10-10		10'	10'	10,000	64-1/2"	4"	10-1/8"	1093
FHS-10-15		15'	10'	10,000	64-1/2"	4"	12-3/16"	1428

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
