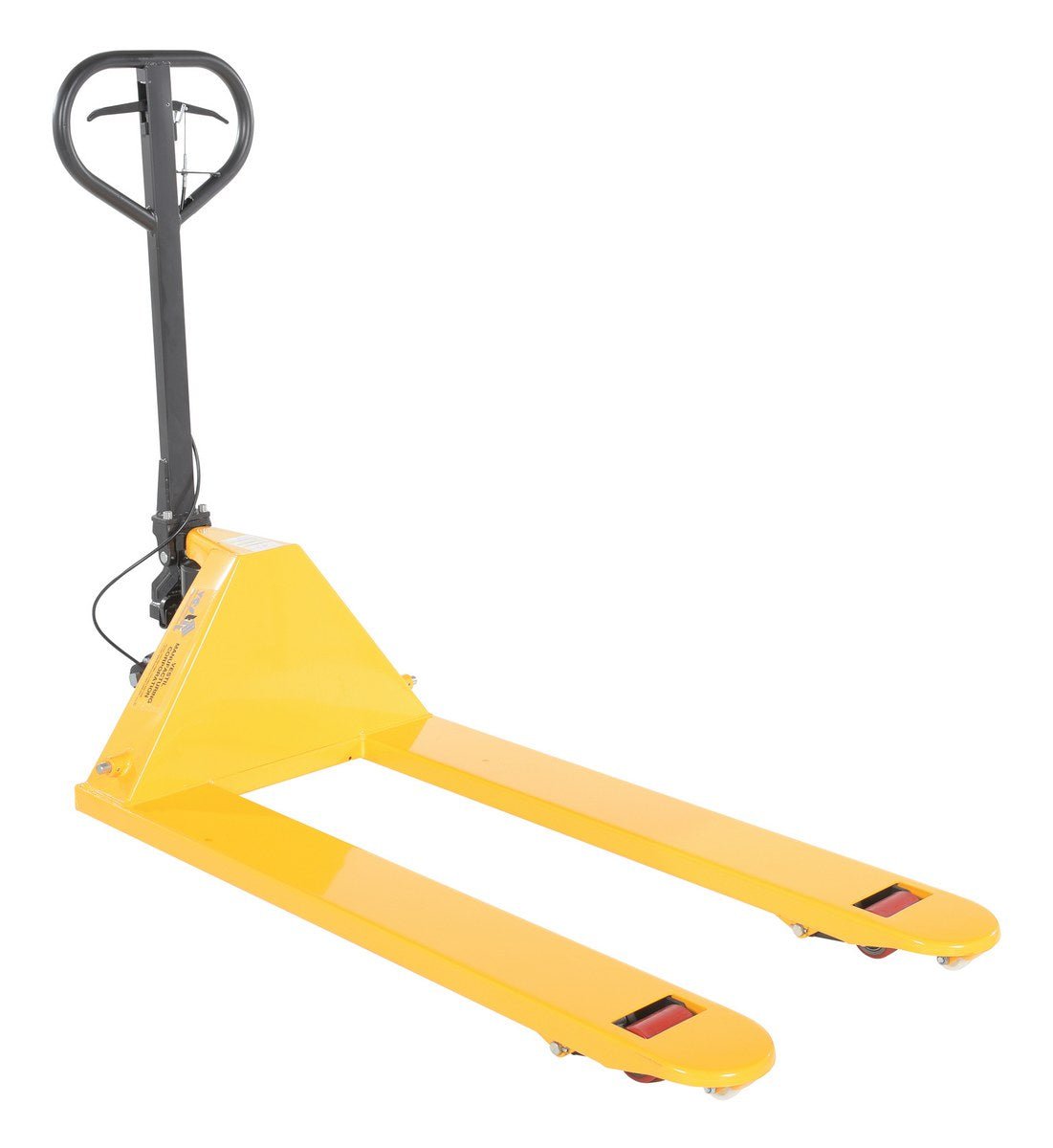

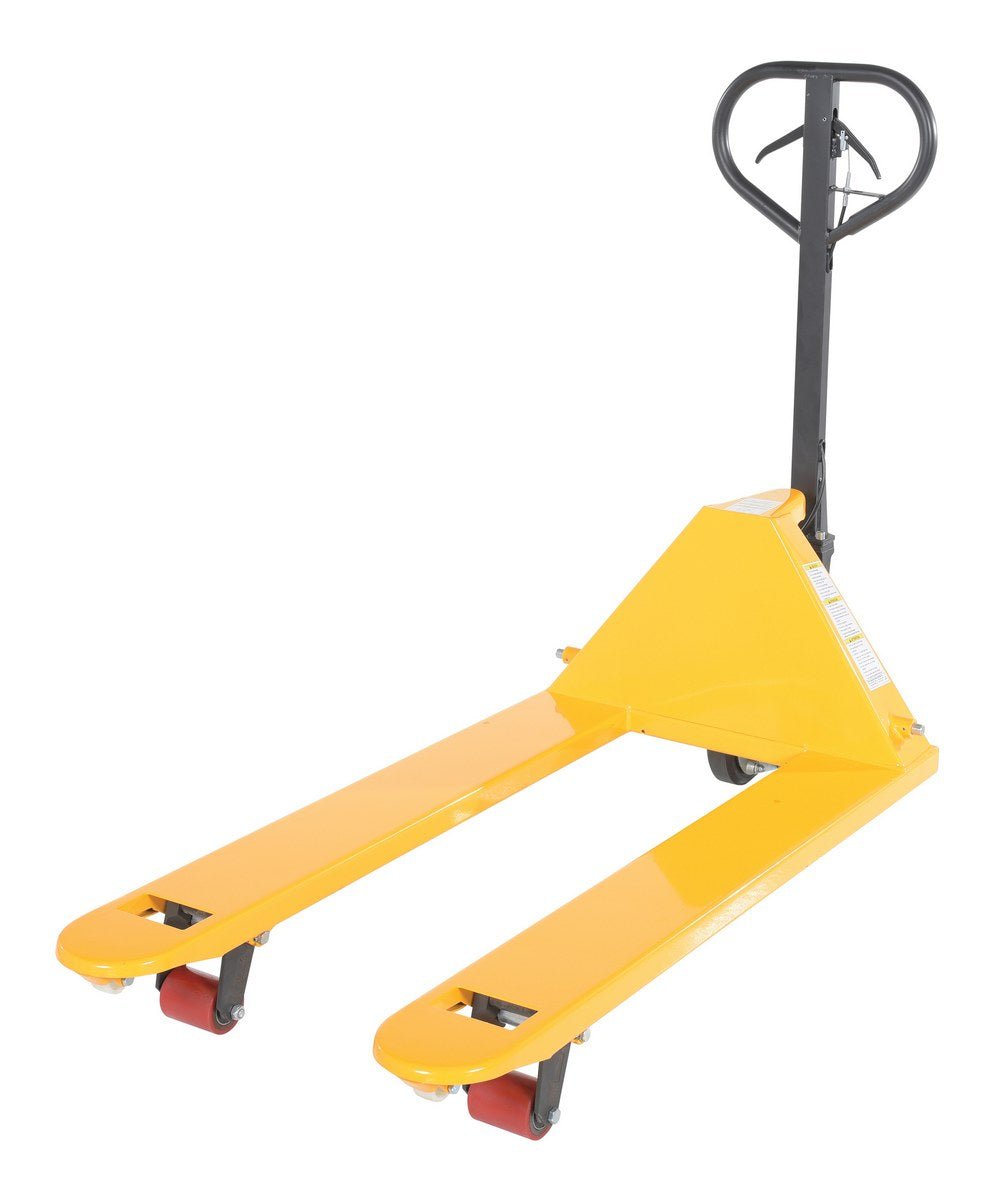

Pallet Truck with Hand Brake, model PM5-2748-HB, allows you to depress the hand brake to slow down or stop truck.

The "Dead Man" Hand Brake Pallet Truck, model PM5-2748-DMHB, only moves when you depress the hand brake. Retrofit kit not available. Individual fork width is 7".

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Pallet Jack with Hand Brake
Model Image PDF's Capacity
Fork Dim.
PM5-2748-HB Compliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 223
PM5-2748-DMHB icon_approvaldrawings.jpgCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 221
