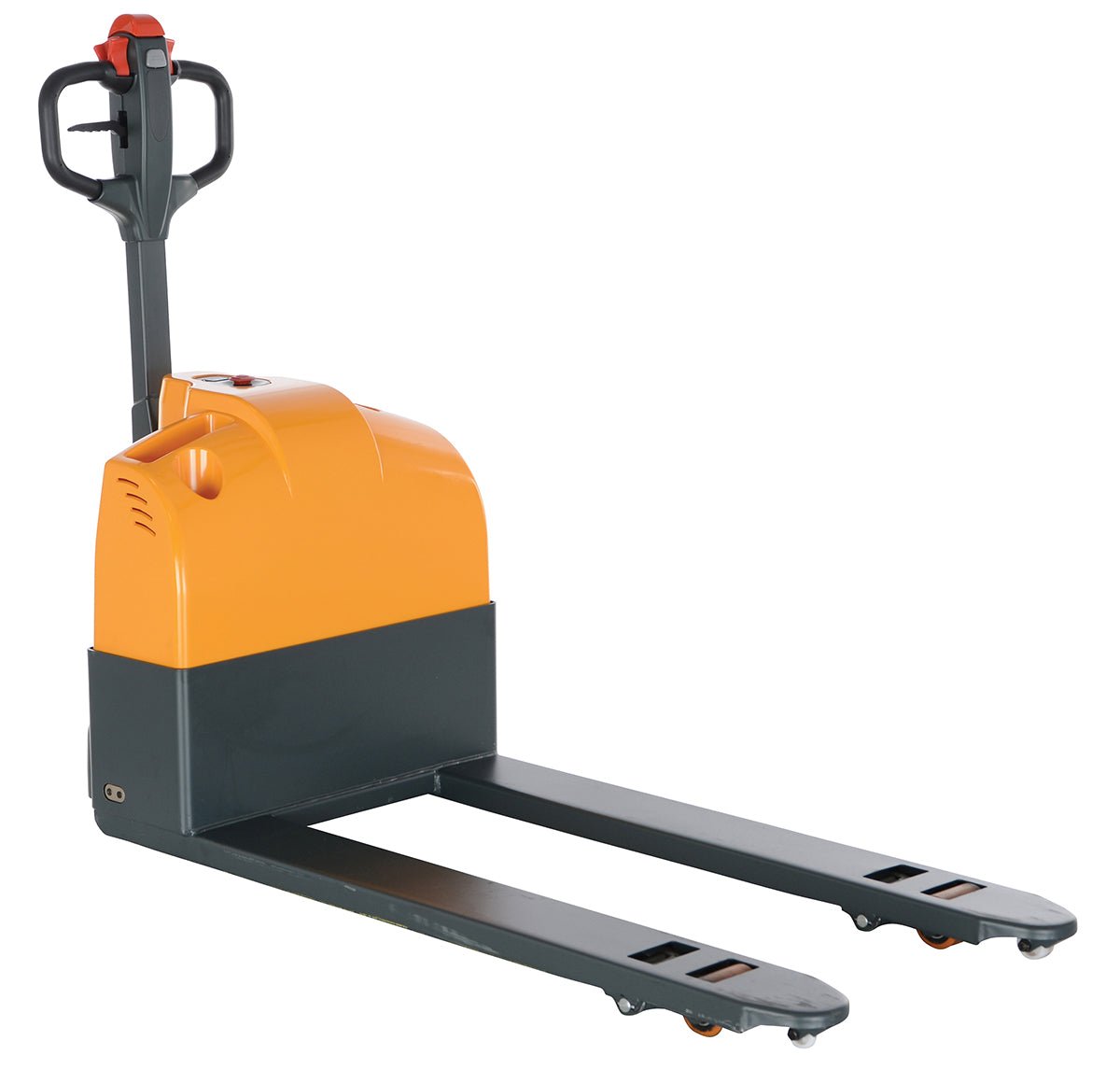

Semi-Electric design provides functional benefits and lower costs. Forks are raised manually like a standard pallet truck.
Battery-powered DC traction-drive system for effortlessly moving heavy loads. Handle includes forward/reverse throttle control levers and emergency stop button. Features: two (2) 12V batteries, battery charge level gauge, and on-board battery charger. Travel speed when loaded is 1.7 mph / unloaded 1.8 mph. Maximum grade is 5 percent.
- DC traction-drive system effortlessly moves heavy loads
- Ergonomic handle includes forward/reverse throttle control levers
- Emergency stop button on handle improves worker safety
- Battery level gauge signals battery life
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Semi-Electric Pallet Truck | |||||||
Model | Image | PDF's | Overall Size (WxLxH) |
Uniform Capacity (lbs) |
Fork Size (WxL) |
Service Range |
Wt. (lbs) |
EPT-S-2748-33 | 28"x65-3/4"x49-1/4" | 3,300 | 27"x48" | 3.2"to 7.8" | 466 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
