Proven ergonomic design has been time-tested for providing years of reliable usable. An economical way for one person to move heavy pallet loads without the use of a fork truck.

Ships with the Handle Detached Standard

  • Economical
  • Powder Coat Finish
  • Quality Built
  • User Friendly
  • Low Maintenance

Ergonomic design requires only 75 lbs. of pulling force when fully loaded. Spring loaded loop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. Individual fork width is 7".

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

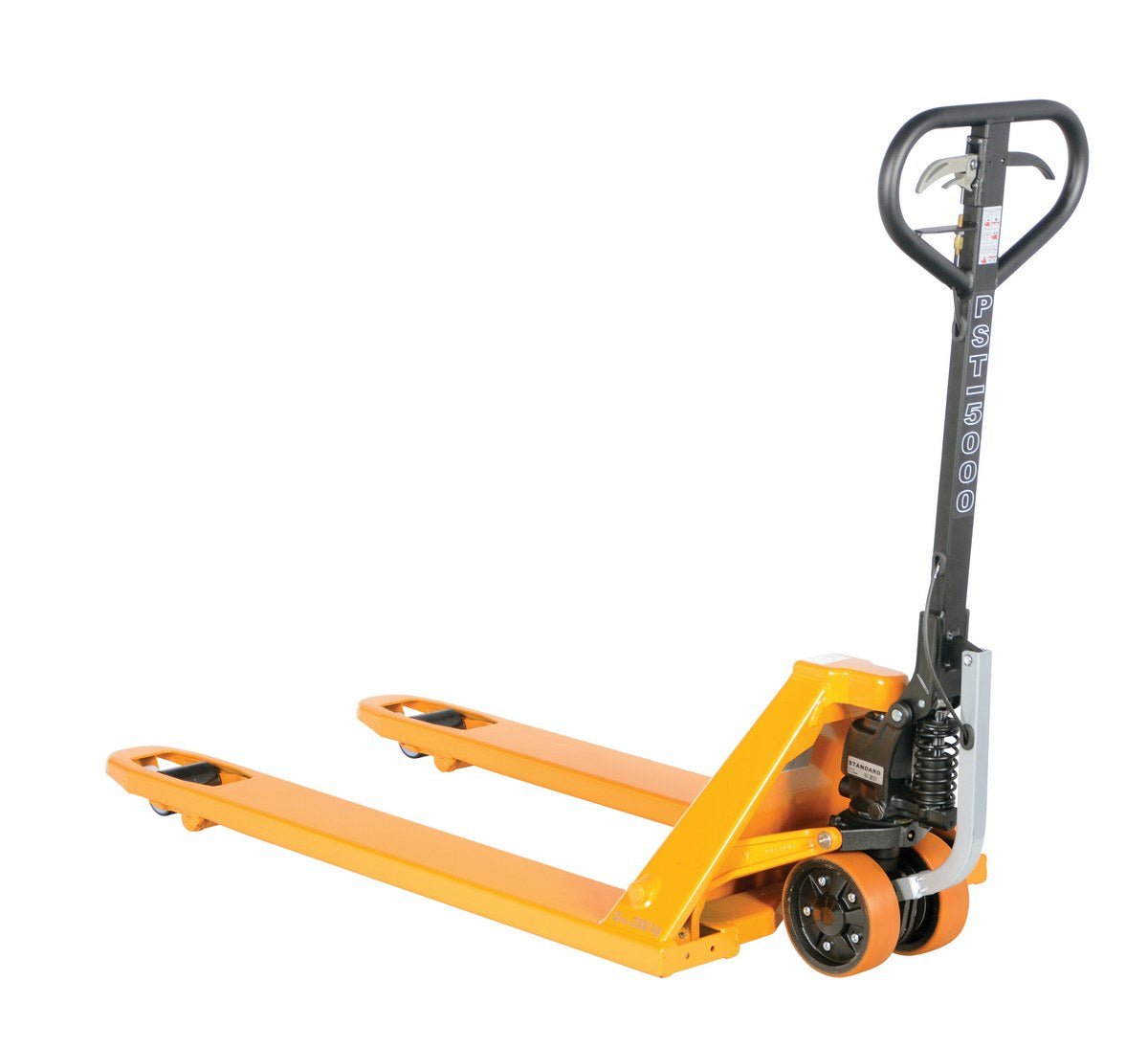

Economy Pallet Truck
Model Number Image PDF's Description Capacity
Fork Dim.
Wt. (lbs)
PM5-2748-Y icon_approvaldrawings.jpg Pallet Truck 5,500 27"Wx48"L 2-7/8"-7-3/4" 216
PM5-2748-Y-6PKG icon_approvaldrawings.jpg Pallet Truck 5,500 27"Wx48"L 2-7/8"-7-3/4" 1092

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
