Universal Trash Can Dumpers

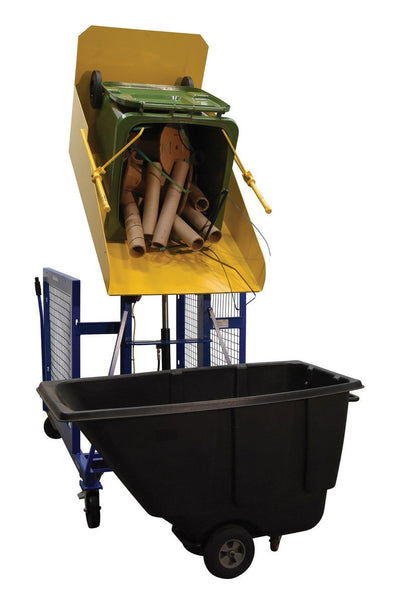

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes

The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

Universal Trash Can Dumpers
Model	Image	PDFs	Operation	Max. Dump Angle	Max. Dump Height	Uniform Capacity (lbs.)	Wt. (lbs.)
TCD-U-48-AC			AC Powered	135 degrees	48-9/16"	400	790
TCD-U-48-DC			DC Powered	135 degrees	48-9/16"	400	891
TCD-U-60-AC			AC Powered	135 degrees	59-13/16"	400	877
TCD-U-60-DC			DC Powered	135 degrees	59-13/16"	400	992
TCD-U-72-AC			AC Powered	135 degrees	72-15/16"	400	991
TCD-U-72-DC			DC Powered	135 degrees	72-15/16"	400	1099

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
