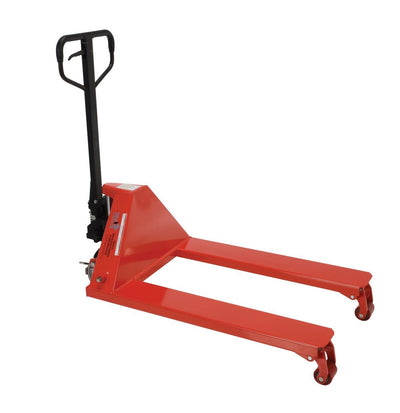

The Wheel Nose Pallet Truck is designed to position pallets or skids closely together.

The fork end is set back from the front rollers allowing for one pallet pick up at a time. The unit has a rubber grip handle with a three position lever for easy operation and maneuvering. This heavy-duty unit is rated at 5,000 pounds capacity and has a service range from 3-1/2" to 8". Units include two articulating steering wheels and two front load rollers. Spring loaded loop handle automatically returns to vertical position when not in use. 6-1/2"W x 38"L forks are used for maneuvering in tight spaces.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Wheel Nose Pallet Truck
Model Image PDF's Description Capacity
Fork Dim. Service

icon_approvaldrawings.jpgCompliance Certificate Wheel Nose 5,000 27"Wx38"L 3-1/2"-8" 184

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
